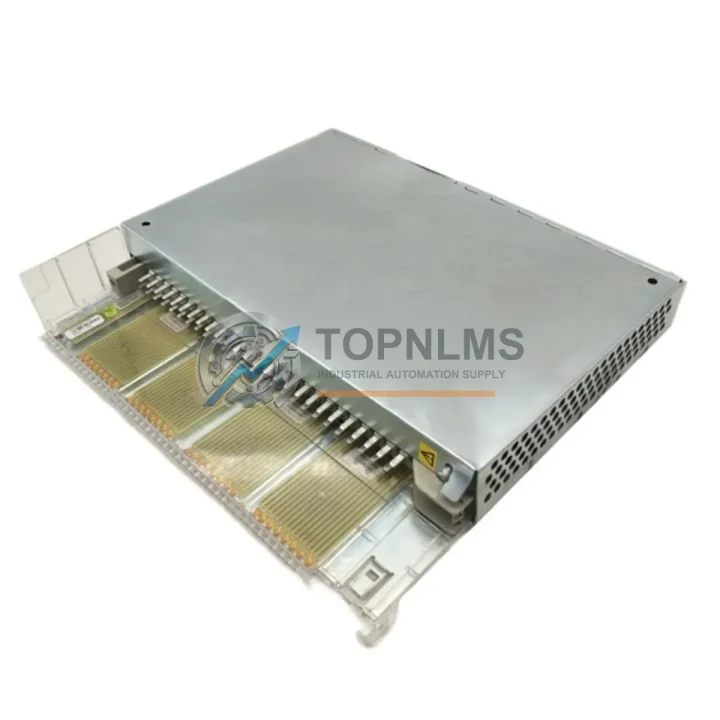

ABB DO630 3BHT300007R1 Original Industrial Spare S800 Compatible

Product Overview

ABB DO630 3BHT300007R1 Original Industrial Spare S800 Compatible: System Stability & Industrial Spare Maintenance Value

The ABB DO630 3BHT300007R1 is an original digital output module designed for ABB’s S800 I/O system, widely deployed in AC800M DCS architectures across power generation, oil & gas, chemical processing, pulp & paper, and heavy manufacturing facilities. As a 16-channel 24 VDC digital output module, the DO630 provides reliable field-side switching for actuators, solenoid valves, motor starters, and signal lamps — making it a mission-critical component in any ABB-based control cabinet.

Sourcing an original DO630 3BHT300007R1 spare is one of the most effective steps a maintenance team can take to protect system uptime. When a digital output channel fails, the downstream consequences can cascade rapidly: actuators freeze, interlocks trip, and production halts. Having a verified, tested replacement on the shelf eliminates the lead-time risk that turns a two-hour repair into a two-week procurement crisis.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance window for an AC800M-based control system is the ideal time to audit the entire S800 I/O rack — not just the module that triggered the work order. The DO630 3BHT300007R1 sits within a broader ecosystem of interdependent components, and a failure in any one of them can mask or amplify faults in adjacent modules.

During a cabinet inspection, technicians should simultaneously verify the condition of the AI830A analog input module and AO820 analog output module, which share the same Modulebus backplane and are subject to the same thermal and vibration stresses as the DO630. If the DO630 shows intermittent channel faults, the DI810 or DI830A digital input modules in the same rack should be tested in parallel — cross-channel noise or ground loops often affect both input and output modules simultaneously.

The TB820V2 Modulebus Modem (or its predecessor TB820) is the communication backbone connecting the S800 I/O cluster to the AC800M controller. A degraded TB820V2 can cause sporadic DO630 output errors that are misdiagnosed as module failures. Always confirm Modulebus integrity before condemning a DO630. Similarly, the SD821 or SD822 power supply modules feeding the I/O cluster should be load-tested — undervoltage conditions are a leading cause of premature digital output module wear.

For facilities running legacy AC800M systems with PM860 or PM861 controller modules, it is prudent to maintain at least one cold-spare controller alongside the DO630 spare. Controller and I/O module failures often co-occur during power transients or lightning events. Rounding out the spare kit with a CI854A PROFIBUS DP communication interface or CI855 ModbusTCP interface — depending on your fieldbus topology — ensures that a single-event failure does not strand the entire control network.

Facilities with extensive field wiring should also inspect MTU212 or MTU216 ModuleTerm Units during the same maintenance cycle. These terminal units carry the physical I/O wiring connections for the DO630 and are subject to terminal loosening, corrosion, and insulation degradation over time. A loose terminal on an MTU is electrically indistinguishable from a failed DO630 output channel and is a common source of misdiagnosis.

Strategic Replacement Solutions

The ABB DO630 3BHT300007R1 is a direct, plug-compatible replacement for earlier S800 digital output variants used in AC800M systems commissioned from the late 1990s onward. It slots into the same MTU footprint, uses the same Modulebus addressing, and requires no firmware reconfiguration in the AC800M controller — making it the lowest-risk replacement path for aging DCS infrastructure.

For plants operating under a lifecycle extension program — where full DCS migration is deferred by 5–10 years — maintaining a buffer stock of DO630 modules is a cost-effective alternative to emergency procurement. Emergency sourcing of obsolete or long-lead ABB S800 modules can carry 8–16 week lead times and significant price premiums. A pre-positioned spare, tested and shelf-ready, converts an unplanned outage into a planned 30-minute swap.

The DO630 also supports hot-swap replacement in most AC800M configurations, allowing field technicians to replace a faulty module without shutting down the controller or adjacent I/O — a critical advantage in continuous-process industries where even a brief control interruption carries safety and production implications. All units supplied by TOPNLMS are tested under simulated load conditions prior to shipment, with full channel verification documented.

Support FAQ

Q1: Is the DO630 3BHT300007R1 compatible with all AC800M controller versions?
Yes. The DO630 is compatible with all AC800M controller generations including PM860, PM861, PM864, and PM866, provided the S800 I/O Modulebus firmware is at a supported revision. TOPNLMS can advise on firmware compatibility based on your system’s controller version upon request.

Q2: What testing is performed before shipment?
Every DO630 3BHT300007R1 unit is powered up and subjected to full 16-channel output verification under 24 VDC load conditions. Diagnostic LED status, channel switching response, and Modulebus communication handshake are all confirmed before the unit is packaged. A test report is available upon request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q4: How should I manage DO630 spare inventory for a large AC800M installation?
For installations with 10 or more DO630 modules in service, a minimum buffer of 2 cold spares is recommended. For critical continuous-process applications (power, refining, chemicals), a 10–15% spare ratio is industry best practice. TOPNLMS offers volume pricing for spare kit procurement — contact us to discuss a tailored inventory strategy for your site.
