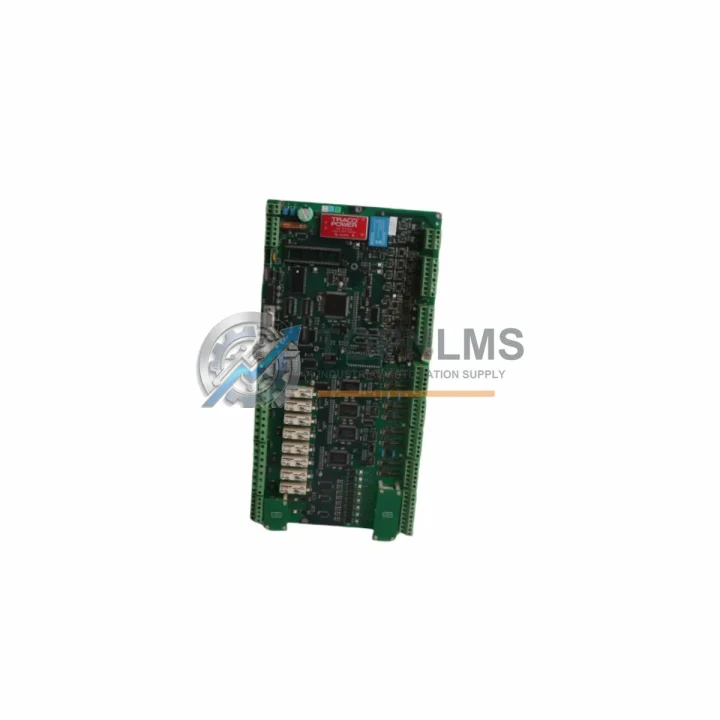

ABB DATX111 3ASC25H224 Ruggedized Thyristor Drive Control Module

Product Overview

ABB DATX111 3ASC25H224 Ruggedized Thyristor Drive Control Module for Harsh Industrial Environments

The ABB DATX111 3ASC25H224 is a precision-engineered thyristor drive control board (firing card) designed for the ABB DCS800 series DC drive platform — one of the most widely deployed DC drive architectures in heavy industry worldwide. Built to ABB’s exacting standards for industrial resilience, this firing card governs the gate pulse generation and phase-angle control of the thyristor bridge, directly determining the accuracy, stability, and safety of DC motor speed and torque regulation across demanding production environments.

In continuous-process industries — including steel rolling mills, mining hoists, paper machine drives, cement kilns, and chemical plant extruders — the firing card is the nerve center of the DC drive system. Any degradation in its timing accuracy or signal integrity translates immediately into motor instability, process deviation, or unplanned downtime. The DATX111 3ASC25H224 addresses this with robust onboard signal conditioning, isolated gate drive outputs, and a design architecture that maintains synchronization accuracy even under severe electrical noise, voltage transients, and ambient temperature fluctuations.

Rugged Specifications Table

Comprehensive Protection Solutions for DC Drive Systems

The DATX111 3ASC25H224 does not operate in isolation — it is the firing intelligence at the heart of a broader ABB DCS800 drive system, and its reliability depends on the integrity of every component in the control chain. In a properly configured DC drive cabinet, the firing card works in close coordination with the ABB SDCS-CON-4 main control board, which handles speed and current regulation loops, and the ABB SDCS-POW-4 power supply board, which provides the stabilized low-voltage rails that the firing card requires for consistent gate pulse generation.

On the field side, the DATX111 interfaces with the thyristor stack through dedicated gate-cathode connections. In high-power applications, the thyristor modules themselves — such as the ABB 5STP 18F2800 or equivalent press-pack thyristors — must be matched to the firing card’s pulse characteristics to ensure reliable turn-on under all load conditions, including cold-start inrush and regenerative braking transients.

For installations in environments with significant electromagnetic interference — common in arc furnace facilities, induction heating lines, and variable-speed pump stations — the DCS800 system is typically supplemented with ABB RDCO-03 DDCS communication adapters for fiber-optic isolation of the control bus, effectively eliminating ground-loop noise paths that could corrupt firing synchronization signals. Similarly, the ABB RAIO-01 analog I/O extension module and RDIO-01 digital I/O module are frequently deployed alongside the DATX111 to expand the drive’s process interface capability without compromising the integrity of the core firing control loop.

In multi-drive systems — such as tandem rolling mill stands or multi-motor paper machine sections — the DATX111-equipped DCS800 drives are coordinated through the ABB AC800M controller or via PROFIBUS-DP fieldbus links, with the RPBA-01 PROFIBUS adapter providing the protocol bridge between the drive and the plant DCS. This architecture ensures that firing commands remain synchronized across all drive axes, preventing speed mismatch and mechanical stress on coupled machinery.

For safety-critical applications requiring SIL-rated protection, the DCS800 platform supports integration with ABB FSPS-21 safety function modules, which implement Safe Torque Off (STO) and Safe Stop functions in compliance with IEC 62061 and ISO 13849. The DATX111 firing card’s gate inhibit input is the hardware interface point for these safety functions, making its reliable operation a prerequisite for the entire safety chain.

Application in Critical Infrastructure

The ABB DATX111 3ASC25H224 has established a proven service record across the most demanding sectors of global heavy industry. In steel and metals processing, DCS800 drives equipped with this firing card control the main mill motors on hot strip mills, cold rolling tandem mills, and wire rod blocks — applications where firing accuracy directly determines strip thickness tolerance and surface quality. A misfiring event in this context does not merely cause a process upset; it can result in cobble formation, equipment damage, and significant production loss.

In mining and mineral processing, the DATX111 is found in hoist drive systems, conveyor belt drives, and ball mill drives — all characterized by high inertia loads, frequent reversals, and exposure to dust, vibration, and wide ambient temperature swings. The firing card’s robust design ensures that gate pulse timing remains accurate even as the surrounding environment degrades over years of continuous operation.

In oil and gas facilities and petrochemical plants, DC drives with DATX111 firing cards are used in pump drives, compressor drives, and extruder drives where process continuity is paramount. Unplanned drive downtime in these environments carries not only production cost but also safety implications, making the availability of tested, warranted spare firing cards a critical element of the plant’s maintenance strategy.

Power generation and water treatment facilities rely on DCS800 drives for excitation control, cooling water pump drives, and sluice gate actuators. In these applications, the DATX111’s ability to maintain stable firing under fluctuating supply frequency and voltage conditions — common in islanded or weak-grid installations — is a key performance differentiator.

In paper and pulp mills, the firing card governs the speed of individual drive sections across the paper machine, where section-to-section speed matching must be maintained to within fractions of a percent to prevent web breaks. The DATX111’s phase-angle resolution and synchronization stability make it well-suited to this precision-demanding application.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the DATX111 3ASC25H224 fails to perform its specified firing control function within the warranty period, TOPNLMS will provide a replacement unit or full refund at no additional cost. Warranty claims are processed upon receipt of the returned unit and confirmation of the failure mode. Units showing evidence of physical damage from improper installation, overvoltage events beyond rated limits, or unauthorized modification are excluded from warranty coverage.

Q2: How is each unit tested before shipment?
Every DATX111 3ASC25H224 unit dispatched by TOPNLMS undergoes a pre-shipment functional verification process. This includes visual inspection for component integrity, power-on testing to confirm correct operation of onboard logic and power supply rails, and where applicable, dynamic testing of gate pulse outputs using a drive simulator or equivalent test bench. Units that do not pass all test criteria are quarantined and not offered for sale. A test record is available upon request for customers with specific quality documentation requirements.

Q3: Is this firing card compatible with all DCS800 drive variants and power ratings?
The DATX111 3ASC25H224 is designed for use within the ABB DCS800 drive family. Compatibility with a specific DCS800 variant depends on the drive’s hardware revision and the firmware version of the main control board (SDCS-CON-4). TOPNLMS recommends that customers confirm the target drive’s hardware revision before ordering. Our technical team can assist with compatibility verification based on the drive’s nameplate data and existing board configuration. Cross-referencing with ABB’s DCS800 hardware manual (3ADW000379) is also advised.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains a dedicated inventory of ABB DCS800 series spare parts, including the DATX111 3ASC25H224, to support both planned maintenance programs and emergency breakdown situations. For customers operating multiple DCS800 drives, we recommend establishing a consignment or framework supply agreement to ensure guaranteed availability. Emergency orders received before 14:00 CST are typically dispatched the same business day via express courier. For large-volume or long-term supply requirements, please contact our technical sales team directly to discuss pricing, lead times, and quality documentation packages.
