ABB CMA125 3DDE300405 Original Industrial Spare UNITROL Compatible: Ensuring Generator System Stability in Critical Industrial Environments

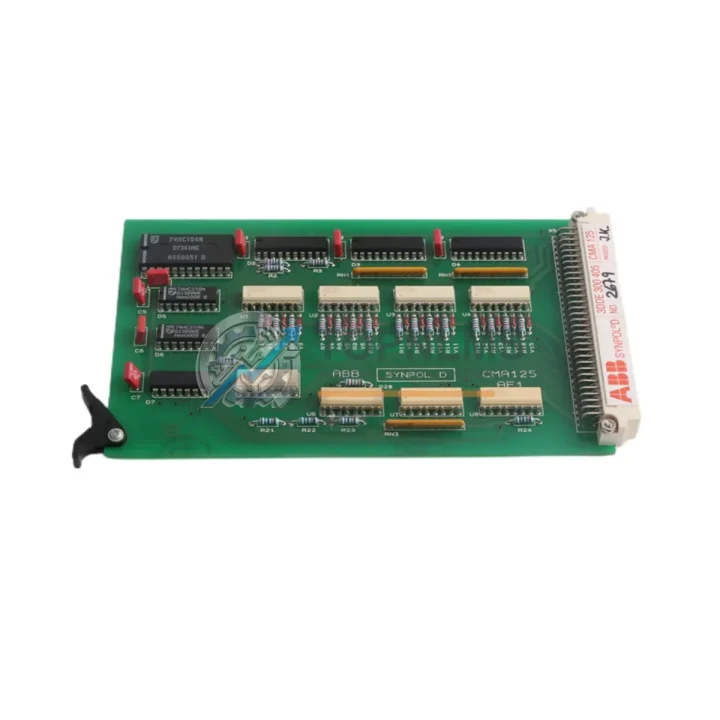

The ABB CMA125 3DDE300405 is an original excitation control card from ABB’s renowned UNITROL excitation system series, engineered for precise voltage regulation and reactive power control in synchronous generators across power plants, petrochemical facilities, steel mills, and heavy industrial installations. When a generator excitation control card fails, the consequences extend far beyond a single component — uncontrolled voltage fluctuations can cascade into transformer damage, grid instability, and unplanned production shutdowns that cost thousands per hour. Sourcing a verified original ABB CMA125 3DDE300405 is the fastest, most reliable path to restoring full generator control capability and returning your facility to stable operation.

At TOPNLMS, every CMA125 3DDE300405 unit is individually inspected, function-tested, and verified against ABB’s original specifications before shipment. Our inventory is sourced directly from authorized channels, ensuring you receive a genuine ABB component — not a counterfeit or refurbished substitute — backed by a 12-month warranty.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your Generator Excitation System

A generator excitation system is only as reliable as its weakest component. When scheduling planned maintenance or responding to an unplanned outage involving the ABB CMA125 3DDE300405, experienced maintenance engineers know that inspecting the excitation control card in isolation is rarely sufficient. The UNITROL excitation cubicle is an integrated system, and degradation in one module frequently signals stress in adjacent components.

During a CMA125 replacement or inspection cycle, it is best practice to simultaneously evaluate the ABB CMT100 thyristor firing board, which works in direct coordination with the excitation control card to regulate field current. A worn or thermally stressed CMT100 can cause erratic AVR behavior even after a CMA125 replacement. Similarly, the ABB SDCS-CON-4 control board — used in related ABB drive and excitation platforms — should be checked for firmware integrity and communication faults if the excitation system shares a common control bus.

Power supply stability is another critical factor. The ABB SDCS-POW-4 power supply module feeds the control electronics within the excitation cubicle; a failing power supply can mimic excitation control card faults and lead to misdiagnosis. Always verify DC rail voltages at the cubicle backplane before condemning the CMA125. Alongside this, inspect the ABB UFC760BE101 fiber optic interface card if your UNITROL system uses fiber-based gate pulse transmission — signal degradation here directly impacts thyristor firing accuracy.

For facilities running older UNITROL installations, the ABB HESG324473R1 pulse transformer board is a commonly overlooked wear item. These boards are subject to insulation degradation over time and should be part of any 5-year overhaul plan. During the same maintenance window, verify the condition of the ABB 3BHB003154R0001 excitation transformer connections and terminal blocks — loose or corroded terminals in the field winding circuit are a leading cause of intermittent excitation faults that are difficult to trace without systematic inspection.

On the signal conditioning side, ABB AI810 analog input modules and ABB AO810 analog output modules — where the excitation system interfaces with a broader DCS or PLC platform — should be tested for drift and calibration accuracy. Signal errors at the DCS interface can produce false excitation alarms and unnecessary shutdowns. Finally, ensure that the ABB REG216 generator protection relay settings are reviewed after any excitation control card replacement, as protection thresholds may need recalibration to match the restored excitation response curve.

Maintaining a small buffer stock of these related components — particularly the CMA125 3DDE300405, CMT100, and SDCS-POW-4 — is a proven strategy for reducing mean time to repair (MTTR) in generator-critical facilities where every hour of downtime carries significant financial and operational risk.

Strategic Replacement Solutions: Extending Legacy UNITROL System Life

Many industrial facilities continue to operate ABB UNITROL excitation systems that are 15–25 years old. Full system replacement is capital-intensive, disruptive, and often unnecessary when original spare parts remain available. The ABB CMA125 3DDE300405 is a direct, plug-compatible replacement for failed or degraded excitation control cards in UNITROL 1000 and UNITROL 5000 installations, requiring no firmware changes, no rewiring, and no recalibration of the AVR setpoints in most standard configurations.

This drop-in compatibility dramatically reduces replacement time — a trained technician can complete a CMA125 swap in under two hours, compared to days or weeks required for a full excitation system upgrade. For facilities under production pressure, this speed advantage is decisive. The original ABB design also ensures that all protection interlocks, reactive power droop settings, and power system stabilizer (PSS) functions operate exactly as commissioned, preserving grid compliance and insurance certification requirements.

For sites managing multiple generator sets, we recommend maintaining at least one CMA125 3DDE300405 as a cold standby spare per excitation cubicle. This inventory posture, combined with periodic functional testing of the standby unit, provides the highest level of protection against extended outages caused by excitation system failures.
