ABB 5STP33L2800MDKIT Replacement for 5STP Series

Product Overview

ABB 5STP33L2800MDKIT Replacement & Upgrade Solution for 5STP Series: Seamless Transition from Legacy Thyristor Systems

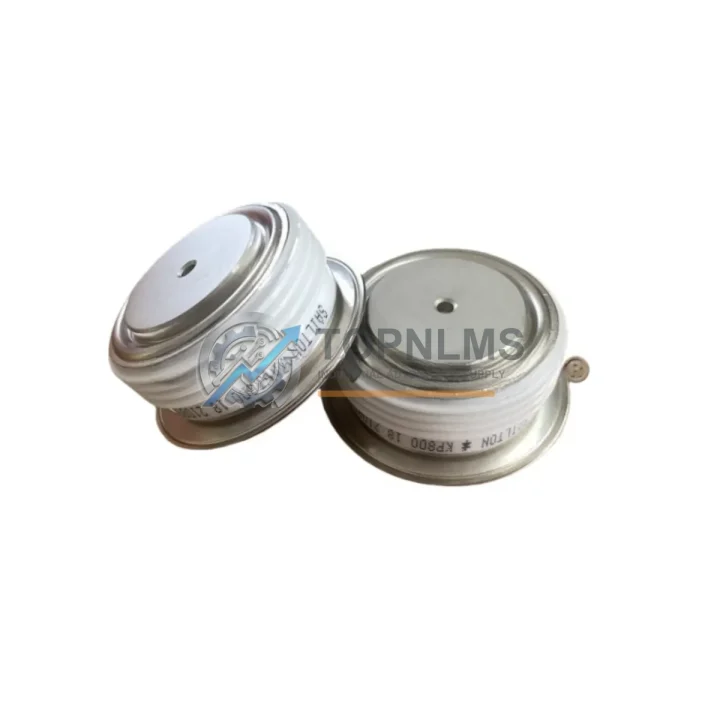

The ABB 5STP33L2800MDKIT is a press-pack thyristor module kit engineered for high-power industrial drive and converter applications. As legacy ABB thyristor assemblies reach end-of-life or become increasingly difficult to source, plant engineers and procurement teams are turning to the 5STP33L2800MDKIT as a direct replacement and upgrade path for aging 5STP Series thyristor stacks. This kit is designed to minimize retrofit complexity, reduce commissioning time, and restore full drive system performance without requiring major cabinet redesign or control software rewrites.

Whether you are replacing a failed press-pack thyristor in an ABB ACS6000, ACS5000, or a legacy MEGADRIVE-LCI system, or upgrading a third-party thyristor converter that originally used equivalent press-pack devices, the 5STP33L2800MDKIT provides a mechanically and electrically compatible solution. The module’s 2800 A RMS current rating and high-voltage blocking capability make it suitable for medium-voltage drive stacks, excitation systems, and industrial rectifier bridges operating in steel mills, cement plants, marine propulsion, and oil & gas compression applications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful thyristor stack replacement involves more than swapping the press-pack device itself. During a typical 5STP33L2800MDKIT retrofit, engineers commonly address several surrounding components to ensure the upgraded stack performs reliably from day one.

The thyristor firing board — often an ABB SDCS-CON-4 or equivalent pulse transformer board — must be verified for gate pulse compatibility with the replacement device. In most 5STP Series stacks, the existing firing board requires no modification, but its gate resistor values and dV/dt snubber networks should be inspected and replaced if aged. Similarly, the RC snubber capacitors and resistors mounted across each thyristor position are frequently replaced as part of a kit installation to restore full transient suppression performance.

For systems using an ABB ACS6000 medium-voltage drive or a legacy MEGADRIVE-LCI configuration, the thyristor stack interfaces directly with the drive’s firing control unit. The ABB SDCS-PIN-48 or SDCS-PIN-51 interface board handles the synchronization signals between the control system and the thyristor bridge. These boards should be tested during the retrofit window to confirm signal integrity before the replacement stack is energized.

Water-cooled thyristor stacks require inspection of the deionized water cooling circuit, including the heat sink assemblies, O-ring seals, and flow sensors. Replacing the press-pack thyristor without servicing the cooling interface risks thermal runaway on the new device. If the system uses forced-air cooling, the cooling fan assembly and thermal sensors integrated into the drive cabinet should be verified for correct airflow direction and setpoint calibration.

On the AC line side, the line reactor or input transformer feeding the thyristor bridge should be checked for insulation integrity and tap settings appropriate for the site voltage. In multi-pulse rectifier configurations — common in 12-pulse or 24-pulse LCI drives — the inter-phase transformer (IPT) must be balanced correctly after the thyristor replacement to prevent circulating currents between parallel bridge sections.

Control system integration is equally important. If the host PLC or DCS — such as an ABB AC500 PLC or ABB Symphony Plus DCS — monitors thyristor health via analog feedback or digital status signals, the I/O mapping should be verified against the replacement kit’s signal interface. In older installations, the ABB NDIO-01 or NAIO-01 I/O extension modules may need firmware updates to correctly interpret the new device’s status outputs.

Finally, for sites performing a planned outage retrofit rather than an emergency replacement, it is advisable to simultaneously replace the gate pulse cables, clamp torque hardware, and thermal compound supplied in the MDKIT. These consumable components are included in the kit and are critical to achieving the specified thermal resistance between the press-pack device and its heat sink.

Retrofit Guidance FAQ

Q: Is the 5STP33L2800MDKIT a direct drop-in replacement for the bare 5STP33L2800 thyristor?
A: Yes. The MDKIT variant includes the press-pack thyristor device plus the associated mounting hardware, gate pulse cables, and thermal interface materials. It is dimensionally and electrically identical to the bare device and fits the same clamp stack position without busbar or enclosure modification.

Q: Do I need to reprogram the drive controller after replacing the thyristor?
A: No. The 5STP33L2800MDKIT is a power semiconductor replacement. It does not alter the control system parameters, firing angle settings, or PLC/DCS program logic. After installation and clamp torque verification, the drive can be recommissioned using the existing parameter set.

Q: Is the replacement compatible with both water-cooled and air-cooled thyristor stacks?
A: Yes. The press-pack housing is compatible with both cooling methods. For water-cooled stacks, ensure the deionized water circuit is flushed and O-ring seals are replaced before energizing the new device. For air-cooled stacks, verify fan operation and thermal sensor setpoints.

Q: What communication protocols are affected by this replacement?
A: None. The 5STP33L2800MDKIT is a power device with no embedded communication interface. Protocols such as PROFIBUS, PROFINET, Modbus, or ABB’s proprietary DDCS fiber-optic link between the drive control unit and the firing board are unaffected by the thyristor replacement.

Q: How much physical space does the replacement require in the control cabinet?
A: The replacement occupies the identical footprint as the original press-pack thyristor. No cabinet modification, busbar relocation, or additional DIN rail space is required. The MDKIT hardware fits within the existing clamp assembly.

Q: What is the recommended torque for the clamp assembly?
A: Follow the ABB 5STP Series press-pack mounting specification. The MDKIT includes a torque reference card. Incorrect clamping force is the most common cause of premature failure in press-pack thyristors — always use a calibrated torque wrench and verify the clamp force with a load cell if available.

Q: Can this kit be used in a 12-pulse or 24-pulse rectifier configuration?
A: Yes, provided the replacement is applied consistently across all thyristor positions in the affected bridge section. Mixing old and new devices within the same bridge leg is not recommended due to potential forward voltage drop mismatch.

Warranty Assurance

Every ABB 5STP33L2800MDKIT supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes outgoing inspection including visual examination, gate trigger verification, and packaging integrity check to ensure the press-pack device arrives in field-ready condition.

If a unit exhibits a manufacturing defect or fails to meet the published electrical specifications within the warranty period, TOPNLMS will arrange a replacement shipment or issue a credit at our discretion. Our after-sales response target is within 24 hours of a warranty claim submission. We maintain stock of the 5STP33L2800MDKIT to support rapid replacement dispatch, minimizing the impact of a warranty event on your production schedule.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export from Xiamen is available via DHL Express, FedEx International Priority, or sea freight consolidation depending on order volume and urgency. Lead time for in-stock units is 3–5 business days from order confirmation.

To request a quotation, confirm stock availability, or discuss technical compatibility for your specific drive system, contact our engineering sales team directly.
