ABB 560CMU04 1KGT011300R0001 Replacement for Freelance DCS: Smooth Transition, Zero Compromise

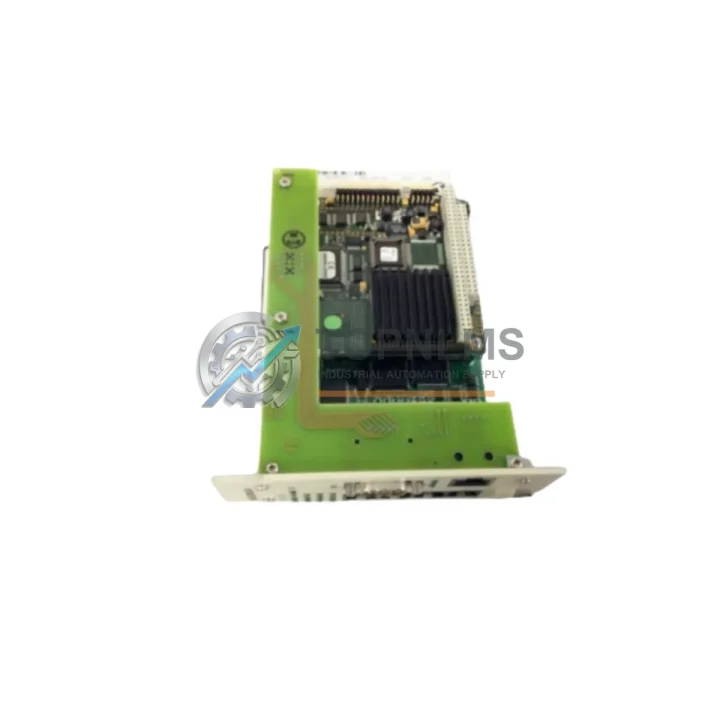

When your ABB Freelance DCS control system depends on a Central Processing Module that is no longer in active production, every day of delay carries real operational risk. The ABB 560CMU04 (order reference 1KGT011300R0001) is the core CPU module of the Freelance 560 Series distributed control system — a platform widely deployed across chemical processing, water treatment, power generation, and continuous manufacturing facilities worldwide. Whether you are replacing a failed unit, building a critical spare inventory, or executing a planned system upgrade from an earlier Freelance 500 Series architecture, sourcing a verified 560CMU04 is the first and most important step toward restoring full system integrity.

At TOPNLMS, we stock the ABB 560CMU04 as a genuine, tested unit ready for immediate dispatch. Each module undergoes functional verification before shipment, ensuring that when it arrives at your facility, it is ready for installation without additional bench testing delays. Our inventory is maintained specifically for industrial buyers who cannot afford uncertainty in their spare parts supply chain.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from an aging Freelance 500 Series or replacing a failed 560CMU04 is rarely a single-component task. A successful upgrade requires careful attention to the surrounding system architecture to ensure that the new CPU module communicates correctly with every element of the control loop — from field instruments to the operator station.

Begin with the backplane and rack infrastructure. The 560CMU04 seats into the Freelance 560 Series rack, and if you are transitioning from a Freelance 500 Series installation, you will need to verify rack compatibility or source a replacement 560 Series rack assembly. Alongside the CPU, the ABB 560ACR01 redundancy module is frequently deployed in high-availability configurations to provide hot-standby failover — a critical consideration for continuous process plants where unplanned shutdowns carry significant cost.

On the I/O side, the 560CMU04 communicates with field devices through the Freelance 560 I/O module family. Common companions include the ABB 560DIO01 digital I/O module for discrete on/off signals and the ABB 560AIO01 analog I/O module for 4–20 mA process measurements. If your existing installation uses older 500 Series I/O modules such as the ABB AC500 AI523 analog input module or the ABB AC500 DI524 digital input module, you will need to evaluate whether these can be retained via PROFIBUS-DP coupling or whether a full I/O migration to 560 Series modules is the more reliable long-term path.

Communication infrastructure is equally important. The 560CMU04 supports PROFIBUS-DP natively, and many Freelance installations rely on the ABB 560BUS01 PROFIBUS coupler to bridge field device networks. If your plant uses FOUNDATION Fieldbus or HART-enabled instruments, the ABB 560FBM01 fieldbus module provides the necessary protocol gateway without requiring changes to existing field wiring. For facilities integrating with higher-level SCADA or historian systems, the Ethernet port on the 560CMU04 connects directly to the plant network, but you should verify that your ABB System 800xA integration layer or third-party DCS interface is configured to recognize the 560 Series node address and communication parameters.

Power supply integrity is non-negotiable during a CPU migration. The ABB CP-E 24/10.0 24 VDC power supply is a common source used in Freelance panel builds, and verifying that your existing power supply can handle the combined load of the new CPU and any additional I/O modules is a standard pre-commissioning check. Terminal blocks and wiring harnesses — particularly ABB XTIO terminal modules — should also be inspected during the migration to ensure that field wiring connections remain secure and correctly labeled after the module swap.

Finally, if your facility operates an operator interface tied to the Freelance system, confirm that your ABB CP600 HMI panel or equivalent operator station is running a firmware version compatible with the 560 Series CPU. In many retrofit projects, a firmware update to the HMI is the final commissioning step before the upgraded system is handed back to operations.

Retrofit Guidance FAQ

Q1: Can the 560CMU04 replace a Freelance 500 Series CPU directly without rewiring?
In most cases, field wiring connects to I/O modules rather than directly to the CPU, so the CPU swap itself does not require rewiring. However, if you are also migrating from 500 Series I/O modules to 560 Series I/O modules, terminal block reassignment will be necessary. We recommend a full I/O mapping review before beginning the physical swap.

Q2: Is the Freelance Engineering Tool (FET) project file compatible between 500 and 560 Series CPUs?
FET projects created for the 500 Series require migration using the ABB project conversion utility before they can be downloaded to a 560CMU04. The logic structure is largely preserved, but hardware configuration sections — particularly I/O module assignments and communication parameters — must be reviewed and updated to reflect the 560 Series hardware definitions.

Q3: What communication protocols does the 560CMU04 support, and are they backward compatible with existing field devices?
The 560CMU04 supports PROFIBUS-DP and Ethernet-based communication. PROFIBUS-DP field devices from the 500 Series installation are fully compatible and do not require replacement. Ethernet-based integration with SCADA or historian systems is also supported, with the module appearing as a standard Freelance node on the plant network.

Q4: How does the 560CMU04 handle installation space constraints in an existing control cabinet?
The 560CMU04 follows the standard Freelance 560 Series form factor. Before installation, verify the available slot width in your existing rack and confirm that adjacent modules have sufficient clearance for the CPU’s ventilation requirements. In tight cabinet configurations, repositioning adjacent I/O modules or power supply units may be required to meet thermal management guidelines.

Q5: What does the 12-month warranty from TOPNLMS cover, and what is the replacement process?
Our 12-month warranty covers functional failure under normal operating conditions. Each unit is tested before shipment. If a covered fault occurs within the warranty period, we provide a replacement unit with priority dispatch. Contact us at [email protected] or +86 18359293191 to initiate a warranty claim. Response time is within one business day.

Warranty Assurance

Every ABB 560CMU04 (1KGT011300R0001) shipped by TOPNLMS is backed by a 12-month warranty covering functional performance under standard industrial operating conditions. Prior to dispatch, each unit undergoes a structured functional verification process to confirm that the module powers on correctly, communication interfaces are active, and no physical damage is present.

Should a warranty claim arise, our after-sales team responds within one business day. We provide a direct replacement unit with priority shipping to minimize your system downtime. All warranty claims are handled through our dedicated technical support channel — no third-party intermediaries, no extended wait times.

For procurement teams managing critical spare inventories, we also offer multi-unit sourcing with consolidated shipping and documentation packages suitable for import compliance. Contact our sales team to discuss volume pricing, lead times, and export documentation requirements.
