ABB 07CT41 1SBP260022R1001 Replacement for AC31: Seamless Migration & Legacy System Upgrade

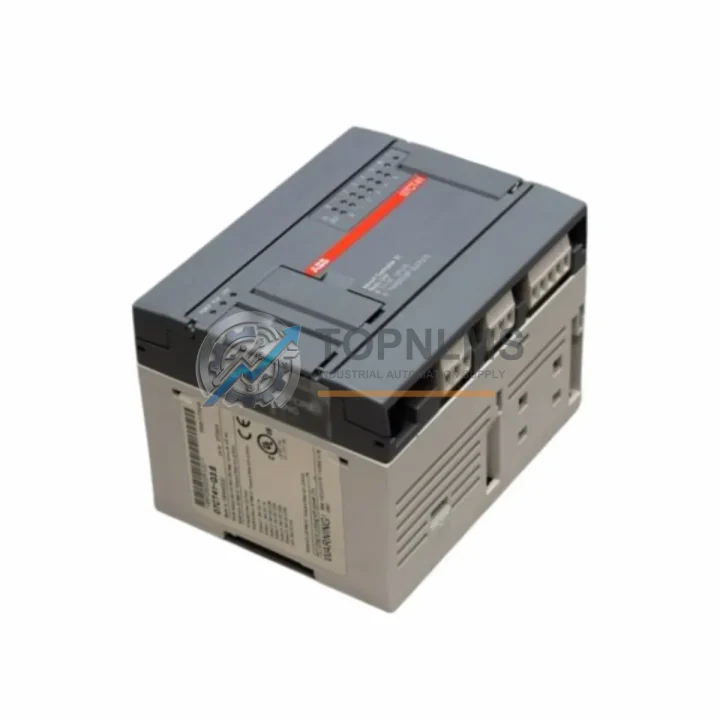

The ABB 07CT41 (Part No. 1SBP260022R1001) is a CPU module with transistor output designed for the ABB AC31 Series programmable logic controller platform. As ABB progressively phases out the AC31 product line in favor of the AC500 and AC500-S safety controller families, many plant operators and system integrators face the challenge of maintaining production continuity while planning a structured migration path. This page is dedicated to helping engineers and procurement teams source a verified replacement unit, understand the compatibility landscape, and execute a low-risk upgrade with minimal downtime.

Whether your facility is running a legacy AC31 rack-based control cabinet, a standalone 07CT41 CPU node, or a distributed I/O architecture built around the AC31 bus system, TOPNLMS stocks tested and inspected units ready for immediate dispatch from Xiamen, China, with worldwide express shipping and a 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an AC31-based control system rarely involves replacing the CPU in isolation. In practice, the 07CT41 CPU module operates within a broader ecosystem of interconnected components, and understanding how each interacts with the replacement unit is critical to achieving a smooth cutover.

On the communication side, many AC31 installations rely on the ABB 07KP90 PROFIBUS DP communication module to interface with field devices, drives, and remote I/O stations. When performing a like-for-like CPU swap, the 07KP90 can typically remain in place without reconfiguration, preserving your existing PROFIBUS network topology. For sites planning a full migration to the AC500 platform, the ABB CM572-DP PROFIBUS master/slave module provides equivalent functionality within the AC500 architecture and supports the same GSD-based device configuration workflow.

On the I/O side, the AC31 system commonly pairs the 07CT41 CPU with discrete and analog expansion modules such as the 07DI92 digital input module and the 07AI91 analog input module, both connected via the CS31 bus. These modules are retained during a direct CPU replacement. However, if the migration scope extends to the I/O layer, the AC500 SM560-S digital I/O module and SM560 standard I/O module offer a modern, IEC 61131-3-compatible alternative with improved diagnostics and hot-swap capability.

For power distribution, the existing 24 VDC DIN rail power supply feeding the AC31 rack is typically reusable without modification during a CPU swap. Sites upgrading to AC500 should verify that the PSU output current rating accommodates the AC500 CPU module’s slightly higher inrush current. ABB’s CP-E 24/5.0 power supply is a widely used companion unit in AC500 control cabinets and is available as a stocked item.

The programming and commissioning interface also changes between platforms. The AC31 07CT41 is programmed via ABB’s legacy 907 PC software over a serial RS-232 cable. Migrating to AC500 requires ABB Automation Builder software and a standard USB or Ethernet programming connection — eliminating the need for dedicated serial programming cables and adapters. During the transition period, engineers often maintain both toolchains in parallel to support mixed-platform sites.

For HMI integration, existing installations using the ABB CP600 operator panel connected via serial or PROFIBUS can continue to operate unchanged during a CPU swap. A full platform migration may present an opportunity to upgrade to the ABB CP600-eCo or CP635 touch panel, which connect via Ethernet and support modern visualization features including web-based remote access.

Finally, for installations where signal isolation is required between the PLC output and field devices — particularly in high-noise industrial environments — DIN rail signal isolators and relay output terminal modules are commonly added to the control cabinet during a retrofit. These components protect the CPU transistor outputs from inductive load spikes and simplify wiring changes during the migration phase.

Retrofit Guidance FAQ

Q: Can I swap the 07CT41 CPU without rewiring the I/O terminals?
A: Yes, for a like-for-like replacement using the same SKU (07CT41 / 1SBP260022R1001), the I/O wiring, terminal blocks, and CS31 bus connections remain unchanged. No field wiring modifications are required.

Q: Do I need to reload the application program after replacing the CPU?
A: Yes. The application program must be downloaded to the new CPU via the programming port using ABB 907 PC software. Retain a backup of your existing project file before the swap. If the original program file is unavailable, TOPNLMS can advise on recovery options.

Q: Is the 07CT41 compatible with PROFIBUS DP networks?
A: The 07CT41 CPU itself does not include a native PROFIBUS interface. PROFIBUS DP connectivity is provided by the companion 07KP90 communication module installed in the same AC31 rack. This module is unaffected by a CPU replacement and continues to operate normally.

Q: What is the physical footprint of the 07CT41, and will it fit in my existing cabinet?
A: The 07CT41 occupies a standard AC31 backplane slot and mounts on a DIN rail within the control cabinet. No additional panel space is required for a direct replacement. The module dimensions and mounting pitch are identical to the original unit.

Q: Can the transistor outputs drive inductive loads directly?
A: Transistor outputs are suitable for resistive and small inductive loads. For larger inductive loads (contactors, solenoids), a flyback diode or relay output terminal module is recommended to protect the output stage. This is standard practice regardless of whether the unit is new or a replacement.

Q: What communication protocols does the AC31 platform support?
A: The AC31 platform natively supports the CS31 proprietary bus for I/O expansion. With the 07KP90 module, PROFIBUS DP is supported. Serial Modbus RTU is available via the CPU’s RS-232/RS-485 port depending on firmware version. For Modbus TCP or EtherNet/IP, a full migration to the AC500 platform is required.

Q: How long does commissioning take after a CPU swap?
A: For a direct like-for-like replacement with an existing program backup, commissioning typically takes 1–4 hours including program download, I/O verification, and functional testing. A full AC31-to-AC500 migration with program re-engineering should be planned as a scheduled maintenance window.

Warranty Assurance

Every ABB 07CT41 (1SBP260022R1001) unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Our pre-shipment inspection process includes power-on functional testing, output channel verification, communication port integrity checks, and visual inspection for physical damage or counterfeit indicators.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit — not a repair — to minimize your downtime. Our after-sales response target is within 24 hours of a confirmed warranty claim submission. Replacement units are dispatched via express courier with tracking.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices upon request. Bulk orders and long-term supply agreements for MRO (Maintenance, Repair & Operations) inventory are supported with priority allocation and reserved stock arrangements.

Contact our technical sales team to confirm stock availability, request a quotation, or discuss your migration project requirements before placing an order.
