ABB 3HAC069655-001 Replacement for IRB 6600 Series

Product Overview

ABB 3HAC069655-001 Replacement for IRB 6600 Series: Smooth Transition & Legacy System Upgrade

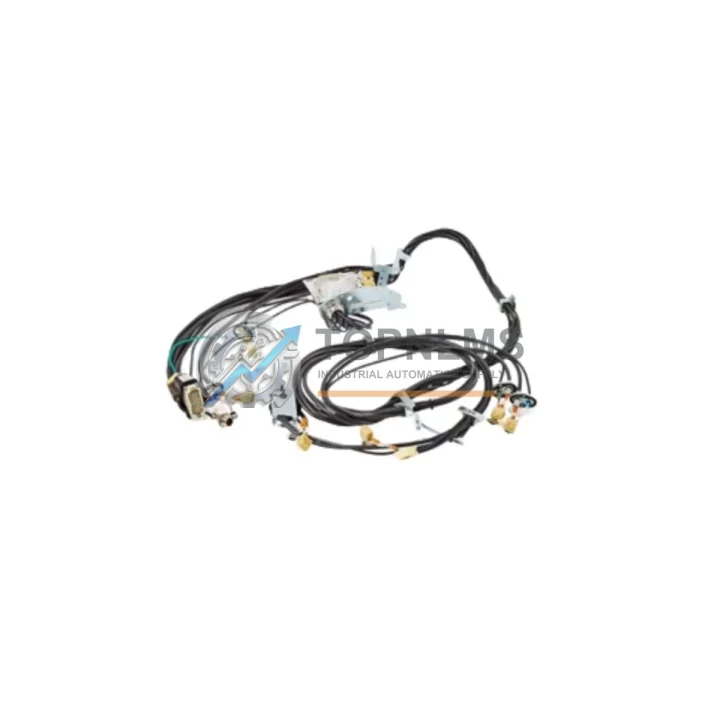

The ABB 3HAC069655-001 is the OEM-specification manipulator cable harness covering axes 1–6 for the ABB IRB 6600 series industrial robot. When your existing harness reaches end-of-life — through insulation fatigue, connector wear, or mechanical damage from high-cycle motion — this direct replacement restores full robot functionality without requiring controller reprogramming, mechanical re-engineering, or rack reconfiguration.

At TOPNLMS, we stock the 3HAC069655-001 for immediate dispatch from our Xiamen warehouse, supporting maintenance teams, system integrators, and OEM rebuild programs that cannot afford extended downtime on active production lines. Whether you are replacing a worn harness on a single robot cell or standardizing spare parts across a multi-robot facility, this unit delivers a verified, wiring-compatible upgrade path with zero software changes required.

The IRB 6600 platform has been deployed globally in automotive body-in-white, foundry, and heavy material handling applications since the early 2000s. As these robots approach or exceed their original design service life, the manipulator cable harness is one of the highest-wear consumable assemblies — subject to continuous flexing, thermal cycling, and mechanical stress across all six axes. Proactive replacement of the 3HAC069655-001 before harness failure occurs is the most cost-effective strategy for avoiding unplanned production stoppages.

Compatibility Comparison Table

Seamless Upgrade Solutions

A cable harness replacement on the IRB 6600 is rarely an isolated task. In practice, maintenance engineers performing a harness swap on the manipulator arm also inspect and often replace adjacent components that share the same service interval or that were stressed by the same fault event.

When replacing the 3HAC069655-001, teams frequently address the ABB 3HAC022544-001 and 3HAC022544-008 axis computer boards simultaneously, since encoder signal degradation caused by a failing harness can corrupt axis calibration data stored on those boards. If the IRC5 controller cabinet is opened during the service window, it is also common practice to inspect the DSQC 661 or DSQC 679 main computer units for firmware currency and connector integrity.

For robots operating in high-cycle welding or material handling cells, the harness replacement is often paired with a preventive check of the Serial Measurement Board (SMB) 3HAC044168-001, which handles resolver-to-digital conversion for all six axes. A worn harness that has been intermittently shorting can introduce measurement noise that accelerates SMB wear and triggers axis calibration errors.

If your facility is migrating from an older S4C+ controller to the IRC5 M2004 or later platform, the 3HAC069655-001 harness is fully compatible with the updated drive system. During such migrations, the DSQC 508 I/O module and DSQC 652 digital I/O board are commonly upgraded in the same project phase, allowing the control cabinet to be standardized on the IRC5 architecture without requiring a new manipulator arm or harness rerouting.

Fieldbus communication modules — such as the DSQC 378B DeviceNet board or DSQC 688 EtherNet/IP adapter — are unaffected by the harness replacement, as they reside in the controller cabinet and communicate over the backplane rather than through the manipulator cable bundle. However, if your upgrade project includes a full IRC5 cabinet refresh, these modules are worth reviewing for compatibility with your plant’s PROFINET or EtherNet/IP network topology.

For facilities running multiple IRB 6600 units, TOPNLMS recommends maintaining at least one spare 3HAC069655-001 harness per robot cell. Combined with a spare calibration pendulum and the 3HAC026876-001 product manual set, this creates a self-sufficient on-site repair kit that eliminates the lead-time risk associated with emergency procurement during production recovery situations.

Retrofit Guidance FAQ

Q: Does replacing the 3HAC069655-001 require robot reprogramming?
A: No. The harness carries power and encoder signals only. RAPID programs, tool data, and work object definitions stored in the IRC5 controller are unaffected. After installation, a fine calibration check using the calibration pendulum is recommended, but the program itself does not need to be reloaded.

Q: Is the wiring pin assignment identical to the original harness?
A: Yes. The 3HAC069655-001 uses the same OEM connector housings and pin assignments as the factory-installed harness. No adapter cables or rewiring of the junction box at the base of the manipulator is required.

Q: Can this harness be used on IRB 6600-175/2.55 and IRB 6600-205/2.75 variants?
A: The 3HAC069655-001 is designed for the IRB 6600 platform. Please confirm your exact robot variant and serial number with our technical team before ordering if you are unsure of the applicable part number for your specific payload/reach configuration.

Q: What is the typical installation time?
A: Experienced ABB-certified technicians typically complete a full harness replacement on the IRB 6600 in 4–8 hours, including cable routing, connector seating, and post-installation calibration verification.

Q: Is this compatible with S4C+ controllers as well as IRC5?
A: Yes. The manipulator-side harness is controller-agnostic. The same 3HAC069655-001 part number is used regardless of whether the robot is paired with an S4C+ or IRC5 cabinet.

Q: What communication protocols are involved?
A: The harness carries resolver/encoder signals (ABB proprietary format), 24 VDC brake power, and motor power lines. It does not carry fieldbus signals (PROFIBUS, DeviceNet, EtherNet/IP), which are routed separately through the controller cabinet.

Q: How do I minimize downtime during the replacement?
A: Pre-stage the 3HAC069655-001 harness and all required tooling before the maintenance window. Document the existing cable routing with photographs before disassembly. Having a spare SMB 3HAC044168-001 and axis computer board on hand allows the team to address any secondary faults discovered during the harness swap without extending the outage.

Warranty Assurance

Every ABB 3HAC069655-001 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes visual inspection, connector integrity verification, and continuity testing across all signal and power lines to confirm it meets ABB OEM specifications.

If a unit exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will arrange replacement or refund — including return shipping coordination — with a target response time of 24 business hours from fault notification. We maintain buffer stock of the 3HAC069655-001 specifically to support rapid warranty exchanges without waiting for inbound return processing.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. Lead time for in-stock units is typically 3–7 business days to most destinations, with express options available for urgent production recovery situations. Volume pricing is available for multi-unit orders supporting fleet maintenance programs.

Contact our technical sales team to confirm stock availability, request a quotation, or discuss spare parts planning for your IRB 6600 robot fleet.
