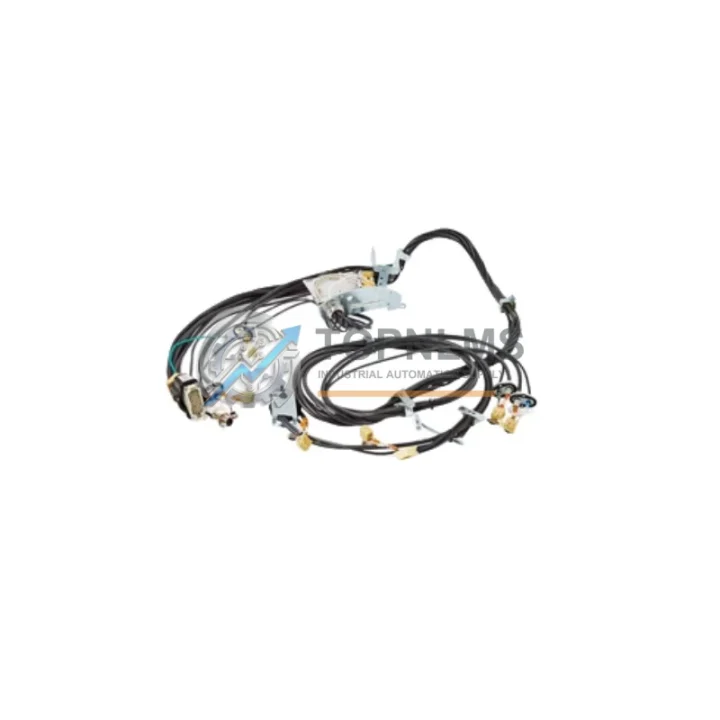

ABB 3HAC034863-005 Replacement for IRB6640 & IRB6650S: Seamless Axis 5/6 Wrist Harness Upgrade

When your ABB IRB6640 or IRB6650S robot experiences wrist harness failure on Axis 5 or Axis 6, unplanned downtime can cascade across your entire production line. The ABB 3HAC034863-005 Axis 5/6 Wrist Harness is the OEM-specified cable assembly designed to restore full robot motion, signal integrity, and power delivery to the wrist unit — enabling a direct, drop-in replacement without reprogramming or mechanical modification.

TOPNLMS stocks the 3HAC034863-005 as a ready-to-ship spare, sourced from verified ABB supply channels and tested prior to dispatch. Whether you are performing a scheduled maintenance swap, responding to an emergency cable failure, or upgrading an aging IRB6640 fleet to extend service life, this harness delivers the exact connector pinout, cable routing geometry, and shielding specification required by ABB’s IRC5 controller architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A wrist harness replacement on the IRB6640 or IRB6650S rarely occurs in isolation. During a planned maintenance window or emergency repair, technicians frequently address adjacent components to prevent repeat failures and maximize uptime. The 3HAC034863-005 is most commonly replaced alongside the ABB 3HAC026253-001 upper arm cable harness, which carries signals from the IRC5 controller through the upper arm to the wrist zone — replacing both simultaneously eliminates the risk of a secondary cable failure within weeks of the initial repair.

For robots operating in high-cycle welding or material handling environments, the ABB 3HAC17484-1 axis 5/6 motor unit and its associated resolver cable should be inspected at the same time. If the wrist harness has experienced insulation breakdown due to repeated flexing, the motor’s resolver feedback signals may have been compromised, and the ABB 3HAC026254-001 resolver cable assembly may require concurrent replacement to restore accurate position feedback to the IRC5 drive system.

Customers migrating from older IRB6640 configurations to current production specifications often pair the 3HAC034863-005 with an updated ABB 3HAC028357-001 dress pack bracket kit, which provides improved cable management geometry and reduces harness stress at the wrist pivot point. This bracket kit is particularly relevant for IRB6650S installations where the extended reach arm places additional mechanical load on the wrist cable bundle.

For facilities running multiple ABB robots on a shared IRC5 controller network, the replacement procedure typically involves the ABB DSQC679 teach pendant for jogging the robot to the maintenance position and verifying axis calibration post-installation. If the IRC5 cabinet’s DSQC663 axis computer board has logged resolver fault codes prior to the harness failure, that board should be inspected as part of the same service event to confirm the fault source was the harness and not the drive electronics.

Facilities performing a broader robot refurbishment — particularly those upgrading IRB6640 units that have exceeded 50,000 operating hours — often combine the wrist harness replacement with a 3HAC020812-001 axis 1 motor cable inspection and a full lubrication service using ABB-specified grease for the wrist gearbox. This comprehensive approach reduces total maintenance labor cost and extends the robot’s productive service life by several additional years without requiring a full robot replacement.

Retrofit Guidance FAQ

Q: Does replacing the 3HAC034863-005 require robot reprogramming?
No. The wrist harness is a passive cable assembly. Replacing it does not alter the robot’s kinematic model, tool center point (TCP), or program data stored in the IRC5 controller. After installation, a standard axis calibration check using the FlexPendant is recommended to confirm resolver offsets are within specification, but no program rewriting is required.

Q: Is the 3HAC034863-005 compatible with both standard and foundry-rated IRB6640 variants?
The 3HAC034863-005 is the standard wrist harness for the IRB6640 and IRB6650S. Foundry Plus and Foundry Plus 2 variants may use a harness with additional sealing — confirm your robot’s exact variant code from the type plate before ordering if your unit operates in a wash-down or high-contamination environment.

Q: Can this harness be installed without removing the entire upper arm?
Partial access is possible depending on the failure location. If the damage is confined to the wrist connector or the final 200 mm of the harness, a connector-level repair may be feasible. However, ABB’s recommended procedure for a full 3HAC034863-005 replacement involves routing the new harness through the upper arm housing, which requires upper arm disassembly. Follow ABB Product Manual section for Axis 5/6 cable replacement.

Q: What communication protocols are affected by wrist harness failure?
The wrist harness carries motor power and resolver/encoder signals — not fieldbus communication. DeviceNet, PROFIBUS, or EtherNet/IP signals to end-of-arm tooling travel through a separate dress pack or tool cable. A wrist harness fault will typically manifest as axis 5 or axis 6 motor fault codes (e.g., 50024, 50025) in the IRC5 event log, not as fieldbus communication errors.

Q: How long does installation typically take?
For a technician familiar with ABB IRB6640 maintenance procedures, a full wrist harness replacement typically requires 3–5 hours including disassembly, harness routing, connector seating, reassembly, and post-installation calibration verification. Having the replacement harness on-site before beginning disassembly is critical to minimizing total downtime.

Q: What if my robot model is the IRB6650S with extended reach?
The IRB6650S shares the same wrist harness specification as the IRB6640 for Axis 5/6. The extended reach configuration affects the upper arm length and dress pack routing, but the wrist harness connector interface and cable bundle specification remain identical. The 3HAC034863-005 is a confirmed fit for IRB6650S.
