ABB 3HAC028861-001 Original Spare IRB6600 Compatible

Product Overview

ABB 3HAC028861-001 Original Spare IRB6600 Compatible — System Stability & Industrial Spare Value

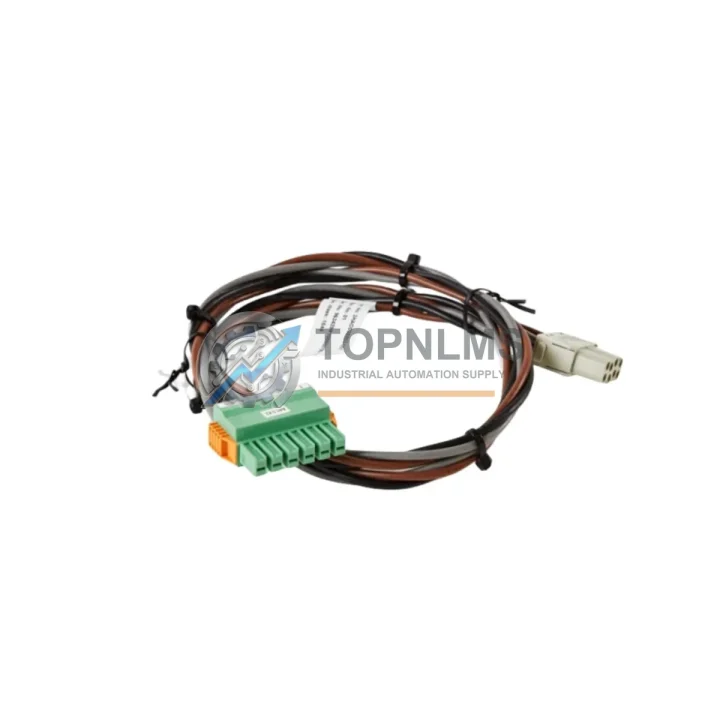

The ABB 3HAC028861-001 is an original internal cable assembly (harness drive unit) engineered specifically for the ABB IRB6600 series industrial robots. In high-cycle manufacturing environments — automotive body shops, heavy-duty material handling lines, foundry automation, and press-tending cells — the integrity of internal cable routing is a foundational element of system uptime. A degraded or failed drive unit harness is one of the most common root causes of axis fault alarms, erratic servo behavior, and unplanned production stoppages on IRB6600 platforms.

Sourced as an OEM original component, the 3HAC028861-001 meets ABB’s full manufacturing specification for conductor gauge, shielding integrity, connector pin retention, and bend-radius tolerance. It is a direct fit for IRB6600 drive unit installations and is cross-referenced with the updated part number 3HAC058803-001, ensuring backward compatibility with existing robot configurations without mechanical or electrical modification.

Every unit dispatched from our warehouse undergoes pre-shipment continuity and insulation resistance testing. Backed by a 12-month warranty, this spare is ready for immediate field installation or controlled inventory staging.

Critical Technical Specs

Preventive Maintenance Strategy

Internal cable harnesses on high-utilization IRB6600 robots are subject to continuous mechanical stress from axis rotation, vibration, and thermal cycling. Maintenance engineers conducting scheduled inspections or responding to axis fault codes should treat the 3HAC028861-001 as a priority check item — particularly on robots exceeding 20,000 operating hours or those deployed in high-temperature or high-particulate environments.

When replacing the drive unit harness, a comprehensive inspection of the surrounding electrical architecture is strongly recommended to prevent repeat failures and maximize the value of each planned maintenance window. The ABB DSQC 661 and DSQC 662 drive units that this harness interfaces with should be inspected for connector wear and thermal discoloration. The ABB 3HAC025338-001 power cable running parallel to the harness route is subject to the same bend fatigue and should be evaluated simultaneously.

The ABB DSQC 609 power supply module and DSQC 663 axis computer board within the IRC5 controller cabinet are upstream components whose health directly affects harness longevity — voltage irregularities from a degrading power supply accelerate insulation breakdown in drive cables. Inspecting the 3HAC026254-001 battery backup unit during the same maintenance visit ensures that controller memory and program retention remain intact after power cycling during the harness swap.

For robots operating in dusty or humid environments, the ABB 3HAC14550-2 sealing kit and cable entry gland assemblies should be checked for integrity to prevent contamination ingress along the harness routing path. Teams managing multi-robot cells should also audit the FlexPendant teach pendant cable (3HAC028357-001) and the SMB (Serial Measurement Board) cable 3HAC031683-001, as these are frequently overlooked during harness-focused maintenance but share the same failure modes under high-cycle conditions.

Stocking the 3HAC028861-001 alongside its successor 3HAC058803-001 as a dual-SKU buffer in your spare parts inventory eliminates sourcing delays regardless of which revision your robot’s drive unit accepts — a practical strategy for multi-unit facilities managing mixed IRB6600 fleet vintages.

Strategic Replacement Solutions

The ABB IRB6600 platform has been in active production deployment since the early 2000s, and many facilities continue to operate these robots well beyond their original design lifecycle. OEM support for aging harness assemblies becomes increasingly constrained as production runs end, making proactive spare procurement a critical risk mitigation strategy.

The 3HAC028861-001 serves as a direct replacement for worn or damaged harnesses without requiring any modification to the drive unit mounting, connector housing, or cable routing brackets. Its cross-compatibility with the 3HAC058803-001 successor part means that facilities can standardize on a single procurement line item that covers both early and late production IRB6600 variants — simplifying inventory management and reducing the risk of ordering errors during emergency maintenance.

For facilities transitioning from third-party or aftermarket cable assemblies back to OEM specification, the 3HAC028861-001 restores full electrical performance to ABB’s original design parameters, which is particularly important for maintaining servo tuning accuracy and axis repeatability on precision welding or assembly applications. Downtime during harness replacement is typically under two hours for a trained ABB-certified technician, making this one of the highest-value maintenance interventions available for extending IRB6600 service life by an additional 3–5 years.

Facilities running ABB RobotWare 5.x or 6.x should note that harness replacement does not require software reconfiguration — the robot’s axis calibration data is retained in the SMB and controller, allowing immediate return to production after mechanical installation and a standard warm-up cycle.
