ABB 3BSE019216R1 Original Industrial Spare AC 800M Compatible

Product Overview

ABB 3BSE019216R1 Original Industrial Spare AC 800M Compatible: Ensuring System Stability in Critical DCS Environments

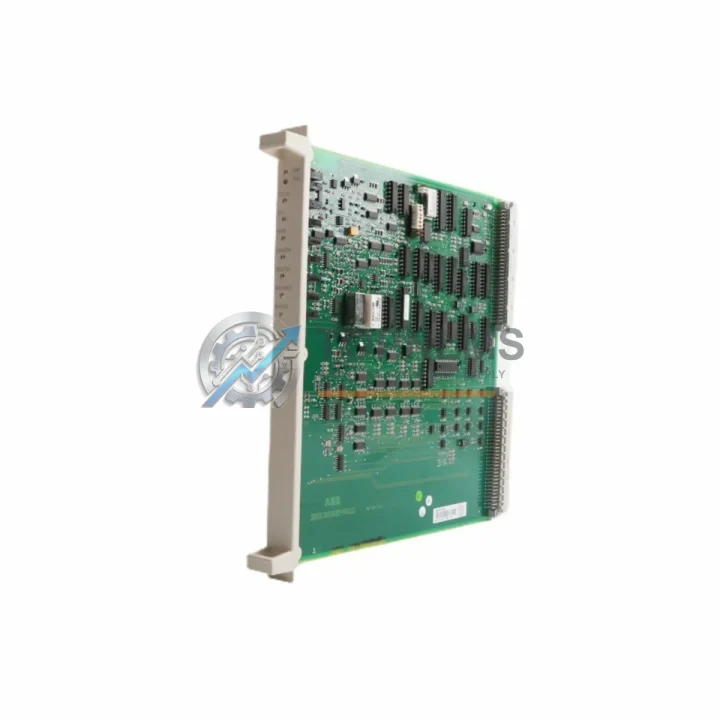

The ABB 3BSE019216R1 DSBC 176 is an original S100 I/O bus extender board engineered for the ABB AC 800M Distributed Control System platform. In process industries — including oil & gas, power generation, pulp & paper, and chemical manufacturing — the AC 800M controller backbone depends on reliable I/O bus communication to maintain real-time process control. When a bus extender board degrades or fails, the consequences extend far beyond a single I/O rack: entire process segments can go offline, triggering unplanned shutdowns that cost thousands of dollars per hour.

Stocking a verified original 3BSE019216R1 DSBC 176 as a ready-to-deploy spare is one of the most cost-effective decisions a maintenance team can make. This board extends the S100 I/O bus between controller cabinets, enabling distributed rack configurations without signal degradation. Its original ABB design ensures full electrical and firmware compatibility with the AC 800M controller family, eliminating the integration risk associated with aftermarket alternatives.

Critical Technical Specs

Preventive Maintenance Strategy for AC 800M S100 I/O Systems

A bus extender board like the DSBC 176 sits at the heart of your S100 I/O communication chain. During scheduled shutdowns or annual cabinet inspections, maintenance engineers should treat the 3BSE019216R1 as part of a broader bus integrity audit. Begin by inspecting the S100 I/O backplane connectors and bus cables for oxidation or mechanical stress — degraded connectors are a leading cause of intermittent bus faults that are difficult to diagnose under live conditions.

While the cabinet is open, it is best practice to simultaneously verify the condition of the ABB DSBC 172 (3BSE018161R1) and DSBC 174 (3BSE018290R1) bus communication boards, which work in conjunction with the DSBC 176 in extended rack configurations. A fault in any one of these boards can cascade into apparent I/O module failures, leading maintenance teams to replace expensive AI810, AO810, DI810, or DO810 S800 I/O modules unnecessarily.

Power supply integrity is equally critical. The ABB SD821 (3BSC610037R1) and SD822 (3BSC610038R1) 24 VDC power supply units feeding the S100 I/O racks should be load-tested during the same maintenance window. A power supply operating near its rated capacity under thermal stress is a common root cause of bus extender board failures that appear as random communication timeouts in the AC 800M event log.

For sites running redundant AC 800M configurations, inspect the DSBC 176 boards on both the primary and redundant I/O paths. Redundancy is only as reliable as its least-maintained component. Pair this inspection with a review of the CI854 (3BSE030220R1) PROFIBUS DP communication interface or CI857 (3BSE018168R1) INSUM communication interface if your system integrates field devices via these protocols — bus extender faults can manifest as spurious fieldbus errors that mask the true hardware root cause.

Finally, document the firmware revision of the installed DSBC 176 and cross-reference it against the AC 800M system software version running on your PM864 (3BDH000530R0001) or PM866 (3BDH000532R0001) controller modules. Firmware mismatches between bus extender boards and controller modules are a known source of intermittent I/O scan cycle anomalies in long-running AC 800M installations.

Strategic Replacement Solutions

Many AC 800M installations have been in continuous operation for 15–20 years. Over this lifecycle, the 3BSE019216R1 DSBC 176 may no longer be available through the original equipment manufacturer’s standard supply chain, making secondary-market original spares the most practical path to system continuity. Replacing a failed bus extender board with a verified original unit eliminates the need for costly system re-engineering or forced migration to a newer DCS platform before the site is operationally ready.

Unlike generic or remanufactured alternatives, an original DSBC 176 requires no firmware re-flashing, no hardware configuration changes, and no re-commissioning of connected I/O modules. Maintenance technicians can execute a hot-swap replacement during a planned outage window — typically under 30 minutes — and restore full I/O bus communication without modifying the AC 800M control application. This preserves the validated control logic and reduces the risk of introducing configuration errors during the replacement process.

For sites managing aging S100 I/O infrastructure, we recommend maintaining a minimum of one spare 3BSE019216R1 per controller cabinet that uses extended bus configurations. Combined with a documented spare parts register that includes associated bus cables, rack backplanes, and power supply modules, this strategy reduces mean time to repair (MTTR) from days to hours and significantly lowers the financial exposure of unplanned process shutdowns.

Support FAQ

Q1: Is the 3BSE019216R1 DSBC 176 compatible with all AC 800M controller variants?
The DSBC 176 is designed for the ABB AC 800M S100 I/O bus architecture and is compatible with PM851, PM856, PM860, PM861, PM864, and PM866 controller modules. For PM802F or PM810V2 variants, please confirm your system’s S100 I/O bus revision before ordering.

Q2: What testing is performed before shipment?
Each 3BSE019216R1 unit undergoes functional verification prior to dispatch, including bus communication integrity checks. Units are shipped with anti-static packaging and a test report upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this board be used as a direct field replacement without system reconfiguration?
Yes. As an original ABB spare, the DSBC 176 is a direct plug-in replacement for the existing board in the S100 I/O rack. No changes to the AC 800M control application, I/O module addressing, or fieldbus configuration are required, provided the replacement unit carries the same hardware revision.

Q4: What is the recommended spare parts stocking strategy for long-running AC 800M systems?
For systems beyond 10 years of operation, we recommend a minimum stock of one DSBC 176 per extended bus segment, alongside spares for associated power supply modules and at least one set of critical I/O modules (AI810, DI810) per process area. This inventory posture supports a target MTTR of under two hours for the most common bus-related failure modes.
