ABB 87TS01I-E GJR2368900R2550 Original Industrial Spare Advant OCS Compatible

Product Overview

ABB 87TS01I-E GJR2368900R2550 Original Industrial Spare: System Stability for Advant OCS DCS Infrastructure

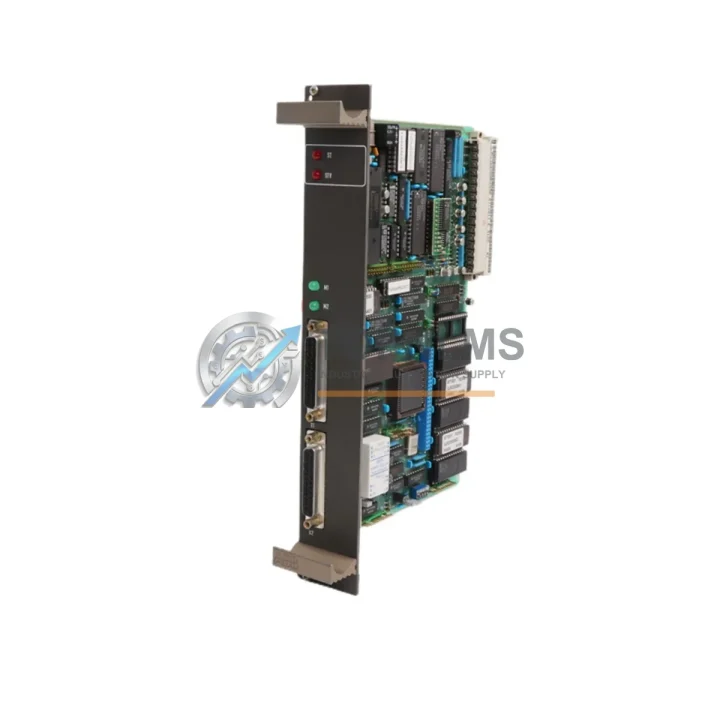

The ABB 87TS01I-E (catalog reference GJR2368900R2550) is an original DCS coupling module engineered for the Advant OCS distributed control system platform. In process-critical environments — petrochemical plants, power generation facilities, pulp and paper mills, and large-scale manufacturing lines — the integrity of the DCS backplane communication layer is non-negotiable. This coupling module serves as the physical and logical bridge between controller stations and I/O subsystems, ensuring deterministic data exchange across the Advant OCS bus architecture. Sourced from verified original production batches and manufactured in Germany, the 87TS01I-E meets ABB’s original electrical and mechanical tolerances, making it a direct, plug-compatible replacement for aging or failed units in the field.

Unplanned downtime caused by a failed coupling module can cascade rapidly across an entire DCS segment, taking multiple I/O stations offline simultaneously. Stocking a verified original spare eliminates the diagnostic ambiguity that arises when substituting non-original components, and it dramatically compresses the mean time to repair (MTTR) during emergency shutdowns. Every unit shipped from TOPNLMS undergoes functional verification and insulation resistance testing prior to dispatch, and is covered by a 12-month warranty against manufacturing defects.

Critical Technical Specs

Preventive Maintenance Strategy

A DCS coupling module does not operate in isolation. Its reliability is directly tied to the health of every component sharing the same subrack, power rail, and communication segment. When scheduling a planned shutdown or responding to an unplanned trip, maintenance engineers should treat the 87TS01I-E replacement as the starting point of a broader inspection protocol — not the end of it.

Begin with the subrack power supply module (such as the ABB DSQC 604 or equivalent Advant OCS PSU unit). A degraded power supply delivering marginal voltage to the backplane is one of the most common root causes of intermittent coupling module faults. Measure output voltage under load before reinstalling the new coupling module. Next, inspect the processor module (PM) seated in the same subrack — typically an ABB PM511 or PM864 depending on the generation of your Advant OCS installation. A coupling module fault that has persisted for an extended period may have generated error logs or corrupted communication tables in the processor’s non-volatile memory; a firmware reload or cold restart may be required after the hardware swap.

The I/O bus cable and termination resistors connecting the coupling module to downstream I/O stations (AI810, AO810, DI810, DO810 series) should be visually inspected for insulation cracking, connector corrosion, and proper seating. Loose or oxidized connectors on the S100 I/O bus are a frequent source of intermittent communication errors that are often misdiagnosed as coupling module failures. While the cabinet is open, check the communication interface module CI810 or CI854 that bridges the Advant OCS system to PROFIBUS or Modbus networks — these modules share the same backplane power rail and are subject to the same thermal and electrical stress cycles.

For facilities running legacy Advant OCS installations alongside newer ABB 800xA or Symphony Plus systems, the gateway and protocol converter modules linking the two platforms deserve attention during any coupling module replacement event. A disruption in the Advant OCS segment can propagate alarm floods upstream into the 800xA operator station if the gateway is not properly isolated during maintenance. Additionally, inspect terminal blocks and marshalling panels connected to the I/O stations downstream of this coupling module — loose field wiring at the terminal level can introduce ground loops that stress the coupling module’s isolation circuitry over time.

Finally, review the battery backup module for the processor subrack. Many Advant OCS installations rely on lithium battery modules to retain program memory during power cycling. If the battery is approaching end-of-life, a coupling module replacement is the ideal moment to swap it simultaneously, avoiding a second planned outage within months. A complete cabinet inspection at this stage — covering the signal isolator modules on analog I/O loops and any fuse modules on the 24 VDC distribution rail — ensures the restored DCS segment returns to service with maximum reliability.

Strategic Replacement Solutions

The ABB Advant OCS platform has been in service at industrial facilities worldwide since the early 1990s. While ABB has transitioned its DCS portfolio toward the System 800xA and Symphony Plus platforms, a substantial installed base of Advant OCS systems remains in active production service — particularly in the power, oil and gas, and chemical sectors where control system migrations carry significant capital cost and operational risk.

The 87TS01I-E GJR2368900R2550 is a direct original replacement that requires no firmware modification, no re-engineering of I/O mapping, and no changes to the existing HMI or historian configuration. This plug-and-play compatibility is its primary strategic value: it allows maintenance teams to restore full DCS functionality within the duration of a single shift, without engaging a system integrator or scheduling an extended outage window. For facilities managing a 5–15 year system life extension plan on their Advant OCS infrastructure, maintaining a stock of one to two coupling module spares per DCS segment is a standard risk mitigation practice recommended by ABB’s own lifecycle services documentation.

Compared to sourcing refurbished or third-party compatible modules, original ABB units carry traceable manufacturing provenance, consistent electrical tolerances, and compatibility assurance across all Advant OCS firmware revisions. This eliminates the risk of subtle incompatibilities — such as timing mismatches on the MB300 bus — that can cause intermittent faults difficult to diagnose in the field. For procurement teams managing multi-site spare parts inventories, consolidating on original ABB part numbers also simplifies vendor qualification, warranty administration, and audit documentation. Pairing the 87TS01I-E with a stocked CI854 communication interface module and a spare PM864 processor module creates a comprehensive segment-level spare kit that covers the three most failure-prone components in a mature Advant OCS installation.

Support FAQ

Q1: Is the 87TS01I-E GJR2368900R2550 compatible with all generations of the ABB Advant OCS platform?
The 87TS01I-E is designed for the Advant OCS subrack architecture and is compatible with standard Advant OCS controller stations using the MB300 backplane bus. Compatibility with specific subrack generations (S100, S400) should be verified against your existing hardware revision. Contact us with your current subrack model number for confirmation before ordering.

Q2: What testing is performed before shipment?
Every 87TS01I-E unit undergoes functional power-on verification and insulation resistance testing at our facility prior to dispatch. Units that do not pass both tests are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed via email with a fault description and photographic evidence of the defect.

Q4: How quickly can the unit be shipped, and what documentation is provided?
In-stock units are dispatched within 1–2 business days. Each shipment includes a packing list, test confirmation, and country-of-origin declaration (Germany). Express courier options (DHL, FedEx) are available for urgent maintenance requirements. Contact us directly for lead time confirmation on high-volume orders.
