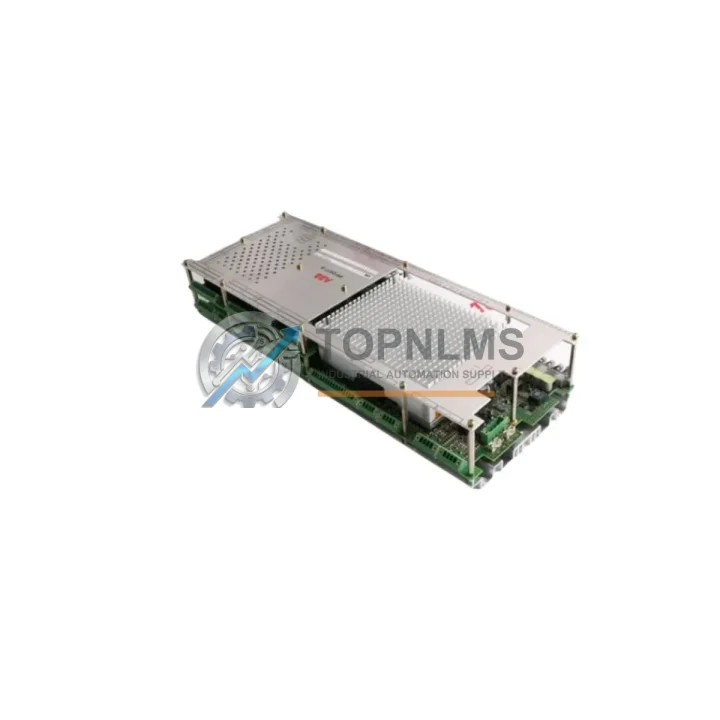

ABB 3BHE036342R0101 Original Industrial Spare AC800M Compatible

Product Overview

ABB 3BHE036342R0101 Original Industrial Spare AC800M Compatible: System Stability & Maintenance Value

The ABB 3BHE036342R0101 is an original Central Processor Unit (CPU) module designed for the ABB AC800M Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in power generation, oil & gas, chemical processing, and heavy manufacturing. As the computational core of the AC800M controller rack, this module governs real-time process execution, I/O scanning, communication handling, and application program management. Sourcing a verified original spare is not merely a procurement decision — it is a system stability investment that directly impacts plant uptime, safety loop integrity, and long-term maintenance cost.

At TOPNLMS, every 3BHE036342R0101 unit is sourced from authorized supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. We ship globally with full documentation support, enabling your maintenance team to execute a controlled replacement with confidence.

Critical Technical Specs

Preventive Maintenance Strategy

When a 3BHE036342R0101 CPU module is flagged for replacement — whether due to a diagnostic fault, scheduled lifecycle refresh, or unplanned failure — experienced maintenance engineers know that the CPU is rarely the only component that warrants attention. A thorough inspection of the entire AC800M controller cabinet during the same maintenance window dramatically reduces the risk of secondary failures and repeat downtime events.

Begin with the PM891 or PM856 power supply modules that feed the controller rack. A degraded power supply is a leading cause of intermittent CPU faults and should be tested or replaced proactively whenever the CPU is pulled. Alongside the power supply, inspect the SA811F or SA801F I/O interface modules connected to the same rack — these handle analog and digital signal conditioning and are subject to thermal stress over long operational cycles.

Communication integrity is equally critical. The CI854A or CI858 PROFIBUS communication interface modules that link the AC800M to field devices and remote I/O should be checked for firmware currency and connector integrity. If the plant uses Foundation Fieldbus, the CI862 FF linking device should be included in the inspection scope. For Ethernet-based supervisory connectivity, verify the CEX-Bus coupler modules and associated patch cables are free of corrosion and seated correctly.

Terminal blocks and TB820 or TB840 termination units are often overlooked during CPU-focused maintenance but are a common source of intermittent signal faults. Inspect all field wiring terminations for oxidation, loose screws, and insulation degradation. If the cabinet houses DO810 or DI810 digital I/O modules, verify their LED status indicators and cross-reference against the DCS historian for any latent fault codes that may have been masked by the CPU issue.

For plants running redundant CPU configurations, the standby CPU module (a second 3BHE036342R0101 or compatible variant) should be tested and confirmed operational before the primary unit is removed. Redundancy is only as reliable as the last verified switchover test. Finally, review the battery backup module for the controller rack — a depleted battery will cause program loss on power interruption even when the CPU itself is healthy.

Incorporating these checks into a single planned maintenance event — rather than addressing each component reactively — is the most cost-effective approach to sustaining AC800M system reliability across a 10–20 year plant lifecycle.

Strategic Replacement Solutions

The ABB AC800M platform has been in active deployment since the early 2000s, and many facilities are operating controllers that are approaching or have exceeded their original design lifecycle. The 3BHE036342R0101 CPU module is a direct replacement for earlier AC800M processor variants, enabling plants to extend the operational life of their existing DCS infrastructure without undertaking a full system migration.

Unlike third-party or remanufactured alternatives, an original ABB 3BHE036342R0101 maintains full compatibility with the AC800M firmware ecosystem, Control Builder M engineering tool, and existing application programs. There is no requirement to re-engineer control logic, reconfigure I/O mappings, or retrain operators — the replacement module slots into the existing rack, loads the application from the SD card or redundant partner, and resumes process control within minutes of a controlled switchover.

For facilities managing aging DCS infrastructure, maintaining a minimum stock of one spare CPU module per controller cluster is a recognized best practice in process industries. The cost of a single unplanned shutdown event — in lost production, emergency logistics, and labor — typically exceeds the cost of a spare module by an order of magnitude. Proactive spare holding eliminates the lead-time risk associated with sourcing critical components under emergency conditions.

TOPNLMS maintains ready stock of 3BHE036342R0101 and related AC800M spare modules, with standard shipment within 2–5 business days and expedited options available for critical plant situations. All units are tested, documented, and shipped with anti-static packaging appropriate for sensitive electronic modules.

Support FAQ

Q1: Is the 3BHE036342R0101 compatible with all AC800M controller variants?
The 3BHE036342R0101 is designed for the ABB AC800M and AC800PEC controller platforms. Compatibility with specific firmware versions and rack configurations should be verified against the ABB AC800M Hardware Unit Description (HUD) document for your installed base. Our technical team can assist with compatibility verification prior to order confirmation.

Q2: What testing is performed before shipment?
Every unit undergoes pre-shipment functional verification including power-on self-test, communication interface check, and visual inspection for physical integrity. Units are shipped in anti-static packaging with a test report available upon request. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: How quickly can a replacement be executed on-site?
For a non-redundant AC800M configuration, a controlled CPU replacement typically requires a planned process shutdown of 30–90 minutes, depending on application complexity and site procedures. For redundant CPU configurations, a bumpless switchover to the standby CPU allows the replacement to be performed without process interruption. Ensure the application program backup is current before initiating any CPU swap.

Q4: What is your recommended spare holding strategy for AC800M CPU modules?
For critical process units, we recommend holding a minimum of one spare 3BHE036342R0101 per controller cluster on-site, with a secondary spare at the central warehouse. For facilities with multiple AC800M controllers, a pooled spare strategy — where one spare covers two to four controllers of the same type — balances inventory cost against availability risk. Annual spare audits should verify that held spares remain within their storage life and firmware compatibility window.
