ABB 3BHE027632R0101 Original Industrial Spare AC800M Compatible

Product Overview

ABB 3BHE027632R0101 Original Industrial Spare AC800M Compatible: System Stability & Industrial Spare Maintenance Value

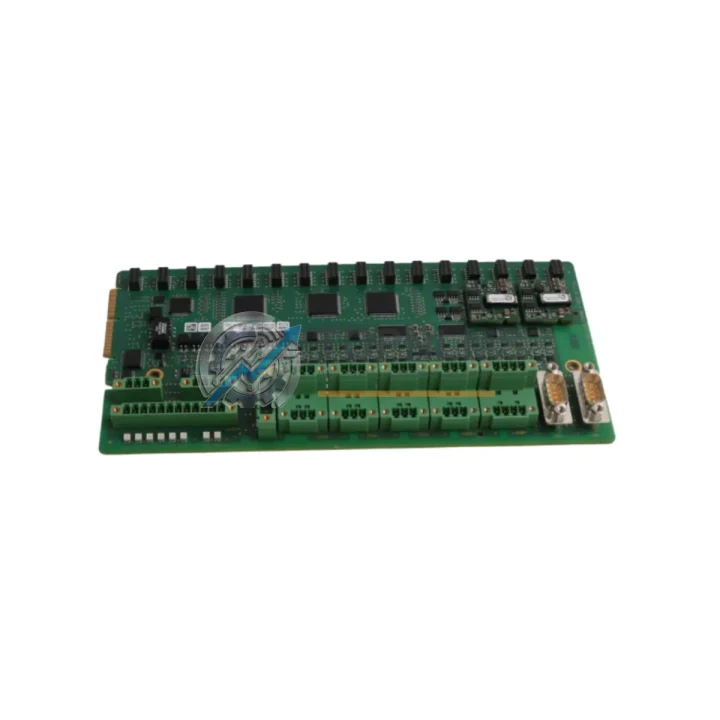

The ABB 3BHE027632R0101 is the main controller board for the AC800M series Distributed Control System (DCS), one of ABB’s most widely deployed process automation platforms across petrochemical, power generation, pulp & paper, and heavy manufacturing industries. As a core processing unit responsible for executing control logic, managing I/O communication, and maintaining real-time process coordination, this module is a mission-critical component in any AC800M-based control cabinet. Sourced as an original ABB spare part manufactured in Germany, the 3BHE027632R0101 ensures full firmware compatibility, deterministic scan-cycle performance, and long-term system stability without the risk of counterfeit substitution.

For maintenance engineers and procurement teams managing aging DCS infrastructure, securing a verified replacement for the 3BHE027632R0101 is not merely a reactive measure — it is a cornerstone of any responsible preventive maintenance strategy. Unplanned controller failures in AC800M systems can cascade into full process shutdowns, with recovery times measured in hours or days when spare parts are unavailable. Stocking this module as a cold standby dramatically compresses mean time to repair (MTTR) and protects production continuity.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled inspection of the AC800M control cabinet should extend well beyond the controller board itself. During any planned maintenance window involving the 3BHE027632R0101, experienced maintenance teams will simultaneously audit the surrounding system components to prevent secondary failures from undermining the controller replacement. The PM891 and PM856 processor modules in adjacent controller slots should be checked for firmware version alignment and thermal stress indicators, as mismatched firmware revisions can cause communication faults after a controller swap.

The TB840A and TB820V2 communication interface modules that bridge the AC800M controller to field I/O networks are frequent wear points in high-cycle environments. Inspecting their optical fiber connectors and verifying CEX-Bus signal integrity during the same maintenance window avoids a second unplanned outage shortly after the controller is restored. Similarly, the CI854B PROFIBUS DP interface module and CI840A Foundation Fieldbus HSE module should be tested for communication latency and error counters, as degraded fieldbus performance is often misdiagnosed as a controller fault.

On the power supply side, the SD821 and SD822 power supply modules that feed the AC800M backplane are critical co-dependencies. A failing power supply can corrupt controller memory or trigger spurious resets — symptoms that mimic controller board failure. Verifying output voltage ripple and load regulation on these units during the same inspection cycle is standard practice in high-availability DCS environments.

For I/O infrastructure, the AI810 analog input module and DI810 digital input module connected to the same controller node should be checked for channel drift, blown fuses, and terminal block corrosion. Loose or oxidized connections on TB807 and TB811 terminal units are a common source of intermittent signal errors that can be incorrectly attributed to controller instability. Stocking a set of these I/O modules alongside the 3BHE027632R0101 controller board provides a comprehensive spare kit for the entire AC800M node.

Finally, if the plant operates redundant AC800M controllers, the SC520 and SC522 communication cables linking the primary and backup controller boards should be inspected for connector integrity and cable routing damage. A degraded redundancy link can prevent automatic failover, negating the value of the redundant architecture entirely.

Strategic Replacement Solutions

The 3BHE027632R0101 is a direct replacement for earlier AC800M controller revisions, including legacy boards that may no longer be available through ABB’s standard distribution channels. For plants running 800xA systems installed in the early 2000s, the original controller boards are approaching or exceeding their designed service life of 10–15 years. Replacing these units with the 3BHE027632R0101 — which maintains full backward compatibility with existing AC800M firmware, I/O configurations, and application programs — allows maintenance teams to extend system life without undertaking a costly full DCS migration.

The replacement process is designed for minimal downtime. In non-redundant configurations, a controller swap can typically be completed within a planned 2–4 hour maintenance window, including firmware loading, I/O verification, and loop checkout. In redundant AC800M configurations, the replacement can be performed online with zero process interruption by switching control to the backup controller, replacing the primary board, and then restoring redundancy — a procedure that experienced DCS engineers can execute in under 60 minutes.

For procurement teams managing multi-site operations, consolidating spare inventory around the 3BHE027632R0101 rather than maintaining separate stocks of multiple legacy controller revisions reduces carrying costs and simplifies spare part governance. A single verified spare at each site, combined with a regional hub stock for rapid inter-site transfer, represents the optimal inventory posture for most industrial operators.

Support FAQ

Q1: Is the 3BHE027632R0101 compatible with all AC800M firmware versions?
The 3BHE027632R0101 is compatible with the AC800M controller family and supports the firmware versions used across the 800xA and Symphony Plus platforms. For specific firmware revision matching, we recommend confirming your current system firmware version before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: How is the module tested before shipment?
Each 3BHE027632R0101 unit undergoes functional power-on testing and communication interface verification before dispatch. Units are inspected for physical integrity, connector condition, and component-level anomalies. A test report is available upon request. All units are shipped in anti-static packaging with appropriate cushioning for international transit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost. Warranty period begins from the date of confirmed delivery.

Q4: What is the recommended inventory strategy for this module?
For single-site operations with one AC800M controller node, maintaining one cold-standby unit is the minimum recommended posture. For multi-node or redundant AC800M installations, a ratio of one spare per three to five installed controllers is a common industry benchmark. Given the lead times associated with sourcing original ABB spare parts through standard channels, pre-positioning stock with a reliable distributor like TOPNLMS significantly reduces procurement risk during emergency maintenance events.
