ABB 3BHE013299R0022 LTC743CE22 Original Industrial Spare AC800PEC Compatible

Product Overview

ABB 3BHE013299R0022 LTC743CE22 Original Industrial Spare AC800PEC Compatible: System Stability & Industrial Spare Maintenance Value

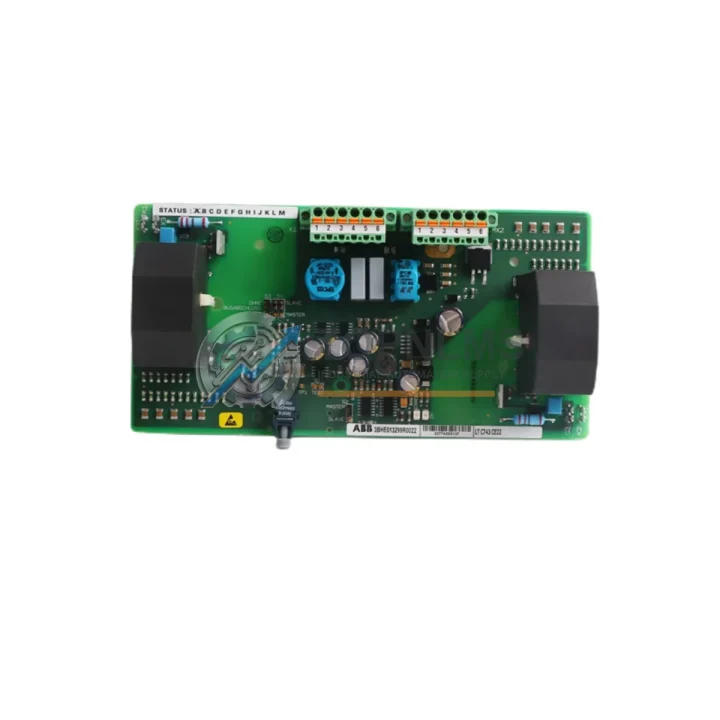

The ABB 3BHE013299R0022 LTC743CE22 is an original excitation control circuit board engineered for ABB’s AC800PEC high-performance controller platform and UNITROL automatic voltage regulator (AVR) systems. In power generation, heavy industry, and process automation environments, the excitation control board is a mission-critical component — responsible for regulating generator field current, maintaining voltage stability, and protecting rotating machinery from fault conditions. A failed or degraded excitation board can trigger unplanned shutdowns, generator trips, and cascading process failures that result in significant production losses.

Sourcing a verified original ABB 3BHE013299R0022 LTC743CE22 as a ready-to-install spare is one of the most effective strategies for reducing mean time to repair (MTTR) and protecting system uptime. This board is fully compatible with the AC800PEC controller architecture and integrates seamlessly with UNITROL 5000 and UNITROL 6000 series AVR cabinets without firmware reconfiguration or hardware adaptation.

Critical Technical Specs Table

Preventive Maintenance Strategy

In power plant and heavy industrial environments, the excitation control board rarely fails in isolation. Experienced maintenance engineers treat an excitation board replacement as a trigger for a broader cabinet inspection — because the root cause of board failure is often upstream: voltage spikes, cooling failures, contaminated backplane connectors, or degraded power supply rails.

When replacing the ABB 3BHE013299R0022 LTC743CE22, a structured preventive maintenance checklist should include the following associated components within the same AC800PEC or UNITROL cabinet:

AC800PEC Processor & Controller Modules: Inspect the AC800PEC CPU module (3BHE025541R0101 / PPD113 series) for firmware version compatibility and backplane connector integrity. A degraded CPU module can cause intermittent excitation faults that are misdiagnosed as board failures.

Power Supply Modules: Verify the AC800PEC power supply unit (3BHE022293R0101 or equivalent) output rails. Undervoltage on the 24 VDC or 5 VDC rails is a leading cause of control board logic errors and premature component failure. Replace the PSU if ripple voltage exceeds manufacturer tolerance.

I/O Modules: Check associated ABB AI810 / AO810 analog I/O modules for signal drift. Excitation systems rely on precise analog feedback from current transformers and voltage transformers — degraded I/O modules introduce measurement errors that destabilize the AVR control loop.

Communication Modules: Inspect the AC800PEC communication module (CI858 or CI854A PROFIBUS DP) for bus error counts. High error rates on the fieldbus can cause the excitation controller to lose synchronization with the supervisory DCS, triggering protective shutdowns.

Signal Isolators: Examine signal isolation modules on the analog input channels feeding excitation feedback signals. Galvanic isolation barriers degrade over time in high-EMI environments typical of generator halls, leading to ground loops and measurement noise.

Terminal Blocks & Wiring: Inspect Phoenix Contact or ABB terminal blocks on the excitation cabinet wiring harness. Loose or corroded terminals on CT/VT secondary circuits are a common source of intermittent excitation faults and should be re-torqued and cleaned during every planned outage.

Relay Output Modules: Test relay output modules (e.g., DO810 or equivalent) used for excitation enable/disable and field breaker control. Relay contact wear in high-cycle applications can cause delayed or missed trip commands.

Fuse Modules: Replace fuse modules and miniature circuit breakers on the 24 VDC auxiliary power distribution rail within the UNITROL cabinet. Aging fuses with increased resistance cause voltage drop under load, which can corrupt board logic during transient events.

HMI / Operator Panel: If the installation uses an ABB CP600 or PP865 operator panel for local excitation monitoring, verify panel firmware and communication link integrity. A failed HMI does not affect excitation control directly but eliminates local visibility during fault conditions — a significant operational risk.

Conducting this full-cabinet inspection during the same maintenance window as the 3BHE013299R0022 LTC743CE22 replacement maximizes the value of each planned outage and significantly reduces the probability of a repeat unplanned shutdown within the next 12–24 months.

Strategic Replacement Solutions

The ABB 3BHE013299R0022 LTC743CE22 is a long-lifecycle industrial component, but like all electronics in demanding environments, it is subject to aging, thermal stress, and eventual obsolescence. Many facilities operating AC800PEC-based excitation systems installed in the 2000s and 2010s are now entering the phase where proactive board replacement — rather than reactive repair — is the economically optimal strategy.

Key advantages of stocking this board as a pre-qualified spare:

Zero Reconfiguration: As an original ABB board with the correct hardware revision (LTC743CE22), this unit installs directly into the AC800PEC backplane without firmware changes, parameter re-entry, or compatibility testing. This is a critical advantage over third-party alternatives or repaired boards with unknown revision histories.

Reduced MTTR: With a verified spare on the shelf, excitation system restoration time is reduced from days (waiting for procurement and shipping) to hours (physical swap and recommissioning). For power generation facilities, this difference can represent hundreds of thousands of dollars in avoided lost generation revenue.

Legacy System Life Extension: For facilities committed to operating existing AC800PEC and UNITROL infrastructure beyond the original design life, maintaining a stock of critical boards like the 3BHE013299R0022 is the most cost-effective alternative to full system replacement. A single board replacement can extend system service life by 5–10 years.

Compatibility Assurance: This board is verified compatible with UNITROL 5000 and UNITROL 6000 AVR platforms. Before installation, confirm the hardware revision suffix (R0022) matches the existing board to ensure full pin and firmware compatibility. Our technical team can assist with revision verification prior to shipment.

Support FAQ

Q1: Is the 3BHE013299R0022 LTC743CE22 compatible with both UNITROL 5000 and UNITROL 6000 systems?
A: Yes. The LTC743CE22 board is designed for the AC800PEC controller platform, which is the core controller used in both UNITROL 5000 and UNITROL 6000 AVR systems. However, always verify the hardware revision suffix (R0022) against your existing board label before installation to confirm full compatibility.

Q2: What testing is performed before shipment?
A: Every unit undergoes visual inspection, power-on functional verification, and connector integrity testing prior to dispatch. A test report is available upon request. Units are shipped in anti-static packaging with full ESD protection.

Q3: How should I manage spare board inventory for a multi-unit generator facility?
A: For facilities with 2 or more AC800PEC-based excitation systems, we recommend maintaining a minimum of one 3BHE013299R0022 LTC743CE22 board per 3–4 units as a rotating spare. Boards should be stored in climate-controlled, ESD-safe conditions and inspected annually. Pair this with a stocked AC800PEC power supply module and at least one set of I/O modules to cover the most common failure scenarios.

Q4: What is covered under the 12-month warranty?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or unauthorized modification. Warranty claims are processed with return shipment support and replacement dispatch within 5 business days of fault confirmation.
