ABB 3BHB002916R0101 UFC721AE Original Industrial Spare AC800M

Product Overview

ABB 3BHB002916R0101 UFC721AE Original Industrial Spare AC800M: System Stability & Industrial Spare Maintenance Value

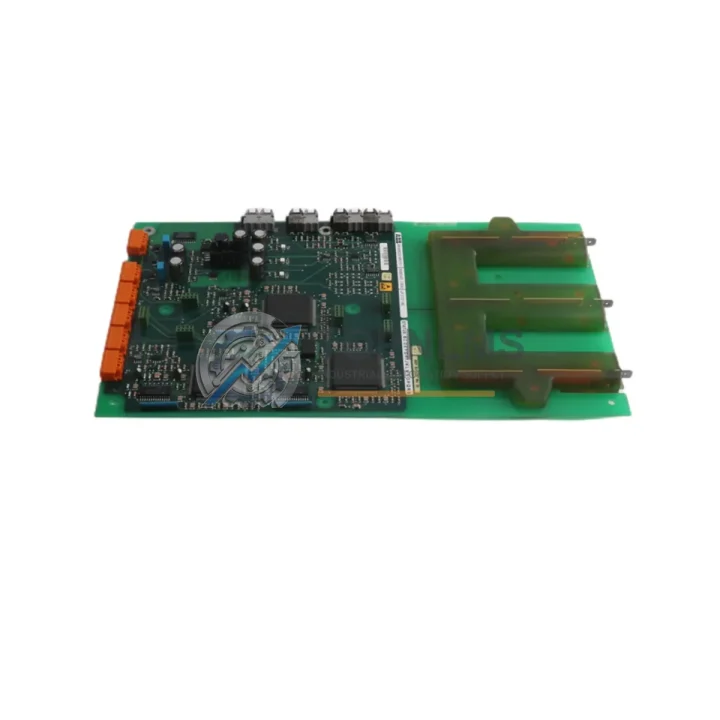

The ABB 3BHB002916R0101 (UFC721AE) is an original voltage scaling card engineered for ABB’s AC800M and AC450 Distributed Control System (DCS) platforms. In process industries — including oil & gas, power generation, pulp & paper, and chemical manufacturing — the integrity of analog signal conditioning directly determines the accuracy of process control loops. A degraded or failed voltage scaling card can introduce measurement drift, trigger spurious alarms, or cause unplanned shutdowns that cost thousands of dollars per hour. Stocking a verified original UFC721AE is one of the most cost-effective decisions a maintenance team can make.

This module performs voltage signal scaling and conditioning within the AC800M controller cabinet, ensuring that field-level analog signals are accurately translated into engineering units for the DCS processor. Its role is foundational: without reliable signal scaling, PID loops lose fidelity, operator displays show erroneous readings, and safety interlocks may respond incorrectly. The UFC721AE is designed to ABB’s original manufacturing specifications, ensuring full backward compatibility with existing AC800M and AC450 installations without any firmware modification or reconfiguration.

Critical Technical Specs Table

Preventive Maintenance Strategy

Experienced DCS maintenance engineers know that a voltage scaling card rarely fails in isolation. The UFC721AE sits within a broader signal chain that spans field instruments, marshalling cabinets, I/O modules, and the controller backplane. When scheduling a planned outage or responding to a signal anomaly, a disciplined inspection should extend beyond the UFC721AE itself.

Begin at the field wiring level: inspect the ABB TB820V2 ModuleBus Modem and associated communication links to confirm that the controller backplane is receiving clean data. Verify the condition of the AC800M PM866 or PM864 processor module — if the UFC721AE is being replaced due to persistent calibration errors, the processor’s analog reference circuitry should also be validated. Check the AI810 or AI820 analog input modules in the same I/O cluster; a failing scaling card can mask upstream I/O faults that only become apparent after the scaling card is replaced.

Within the controller cabinet, inspect the SD802F or SD812F power supply modules that feed the I/O bus. Voltage ripple or supply instability is a common root cause of analog signal drift and can accelerate wear on scaling and conditioning cards. Alongside the power supply, examine the TK850V007 or TK851V003 cable assemblies connecting the I/O modules to the controller — corroded or loose connectors introduce resistance that distorts analog readings.

For facilities running mixed analog and digital I/O, the DI810 or DO810 digital I/O modules in adjacent slots should be visually inspected for burn marks or relay contact wear, particularly if the cabinet has experienced any surge events. If the plant uses CI854AK or CI857K PROFIBUS/PROFINET communication modules for field device integration, confirm that their diagnostic LEDs show no fault conditions — a communication fault upstream can be misdiagnosed as a scaling card failure.

Finally, review the condition of the TB807 or TB811 terminal base units on which the I/O modules are seated. Cracked or oxidized terminal bases are a frequent source of intermittent faults in aging AC800M cabinets. Proactive replacement of terminal bases during a UFC721AE swap eliminates a common callback failure mode and extends the effective service life of the entire I/O cluster by several years.

Stocking one spare UFC721AE alongside a spare AI810 analog input module, a replacement SD802F power supply, and a set of TK850 cable assemblies gives a maintenance team the coverage needed to resolve the majority of AC800M analog signal faults within a single shift — without waiting for emergency procurement.

Strategic Replacement Solutions

Many AC800M and AC450 installations have been in continuous service for 15 to 20 years. Over that lifecycle, original spare parts become increasingly difficult to source through standard distribution channels, and the risk of receiving counterfeit or refurbished modules sold as new increases significantly. The ABB 3BHB002916R0101 UFC721AE available through TOPNLMS is sourced as a genuine original component, fully tested against ABB’s factory acceptance criteria before shipment.

For plants managing end-of-life DCS infrastructure, the UFC721AE provides a direct, configuration-free replacement path. Unlike third-party compatible modules that may require parameter adjustments or firmware updates, the original UFC721AE slots into the existing rack and resumes operation without any engineering intervention — a critical advantage when minimizing mean time to repair (MTTR) during an unplanned outage.

Maintenance planners managing multi-site operations should consider establishing a centralized spare parts pool that includes the UFC721AE alongside other high-criticality AC800M modules. A pooled inventory strategy reduces per-site carrying costs while ensuring that any facility can receive a replacement module within 24 hours of a fault event. Given the UFC721AE’s role in analog signal integrity, its criticality classification should be reviewed annually as part of the plant’s reliability-centered maintenance (RCM) program.

For older AC450 systems approaching migration to AC800M or Symphony Plus platforms, the UFC721AE also serves as a bridge component — maintaining system stability during phased upgrades while new infrastructure is commissioned in parallel. This approach eliminates the need for a full cutover outage and allows engineering teams to validate new I/O configurations against live process data before final switchover.

Support FAQ

Q1: Is the 3BHB002916R0101 UFC721AE compatible with both AC800M and AC450 DCS platforms?
Yes. The UFC721AE is designed for use within ABB’s AC800M and AC450 DCS controller families. It is a direct replacement for existing UFC721AE installations and requires no firmware modification or reconfiguration upon installation. If you are unsure about compatibility with a specific hardware revision, contact our technical team with your cabinet configuration details.

Q2: What testing is performed before shipment?
Every UFC721AE unit is functionally tested prior to dispatch. Testing covers signal scaling accuracy, power consumption within specification, and communication integrity with the AC800M backplane. Units are shipped in anti-static packaging with a test report available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: How should I manage UFC721AE inventory for a multi-site operation?
For operations with three or more AC800M or AC450 systems, we recommend maintaining a minimum of one UFC721AE spare per five installed units, with a centralized pool for rapid inter-site transfer. Given typical MTBF data for analog conditioning modules in industrial environments, a 12–18 month replenishment cycle is appropriate. Contact us for volume pricing on multi-unit orders.

Q4: Can the UFC721AE be installed by site maintenance personnel, or does it require an ABB service engineer?
The UFC721AE is a hot-swappable module in most AC800M configurations, allowing qualified site maintenance personnel to perform the replacement without a full system shutdown. Standard precautions include ESD protection, verification of power supply stability before insertion, and a post-installation signal calibration check. For AC450 installations with older backplane revisions, consult the system documentation before hot-swapping.
