ABB 1MRK002133-ACR02 Replacement for REX521 Series

Product Overview

ABB 1MRK002133-ACR02 Replacement for REX521 Series: Seamless Transition & Legacy System Compatibility

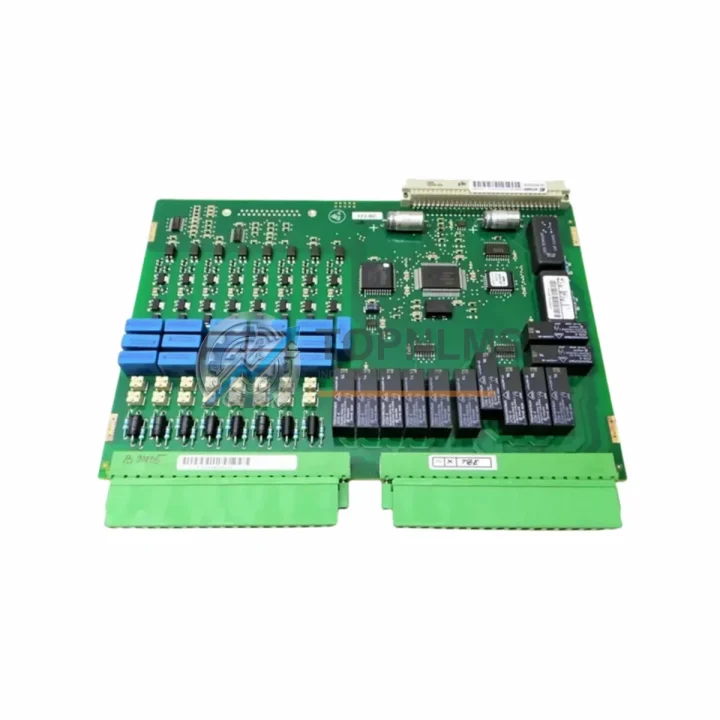

The ABB 1MRK002133-ACR02 is a combined analog and digital I/O module designed for the REX521 protection relay platform. For facilities operating aging REX521 relay panels — or those migrating from earlier ABB SPACOM or SPAJ series protection relays — this module provides a verified drop-in upgrade path that preserves existing wiring terminations, relay logic, and substation automation architecture. Whether your site is replacing a failed unit, building a critical spare inventory, or executing a planned protection system modernization, the 1MRK002133-ACR02 delivers the I/O expansion capacity required without forcing a full panel redesign.

Industrial substations and power distribution facilities that originally commissioned REX521 relays in the late 1990s and early 2000s are now facing end-of-support challenges. ABB’s transition toward the REF615, RET615, and REL615 relay families under the Relion 615 series has left many sites holding legacy REX521 hardware that still performs its protection function reliably — but requires replacement I/O modules when analog input channels degrade or digital output contacts fail. The 1MRK002133-ACR02 addresses exactly this scenario: it slots into the existing REX521 module bay, connects to the same rear terminal block wiring, and restores full I/O functionality without requiring relay re-parameterization or protection setting recalculation.

For sites executing a phased migration strategy — where REX521 relays remain in service while newer Relion 615 or REF630 units are commissioned in parallel bays — maintaining a tested stock of 1MRK002133-ACR02 modules is a standard risk mitigation practice. A single failed I/O module in a feeder protection relay can force a circuit outage; having a verified replacement on the shelf reduces mean time to repair (MTTR) from days to under an hour.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful REX521 I/O module replacement rarely involves a single component in isolation. In practice, field engineers replacing the 1MRK002133-ACR02 are often simultaneously auditing adjacent modules in the same relay chassis. The REX521 platform uses a modular slot architecture, meaning the CPU module (1MRK002133-AAR01 or equivalent), the power supply module, and the communication interface module all occupy separate bays in the same housing. If the analog input channels on the I/O module have degraded due to transient overvoltage — a common failure mode in substation environments — it is prudent to inspect the REX521 communication module for SPA-bus or LON interface integrity at the same time.

Sites running IEC 60870-5-103 or LON-based substation automation systems will also want to verify that the ABB COM600 station automation unit or the RTU560 remote terminal unit upstream of the REX521 relay is correctly mapped to the restored I/O channel addresses after module replacement. In multi-feeder switchgear lineups where several REX521 relays share a common SPA-bus segment, replacing one I/O module without verifying bus termination resistors on the REX521 communication module can introduce communication errors across the entire protection relay string.

For facilities planning a longer-term migration toward IEC 61850 GOOSE-based protection schemes, the 1MRK002133-ACR02 replacement buys the operational time needed to properly engineer the transition to ABB REF615 or RET615 relays. During the transition period, signal isolators and terminal adapter modules are frequently used to bridge legacy REX521 analog output signals — such as 4–20 mA current loop measurements — into the new relay’s input range. ABB’s IOEX I/O extension modules and third-party DIN-rail signal conditioners are commonly deployed in this bridging role within the same control cabinet.

When the REX521 relay is installed in a withdrawable relay panel or a modular protection cubicle, the rear terminal block assembly — sometimes referenced as the REX521 test switch or plug-in terminal cassette — must be confirmed compatible before module insertion. In older installations, the terminal cassette may have accumulated contact oxidation that increases loop resistance on analog measurement circuits; replacing the I/O module without cleaning or replacing the terminal cassette can result in persistent measurement errors that are incorrectly attributed to the new module.

For procurement teams building a comprehensive REX521 spare parts kit, the 1MRK002133-ACR02 I/O module is typically ordered alongside the REX521 CPU module, the REX521 power supply module, and a set of REX521 output relay contact modules to cover the most statistically likely failure modes across a fleet of installed relays. This approach — stocking a complete module set rather than individual components — is standard practice in utilities and industrial facilities with 10 or more REX521 relays in service.

Retrofit Guidance FAQ

Q: Does replacing the 1MRK002133-ACR02 require relay re-parameterization or protection setting changes?
A: No. The 1MRK002133-ACR02 is a hardware I/O module; it does not store protection settings or relay parameters. All settings reside in the REX521 CPU module. A module swap restores I/O hardware functionality without affecting relay logic, protection curves, or communication addresses.

Q: Is the rear terminal wiring compatible with all REX521 variants?
A: Yes. The 1MRK002133-ACR02 uses the standard REX521 rear terminal block pinout. No rewiring is required for direct replacement. Verify the terminal cassette contact condition before insertion.

Q: What communication protocols does the REX521 support after I/O module replacement?
A: The REX521 communication protocol (SPA-bus, LON, or IEC 60870-5-103) is managed by the communication interface module, not the I/O module. Replacing the 1MRK002133-ACR02 does not affect protocol configuration. Existing SCADA or RTU mappings remain valid.

Q: Can this module be used in a REX521 installed in a 19-inch rack enclosure?
A: Yes. The 1MRK002133-ACR02 is compatible with all standard REX521 mounting configurations including panel-flush, 19-inch rack, and surface-mount installations. Physical dimensions are identical to the original module.

Q: What is the lead time and shipping origin?
A: Units ship from our Xiamen warehouse within 1–3 business days of order confirmation. International express shipping (DHL / FedEx) is available to most destinations. Estimated transit: 3–7 business days to Europe, Middle East, and Southeast Asia.

Q: How do I verify the module is genuine ABB before installation?
A: Each unit is shipped with its original ABB part label, serial number, and factory test documentation where available. We recommend performing a visual inspection of the ABB holographic label and cross-referencing the serial number with ABB’s installed base records prior to energization.

Warranty Assurance

Every ABB 1MRK002133-ACR02 module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional pre-shipment inspection to verify module integrity, connector condition, and labeling accuracy. In the event of a confirmed hardware defect within the warranty period, TOPNLMS will arrange replacement dispatch or credit at no additional cost to the buyer.

Our warranty support process is designed for industrial procurement realities: we understand that protection relay components are often held in spare inventory for months before installation. Warranty coverage is calculated from shipment date, and our after-sales team responds to warranty claims within 1 business day. For urgent operational replacements — where a substation feeder is out of service pending the module — we offer priority re-shipment on confirmed warranty cases.

Procurement teams requiring test certificates, factory calibration records, or third-party inspection documentation should contact us prior to order placement. We work with established freight forwarders and can provide commercial invoices, packing lists, and country-of-origin certificates to support import clearance in regulated markets.

For volume orders (5 units or more), dedicated account support and extended lead-time planning are available. Contact our sales team to discuss blanket order arrangements, consignment stock programs, or multi-site spare parts standardization projects.
