ABB 1MRK000157-MBr00 Original Industrial Spare REB500 Compatible: System Stability & Busbar Protection Maintenance

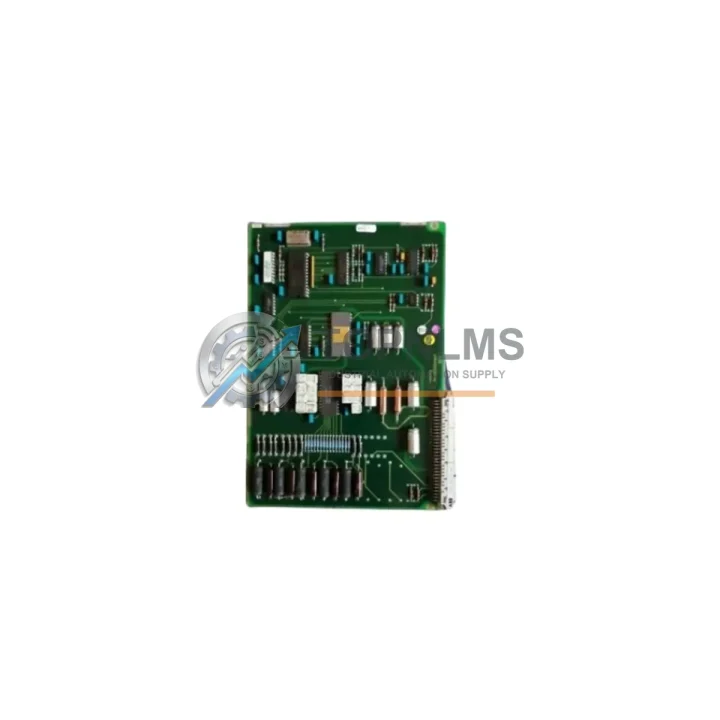

The ABB 1MRK000157-MBr00 is an original power supply board engineered for the REB500 Busbar Protection System — one of ABB’s most widely deployed numerical protection platforms in high-voltage substations, industrial power distribution panels, and utility-grade switchgear installations. When this board fails or degrades, the entire busbar protection zone is compromised, exposing the facility to uncontrolled fault propagation, arc flash events, and extended unplanned downtime. Maintaining a verified spare in your critical spares inventory is not optional — it is a fundamental pillar of any serious power system maintenance strategy.

Sourced directly from ABB’s authorized supply chain and manufactured in Germany, this board carries full OEM traceability. Each unit shipped by TOPNLMS undergoes pre-dispatch functional verification and is backed by a 12-month replacement warranty. Whether you are responding to an emergency trip, executing a scheduled overhaul, or building out your substation spare parts inventory, the 1MRK000157-MBr00 delivers the confidence of genuine ABB quality with the speed of a stocked industrial distributor.

Critical Technical Specs

Preventive Maintenance Strategy for REB500 Busbar Protection Systems

A power supply board failure in the REB500 is rarely an isolated event. In most substation environments, the auxiliary DC supply, the protection IED chassis, and the associated I/O infrastructure share common aging curves. When the 1MRK000157-MBr00 shows signs of output ripple, thermal stress, or intermittent undervoltage alarms, experienced protection engineers treat it as a leading indicator of broader system fatigue — not a standalone fault.

During any scheduled outage or corrective maintenance window involving the REB500, it is best practice to simultaneously inspect the REB500 binary input/output modules (such as the REB500 I/O expansion boards) for contact wear and insulation degradation. The REB500 communication interface module — responsible for IEC 61850 GOOSE messaging or legacy hardwired trip signals — should be tested for latency and signal integrity, as a degraded comms module can mask protection misoperations that only surface under fault conditions.

The station battery charger and DC distribution fuse modules feeding the REB500 auxiliary bus deserve equal attention. A marginal fuse holder or corroded terminal block in the DC supply chain can cause the same undervoltage symptoms as a failing power supply board, leading to misdiagnosis and repeat failures. Replacing the 1MRK000157-MBr00 without auditing the upstream DC MCB (miniature circuit breaker) and terminal rail assemblies is a common maintenance oversight that results in premature board failure.

For facilities running mixed ABB protection fleets, the maintenance window is also an ideal time to verify the health of adjacent REF615 or REF630 feeder protection IEDs sharing the same protection panel. These units use similar internal power supply architectures and are subject to the same auxiliary voltage quality issues. Stocking a spare power supply module for each IED type in the panel — including the REB500, REF615, and RET615 transformer protection relay — is a cost-effective strategy that dramatically reduces mean time to repair (MTTR) during emergency callouts.

Signal conditioning integrity should also be verified across the REB500 analog input boards and associated current transformer (CT) secondary wiring and shorting terminal blocks. Loose CT secondary connections during a live busbar protection test are a safety-critical hazard; inspecting and torque-checking all terminal connections while the panel is de-energized adds minimal time but eliminates a significant risk category.

Finally, for aging REB500 installations approaching 15–20 years of service, a proactive lifecycle review should include evaluation of the REB500 main processor/CPU board and the HMI front panel display module. These components, while typically more reliable than the power supply board, are subject to electrolytic capacitor aging and NVRAM data retention degradation. Coordinating their replacement alongside the 1MRK000157-MBr00 during a single planned outage minimizes total system downtime and reduces the number of protection panel isolations required over the asset’s remaining service life.

Strategic Replacement Solutions

The REB500 platform was introduced in the mid-1990s and remains operational in thousands of substations worldwide. ABB has maintained strong backward compatibility across REB500 hardware revisions, meaning the 1MRK000157-MBr00 power supply board can be installed as a direct like-for-like replacement without requiring relay setting re-entry, protection scheme reconfiguration, or IEC 61850 dataset re-mapping. This plug-and-play compatibility is a critical advantage in emergency replacement scenarios where protection restoration time is measured in hours, not days.

For facilities where the original REB500 chassis is being retained but individual modules are being selectively upgraded, the 1MRK000157-MBr00 represents the lowest-risk, highest-value intervention point. Replacing the power supply board restores clean, stable DC rails to all downstream modules, often resolving intermittent communication faults, spurious binary input activations, and unexplained relay self-check alarms that have been attributed to software or configuration issues.

In cases where the REB500 system is being maintained as a long-term asset rather than replaced with a newer IED platform (such as the ABB REB670 or REB500 successor series), building a structured spare parts kit — including the power supply board, at least one I/O module, and a communication interface card — provides a cost-effective insurance policy against obsolescence-driven downtime. TOPNLMS maintains stock of multiple REB500 module types to support exactly this kind of strategic spares program.

Support FAQ

Q1: Is the 1MRK000157-MBr00 compatible with all REB500 hardware revisions?
A: The 1MRK000157-MBr00 is designed for the REB500 busbar protection platform and is compatible with the standard REB500 chassis slot configuration. For specific hardware revision compatibility (e.g., REB500 V7 vs. V8 chassis), please contact TOPNLMS at [email protected] with your existing chassis serial number for confirmation before ordering.

Q2: What pre-shipment testing does TOPNLMS perform on this board?
A: Every 1MRK000157-MBr00 unit undergoes a functional power-on verification and output voltage rail check prior to dispatch. Units that fail to meet ABB’s specified output tolerances are quarantined and not shipped. A test report summary is available upon request for critical infrastructure procurement.

Q3: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, TOPNLMS will arrange replacement dispatch upon receipt and inspection of the returned unit.

Q4: How should I manage REB500 spare parts inventory for a multi-substation portfolio?
A: For portfolios of 5 or more REB500 installations, industry best practice recommends maintaining at least one power supply board spare per 5 units in service, with a minimum of one spare regardless of fleet size. For critical transmission substations with no redundant busbar protection, a dedicated on-site spare is strongly recommended. TOPNLMS can support bulk procurement and staged delivery programs — contact us to discuss volume pricing and consignment stock arrangements.
