ABB 07BT62R1 Original Industrial Spare AC500 Compatible: Securing System Stability in Critical Automation Environments

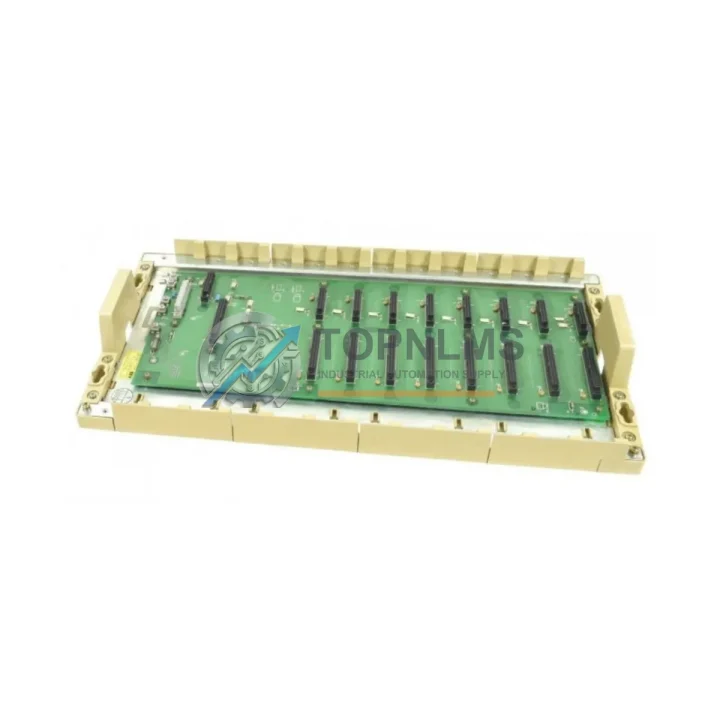

The ABB 07BT62R1 is the original 8-slot basic module rack (backplane) designed for the ABB AC500 PLC platform — one of the most widely deployed modular programmable logic controller systems in industrial automation worldwide. As the structural and electrical backbone of the AC500 control cabinet, the 07BT62R1 backplane directly governs the physical and logical interconnection of all installed I/O modules, communication modules, and the central processing unit. When this component degrades or fails, the entire control node goes offline — making it one of the highest-priority spare parts in any AC500-based maintenance inventory.

For maintenance engineers managing aging automation infrastructure, the 07BT62R1 represents a critical line-item in both corrective and preventive maintenance planning. Whether you are responding to an unplanned shutdown, executing a scheduled overhaul, or building a strategic spare parts buffer for a multi-site facility, sourcing an original ABB 07BT62R1 from a verified supplier ensures full backward compatibility with existing AC500 configurations — eliminating the risk of firmware mismatch, slot addressing errors, or mechanical incompatibility that can arise from counterfeit or substitute components.

Critical Technical Specs

Preventive Maintenance Strategy

When a control cabinet housing an ABB AC500 system is opened for inspection or corrective maintenance, experienced automation engineers know that replacing only the failed component is rarely sufficient. The 07BT62R1 backplane operates in close electrical and mechanical interdependence with every module seated in its slots. A thorough maintenance visit should include inspection — and where appropriate, proactive replacement — of the surrounding components that share the same power rail, communication bus, and thermal environment.

Begin with the AC500 CPU module (such as the PM564-T or PM583) seated in slot 1 of the rack. Backplane failures are often preceded by intermittent CPU communication faults logged in the diagnostic buffer. If the 07BT62R1 is being replaced due to bus connector wear or slot damage, the CPU module’s backplane interface pins should be inspected simultaneously. Next, evaluate the AC500 power supply module (CP502 or CP504) — the power rail integrated into the 07BT62R1 distributes 24 VDC to all installed modules, and a degraded power supply can accelerate backplane wear through voltage ripple and thermal stress.

Digital I/O modules such as the DC532 (16 DI / 16 DO) and DA501 analog output module should be reseated and their edge connectors cleaned during any backplane replacement procedure. Loose or oxidized module connections are a leading cause of intermittent I/O faults that are frequently misdiagnosed as PLC program errors. Similarly, if the cabinet includes a CM572-DP PROFIBUS communication module or a CM589-PNIO PROFINET I/O module, these should be verified for firmware currency and connector integrity — communication modules are sensitive to the mechanical shock that often accompanies a backplane swap.

Do not overlook the terminal blocks and field wiring connectors attached to each I/O module. Vibration-induced terminal loosening is common in heavy industrial environments, and a backplane replacement provides the ideal opportunity to re-torque all field terminals and replace any discolored or heat-stressed connectors. If the system includes a TA526 expansion terminal unit or remote I/O via TB511-ETH, inspect the inter-rack communication cables for insulation integrity and connector seating.

For facilities running legacy AC500 V1 hardware alongside newer V2 or V3 modules, the 07BT62R1 replacement is also an appropriate checkpoint to audit firmware compatibility across the entire rack — ensuring that CPU firmware, I/O module firmware, and communication module firmware are aligned to prevent silent incompatibility issues that only manifest under specific process conditions.

Strategic Replacement Solutions

The ABB AC500 platform has been in continuous production since the mid-2000s, and many facilities are now operating first- or second-generation hardware that is approaching or has exceeded its recommended service life. The 07BT62R1 backplane is a non-repairable component — once bus connectors are damaged, slot guides are broken, or the internal power rail shows signs of thermal degradation, replacement is the only reliable corrective action.

Sourcing an original ABB 07BT62R1 from TOPNLMS allows maintenance teams to execute a like-for-like replacement without any PLC program modification, I/O address remapping, or hardware configuration change in the engineering tool (Automation Builder / PS501). The physical and electrical form factor is identical to the original factory installation, meaning the replacement can be completed during a planned maintenance window — or in an emergency shutdown scenario — with minimal engineering involvement.

For facilities managing the transition from older AC500 V1 racks to current-generation hardware, the 07BT62R1 also serves as a bridge component: it maintains full compatibility with legacy I/O modules while supporting the installation of newer AC500 V2/V3 CPU modules, extending the operational life of the existing control system by 5–10 years without a full panel redesign. This approach significantly reduces capital expenditure while maintaining system reliability and vendor support continuity.

All 07BT62R1 units supplied by TOPNLMS are original ABB components, individually tested for bus integrity, slot mechanical tolerance, and power rail continuity before dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Support FAQ

Q1: Is the 07BT62R1 compatible with both AC500 V1 and V2 CPU modules?
Yes. The 07BT62R1 basic module rack is mechanically and electrically compatible with the full range of AC500 CPU modules across V1 and V2 generations, including the PM554, PM564, PM573, PM583, PM591, PM592, and PM595 series. Always verify firmware alignment between the CPU and I/O modules after installation.

Q2: What pre-shipment testing is performed on each unit?
Every 07BT62R1 unit undergoes bus connector continuity testing, slot mechanical tolerance inspection, and power rail voltage verification before dispatch. Units that do not meet original ABB specifications are rejected. A test report is available upon request for critical infrastructure procurement.

Q3: How should the 07BT62R1 be handled during field replacement to avoid ESD damage?
The 07BT62R1 backplane contains ESD-sensitive bus circuitry. Always use a grounded wrist strap and ESD-safe mat during installation. Power down the entire rack and discharge any residual voltage before removing the old backplane. Avoid touching the bus connector pins directly.

Q4: What is the recommended spare parts stocking strategy for AC500-based facilities?
For facilities with 3 or more AC500 racks, we recommend maintaining a minimum of one 07BT62R1 backplane per rack type in local inventory. Given typical lead times for industrial spare parts, a 2–4 week buffer stock is advisable for critical production lines. Pairing the backplane with a spare CPU module and one set of high-utilization I/O modules provides comprehensive coverage against unplanned downtime events.
