Allen-Bradley 2094-BM05 Ruggedized Servo Axis Module for Harsh Environments

Product Overview

Allen-Bradley 2094-BM05 Ruggedized Servo Axis Module for Harsh Environments

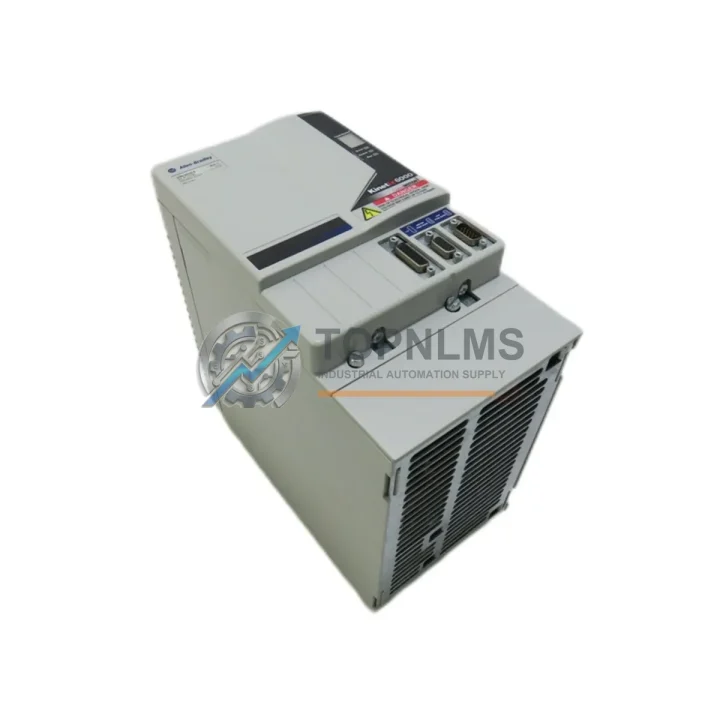

The Allen-Bradley 2094-BM05 is a high-performance servo drive axis module engineered for the Kinetix 6000 Multi-Axis Servo Drive system — one of Rockwell Automation’s most trusted motion control platforms deployed across demanding industrial environments worldwide. Designed to deliver precise, synchronized multi-axis motion control, the 2094-BM05 is built to sustain continuous operation in conditions characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference. Whether integrated into a high-throughput automotive assembly line, a continuous-process chemical plant, or a heavy-duty mining conveyor system, this axis module provides the motion accuracy and electrical resilience that mission-critical applications demand.

The 2094-BM05 operates as a shunt module within the Kinetix 6000 architecture, managing bus voltage regulation and energy dissipation across the servo axis network. It works in close coordination with the 2094-BC01-M01-S (Kinetix 6000 Integrated Axis Module) and the 2094-BMP5-S (Axis Module with Safe-Off) to form a complete, safety-rated motion control solution. In installations where functional safety is mandatory — such as those governed by IEC 62061 or ISO 13849 — the 2094-BM05 integrates seamlessly with Allen-Bradley GuardLogix safety PLCs and the 1756-L7xS Safety Controller series, enabling coordinated safe-torque-off (STO) and safe-stop functions without external safety relays.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated Kinetix 6000 servo system, the 2094-BM05 axis module does not operate in isolation — it is one component within a carefully coordinated ecosystem of motion, safety, power, and communication hardware. The 2094-BC01-M01-S Integrated Axis Module provides the primary drive intelligence for each servo axis, while the 2094-BMP5-S Axis Module with Safe-Off extends functional safety coverage across the drive rail. Bus power is supplied and regulated by the 2094-AC09-M02-S or 2094-AC05-M01-S Kinetix 6000 AC Line Filter and Power Module, ensuring clean, stable DC bus voltage even under fluctuating load conditions common in heavy industrial environments.

On the controller side, the 1756-L74 ControlLogix Processor coordinates all motion commands via the SERCOS II fiber-optic ring, providing deterministic, high-speed communication that is inherently immune to electromagnetic interference — a critical advantage in environments with large variable frequency drives (VFDs), arc welding equipment, or high-voltage switchgear nearby. The 1756-M08SE SERCOS Interface Module manages the fiber-optic motion network, while the 1756-EN2T EtherNet/IP Communication Module handles supervisory data exchange with SCADA systems and MES platforms.

For I/O integration, the 1756-IB16 Digital Input Module and 1756-OB16E Digital Output Module provide the field-level signal interface for limit switches, proximity sensors, and actuator feedback. In safety-critical zones, the 1791DS-IB12 GuardLink Safety I/O Module handles emergency stop circuits and light curtain inputs in compliance with IEC 62061 SIL 2 requirements. Power distribution within the control cabinet is managed by the 1606-XLP72E FLEX Power Supply, which delivers regulated 24 VDC to the I/O backplane and field devices with built-in overload and short-circuit protection.

Application in Critical Infrastructure

The Allen-Bradley 2094-BM05 has established a proven track record across the most demanding sectors of global industrial infrastructure. In oil and gas upstream operations, it drives the precision positioning of wellhead control actuators and pipeline valve automation systems, where unplanned downtime carries both safety and financial consequences measured in thousands of dollars per hour. Offshore platform installations rely on its vibration tolerance and wide operating temperature range to maintain servo performance despite constant mechanical stress and salt-laden air.

In mining and mineral processing, the 2094-BM05 controls conveyor drive positioning, crusher feed regulation, and flotation cell agitator systems — applications where dust ingress, shock loading, and continuous 24/7 operation are standard conditions. The module’s compliance with IEC 60068-2-6 vibration and IEC 60068-2-27 shock standards ensures structural integrity even when mounted in close proximity to heavy rotating machinery.

Power generation and utilities represent another core deployment environment. Thermal power plants use Kinetix 6000 servo systems for turbine blade pitch control, boiler feed pump regulation, and coal pulverizer positioning — all applications where the 2094-BM05’s precise bus voltage management prevents energy spikes that could damage sensitive instrumentation. Water treatment facilities deploy it in chemical dosing pump drives and filter press automation, where corrosive atmospheres and high humidity demand robust electrical insulation and sealed connector interfaces.

In steel and metallurgy, the 2094-BM05 supports rolling mill positioning systems, ladle transfer car drives, and continuous casting machine synchronization — environments where radiated EMI from induction furnaces and high-current bus bars can disrupt lesser servo systems. The module’s IEC 61800-3 Category C2 EMC compliance and SERCOS II fiber-optic communication architecture provide inherent immunity to conducted and radiated interference, maintaining motion accuracy even in the most electromagnetically hostile plant floors.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every Allen-Bradley 2094-BM05 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Coverage includes functional failure under normal operating conditions, defects in materials or workmanship, and firmware-related malfunctions. Each unit undergoes pre-shipment functional testing — including DC bus voltage regulation verification, SERCOS communication handshake testing, and thermal cycling checks — before dispatch. In the event of a warranty claim, TOPNLMS provides advance replacement or full refund, with return logistics coordinated by our technical team.

Q2: How do you verify authenticity and compatibility before shipment?
All units are sourced through verified industrial surplus and authorized distribution channels. Prior to shipment, each 2094-BM05 is inspected for catalog number accuracy, firmware revision, hardware revision label integrity, and physical condition. Compatibility is confirmed against the Kinetix 6000 System Design Guide (publication 2094-RM001) to ensure the module is appropriate for the customer’s specific power rail configuration (2094-PRSx series) and controller firmware revision. Customers are encouraged to provide their existing system catalog numbers for pre-sale compatibility verification.

Q3: Can this module be used as a direct field replacement in an existing Kinetix 6000 system?
Yes. The 2094-BM05 is a direct plug-in replacement for failed or end-of-life shunt modules within any Kinetix 6000 power rail assembly. No firmware re-flashing or controller re-configuration is required in most standard installations. TOPNLMS technical support can assist with revision-level matching and provide guidance on any parameter adjustments required in Studio 5000 Logix Designer if the replacement unit carries a different hardware revision than the original.

Q4: What is your lead time, and can you support long-term or repeat procurement?
In-stock units are dispatched within 1–3 business days from our Xiamen, China warehouse, with DHL Express, FedEx International Priority, and sea freight options available. For customers requiring ongoing supply — such as maintenance contractors managing multi-site Kinetix 6000 installations — TOPNLMS offers reserved stock agreements and priority allocation programs. Long-term procurement customers receive dedicated account management, advance notification of stock changes, and access to our technical pre-sales consultation service at no additional charge.
