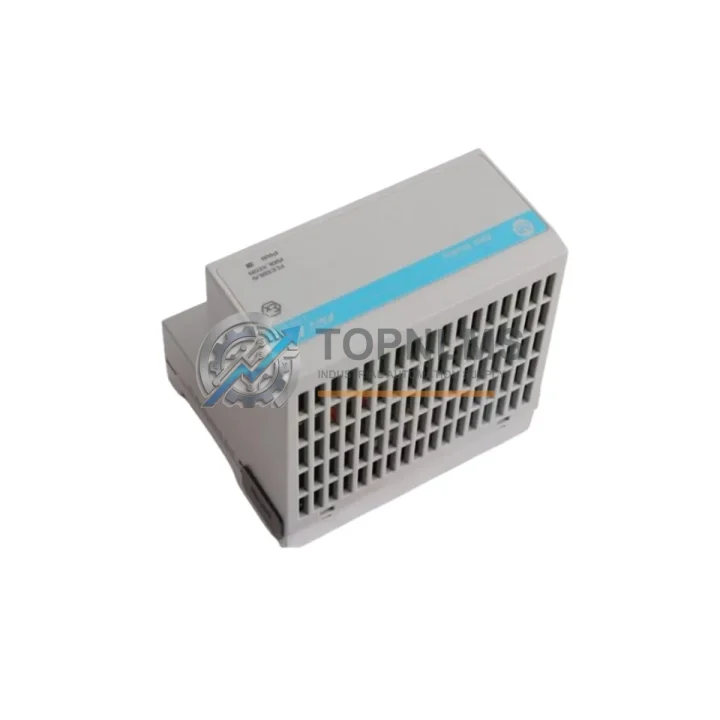

Allen-Bradley 1797-BIC Ruggedized Bus Isolator Module

Product Overview

Allen-Bradley 1797-BIC Ruggedized Bus Isolator Module for Harsh Industrial Environments

The Allen-Bradley 1797-BIC is a FLEX I/O Bus Isolator Module engineered for continuous, reliable operation in the most demanding industrial environments. Designed and manufactured by Rockwell Automation, this module provides critical electrical isolation between FLEX I/O adapter segments, protecting the entire control architecture from ground loops, voltage transients, and electromagnetic interference endemic to heavy industrial facilities. Whether deployed in a high-temperature steel mill, a dust-laden mining operation, or a chemically aggressive water treatment plant, the 1797-BIC delivers the signal integrity and system stability that mission-critical automation demands.

In modern distributed control architectures, bus isolation is not optional — it is a fundamental safety and reliability requirement. The 1797-BIC allows engineers to extend FLEX I/O networks across multiple power domains without compromising data integrity or exposing upstream controllers to downstream fault conditions. When a fault occurs on one segment, the isolator contains the disturbance, preventing cascade failures that could shut down an entire production line. This makes the 1797-BIC an indispensable component in any FLEX I/O system where uptime is measured in millions of dollars per hour.

The module integrates seamlessly into the broader Allen-Bradley FLEX I/O ecosystem. It works in conjunction with the 1794-ADN DeviceNet Adapter, the 1794-AENT EtherNet/IP Adapter, and the 1794-ACN15 ControlNet Adapter, enabling flexible network segmentation across all major industrial communication protocols. Within the I/O tier, the 1797-BIC pairs with digital input modules such as the 1794-IB16 and 1794-IA16, digital output modules including the 1794-OB16 and 1794-OA16, and analog modules like the 1794-IE8 and 1794-OE4, ensuring that every point in the I/O network benefits from the isolation protection the 1797-BIC provides.

In high-vibration environments such as compressor stations, offshore platforms, and heavy press lines, the 1797-BIC’s robust mechanical design maintains reliable backplane connectivity where lesser components would fail. Its operating temperature range accommodates the thermal extremes found in foundries, glass manufacturing, and cement production. The module’s immunity to conducted and radiated electromagnetic interference makes it equally suited for installation near variable frequency drives, large motor starters, and high-current bus bars — sources of EMI that routinely disrupt unprotected I/O systems.

From a system architecture perspective, the 1797-BIC enables engineers to design FLEX I/O networks that span multiple control cabinets, junction boxes, and field enclosures while maintaining a single logical I/O network under the supervision of a ControlLogix, CompactLogix, or MicroLogix controller. This distributed topology reduces wiring costs, simplifies troubleshooting, and supports the modular expansion strategies that modern industrial facilities require as production capacity grows.

For facilities operating under IEC 61511 functional safety requirements or NFPA 70E electrical safety standards, the isolation provided by the 1797-BIC contributes directly to the integrity of the safety instrumented system. By preventing fault propagation between I/O segments, it supports the separation of safety-critical and standard control functions within a shared physical infrastructure — a common requirement in oil and gas processing, chemical manufacturing, and power generation facilities.

TOPNLMS maintains verified stock of the Allen-Bradley 1797-BIC, sourced through established industrial supply channels. Every unit undergoes functional verification prior to shipment, including backplane communication testing and visual inspection for connector integrity. Units are shipped in anti-static packaging with full traceability documentation. A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Global shipping is available with lead times confirmed at order placement.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1797-BIC does not operate in isolation — it is one node in a layered protection strategy spanning the entire control system. In a typical heavy industrial control cabinet, the 1797-BIC works alongside the 1794-AENT EtherNet/IP adapter to segment the I/O network while maintaining high-speed communication with the supervisory controller. Digital output modules such as the 1794-OB16 drive solenoid valves, motor contactors, and pilot lights, while the 1794-IB16 collects discrete status signals from limit switches, proximity sensors, and safety interlocks — all protected from cross-segment fault propagation by the 1797-BIC.

On the analog side, the 1794-IE8 processes 4–20 mA signals from pressure transmitters, flow meters, and temperature sensors, feeding real-time process data to the ControlLogix controller. The 1794-OE4 drives analog positioners and control valves with the precision that continuous process control demands. In safety-instrumented applications, the 1797-BIC’s isolation capability supports the coexistence of standard and safety I/O within the same physical network, complementing dedicated safety relay modules and emergency shutdown systems that protect personnel and equipment in hazardous zones.

Power integrity is maintained through industrial DIN-rail power supplies rated for wide-input AC ranges, ensuring that voltage sags and surges on the facility power grid do not propagate into the I/O backplane. Surge protection devices installed at the cabinet entry point, combined with the galvanic isolation provided by the 1797-BIC, create a multi-layer defense against transient overvoltages. Communication integrity is further protected by shielded Ethernet cables and properly grounded cable trays, ensuring that the 1794-AENT adapter maintains deterministic communication with the controller even in high-EMI environments generated by variable frequency drives and large motor starters operating nearby.

Terminal base modules such as the 1794-TB3 and 1794-TB3S provide the physical wiring interface for field devices, and their compatibility with the 1797-BIC ensures that the isolation boundary is maintained all the way to the field wiring termination point. This end-to-end isolation architecture is what distinguishes a professionally engineered FLEX I/O system from an ad-hoc installation that is vulnerable to the electrical noise and ground potential differences that characterize large industrial facilities.

Application in Critical Infrastructure

In oil and gas processing facilities, the 1797-BIC enables FLEX I/O networks to span multiple hazardous area boundaries, supporting the distributed I/O architectures required by large compressor stations, gas processing trains, and pipeline pump stations. The module’s isolation capability is particularly valuable in facilities where intrinsically safe barriers and Zener diode isolators are used to protect field instruments in Zone 1 and Zone 2 classified areas, ensuring that the I/O backplane remains protected from fault currents that could otherwise compromise the safety instrumented system.

In mining operations, where vibration from blasting, heavy haulage, and crushing equipment creates a relentless mechanical stress environment, the 1797-BIC’s robust construction maintains reliable backplane connectivity in conveyor control systems, crusher automation, and ventilation control panels. The module’s wide operating temperature range accommodates the thermal extremes found in underground mines, where ambient temperatures can vary dramatically between surface and deep-level workings.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on FLEX I/O systems for balance-of-plant automation, auxiliary system control, and turbine protection. The 1797-BIC enables the segmentation of I/O networks across multiple switchgear rooms and control buildings, supporting the distributed control architectures that modern power plants require. In water treatment and wastewater facilities, the module’s resistance to high humidity and chemical vapors ensures reliable operation in pump stations, chemical dosing systems, and filtration control panels.

Metals and cement manufacturing present some of the harshest environments in industrial automation — extreme heat, heavy dust, intense vibration, and powerful electromagnetic fields from arc furnaces and large drive systems. The 1797-BIC’s isolation capability is essential in these environments, protecting the I/O network from the ground potential differences that arise between physically separated control cabinets in large plant buildings. In steel rolling mills and aluminum smelters, where continuous production lines cannot tolerate unplanned stops, the 1797-BIC’s fault-containment architecture is a direct contributor to overall equipment effectiveness.

Security & Quality FAQ

Q: What warranty coverage is provided with the Allen-Bradley 1797-BIC?
A: Every 1797-BIC shipped by TOPNLMS carries a 12-month warranty covering functional failure and manufacturing defects under normal operating conditions. If a unit fails within the warranty period, we provide replacement or full refund. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q: How is each unit tested before shipment?
A: All 1797-BIC units undergo functional verification prior to shipment, including backplane communication testing, visual inspection of connector pins and housing integrity, and verification of module identification data. Units are shipped in anti-static packaging with individual traceability documentation. We do not ship untested or uninspected units.

Q: Is the 1797-BIC compatible with my existing FLEX I/O system?
A: The 1797-BIC is compatible with all standard FLEX I/O terminal bases and adapters, including the 1794-ADN, 1794-AENT, 1794-ACN15, and 1794-ASB. It is supported by ControlLogix, CompactLogix, and MicroLogix controllers. If you have a specific system configuration or firmware version requirement, contact our technical team at [email protected] with your system details for confirmation before ordering.

Q: Can TOPNLMS support long-term supply and emergency replacement needs?
A: Yes. TOPNLMS maintains ongoing stock of the 1797-BIC and other FLEX I/O components to support both planned maintenance programs and emergency replacement requirements. We understand that unplanned downtime in critical infrastructure is unacceptable, and we prioritize fast order processing and same-day shipment for in-stock items. For facilities with high-availability requirements, we recommend discussing a consignment or reserved-stock arrangement with our sales team.
