Allen-Bradley 1794-ADN Ruggedized DeviceNet Adapter for Harsh Environments

Product Overview

Allen-Bradley 1794-ADN Ruggedized DeviceNet Adapter for Harsh Environments

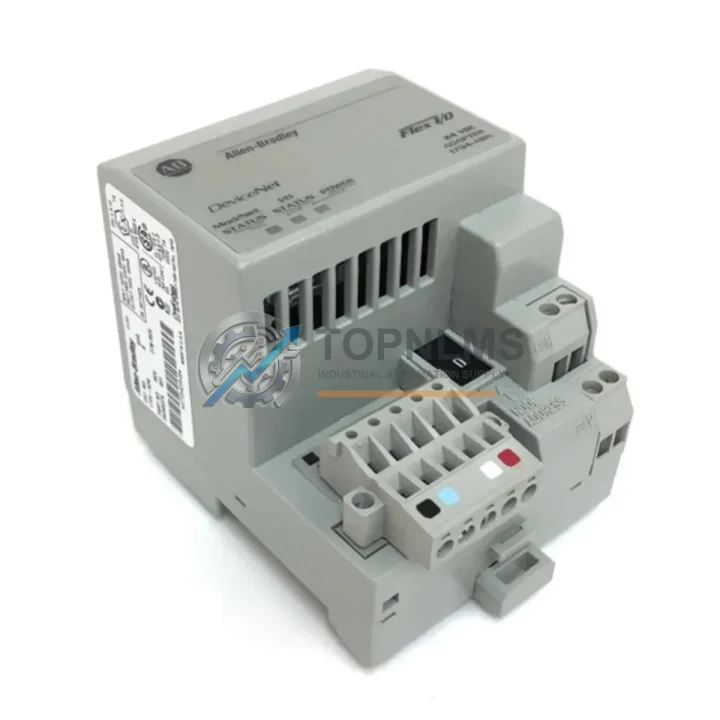

The Allen-Bradley 1794-ADN is a high-performance DeviceNet Adapter Module engineered for the FLEX I/O platform — one of Rockwell Automation’s most trusted distributed I/O architectures for demanding industrial control applications. Designed to operate reliably in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 1794-ADN delivers consistent network communication and I/O data exchange where conventional modules fail. Whether deployed on a continuous production line, inside a sealed control cabinet in a petrochemical facility, or mounted in a junction box on a mining conveyor system, this adapter module maintains deterministic DeviceNet communication without compromise.

At its core, the 1794-ADN serves as the network gateway between the DeviceNet fieldbus and the FLEX I/O terminal base assembly. It manages all scanner-to-adapter communication, coordinates polled and change-of-state I/O messaging, and provides real-time status feedback through onboard diagnostic LEDs. Its compact DIN-rail-mountable form factor integrates seamlessly into existing Allen-Bradley control architectures, making it an ideal drop-in replacement or system expansion component for engineers managing legacy and modern Rockwell Automation installations alike.

In high-vibration environments such as steel mills, cement plants, and heavy press lines, the 1794-ADN’s robust terminal base locking mechanism and conformal-coated PCB construction resist mechanical stress and corrosive atmospheres. When paired with FLEX I/O analog input modules such as the 1794-IE8 or digital output modules like the 1794-OB16, the adapter enables precise, low-latency I/O scanning across the DeviceNet network — critical for closed-loop control of variable frequency drives, servo systems, and process actuators. The module’s compatibility with Allen-Bradley 1747 SLC 500 controllers, 1756 ControlLogix PLCs, and 1769 CompactLogix systems ensures broad applicability across multi-generation plant architectures.

In oil and gas upstream and midstream facilities, where explosive atmospheres and Class I Division 2 zone requirements govern equipment selection, the 1794-ADN is frequently deployed within purged and pressurized enclosures alongside safety relay modules and intrinsically safe barriers. Its deterministic DeviceNet communication supports integration with safety-rated I/O modules and emergency shutdown (ESD) logic controllers, contributing to a layered protection strategy that meets IEC 61511 functional safety requirements. Operators in water treatment plants and power generation facilities similarly rely on the 1794-ADN to maintain uninterrupted SCADA communication across distributed pump stations and switchgear rooms, where network uptime directly impacts public safety and regulatory compliance.

The module’s DeviceNet interface supports data rates of 125 Kbps, 250 Kbps, and 500 Kbps, selectable via onboard rotary switches, allowing engineers to optimize network throughput based on cable length and node count. Up to eight FLEX I/O modules can be connected to a single 1794-ADN adapter, supporting a mix of digital, analog, and specialty modules including thermocouple input modules (1794-IT8), RTD input modules (1794-IR8), and high-speed counter modules (1794-HSC). This flexibility makes the 1794-ADN a central node in complex, multi-signal control cabinets serving metallurgical furnaces, chemical reactors, and automated packaging lines.

For facilities managing electromagnetic interference from large motor drives, welding equipment, or high-voltage switchgear, the 1794-ADN’s shielded DeviceNet port and isolated power supply input provide robust noise immunity. When used alongside Allen-Bradley 1794-PS13 or 1794-PS1 power supply modules, the system maintains stable 24 VDC logic power even under fluctuating plant supply conditions. Integration with Rockwell Automation’s RSNetWorx for DeviceNet configuration software enables rapid commissioning, node address assignment, and I/O mapping — reducing engineering time during both initial installation and post-maintenance recommissioning.

As a critical spare part and replacement module, the 1794-ADN offers significant procurement value. Many facilities operating Allen-Bradley FLEX I/O systems installed in the 1990s and 2000s continue to rely on this adapter as the backbone of their distributed I/O strategy. Maintaining a stocked spare reduces unplanned downtime risk — a single failed adapter on a continuous production line can halt output worth tens of thousands of dollars per hour. Our inventory is sourced from authorized distribution channels, subjected to functional power-on testing and communication verification prior to shipment, and backed by a 12-month replacement warranty covering manufacturing defects and functional failures under normal operating conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1794-ADN adapter is rarely deployed in isolation — it functions as the communication hub of a broader FLEX I/O node that typically includes multiple protection, control, and power components working in concert. In a typical control cabinet serving a heavy industrial process, the adapter interfaces with digital input modules such as the 1794-IB16 to monitor field device status signals from limit switches, pressure switches, and flow sensors. Digital output modules like the 1794-OB16 drive solenoid valves, motor starters, and indicator lamps based on PLC logic executed in a 1756-L85E ControlLogix controller.

For process measurement applications, analog input modules including the 1794-IE8 connect 4–20 mA transmitters measuring temperature, pressure, and flow, while the 1794-IT8 thermocouple input module handles direct thermocouple signals from furnace and reactor environments. In applications requiring high-speed pulse counting — such as encoder feedback from conveyor drives or turbine flow meters — the 1794-HSC high-speed counter module integrates directly into the same FLEX I/O node managed by the 1794-ADN.

Power integrity for the entire node is maintained by the 1794-PS13 power supply module, which conditions incoming 24 VDC plant power and distributes it across the terminal base assembly. In facilities where power quality is a concern — particularly near large variable frequency drives or arc furnaces — supplementary surge protection devices and line filters are installed upstream of the control cabinet to protect the 1794-ADN and its associated I/O modules from transient overvoltages. Safety-critical applications may also incorporate 1791DS safety I/O modules or GuardLogix safety controllers alongside the standard FLEX I/O node, creating a layered architecture that separates safety and standard control functions while sharing the same physical cabinet space.

Application in Critical Infrastructure

In oil and gas production facilities, the 1794-ADN is deployed in wellhead control panels and pipeline SCADA nodes where it aggregates valve position feedback, pressure transmitter data, and motor run status signals from field instruments distributed across hazardous areas. Its DeviceNet communication link to the plant DCS or safety instrumented system (SIS) ensures that process data reaches the control room with the determinism required for emergency shutdown decision-making.

In underground and open-cut mining operations, the adapter manages I/O for conveyor drive control panels, crusher automation systems, and ventilation fan controllers — all environments subject to extreme dust loading, mechanical shock from blasting operations, and wide ambient temperature swings. The module’s conformal coating and robust terminal base construction allow it to maintain reliable operation in these conditions when properly housed in NEMA 4X or IP65-rated enclosures.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on the 1794-ADN to interface distributed I/O nodes in turbine control systems, boiler management systems, and balance-of-plant automation. Water and wastewater treatment plants deploy the module in pump station control panels and chemical dosing systems, where continuous unattended operation and remote SCADA visibility are essential for regulatory compliance and public health protection. In steel mills and aluminum smelters, the adapter supports I/O nodes on rolling mill drives, casting machine controls, and furnace automation systems — applications where a single communication failure can result in costly product loss and equipment damage.

Security & Quality FAQ

Q: What does the 12-month warranty cover?
A: Our 12-month warranty covers functional failures and manufacturing defects under normal operating conditions. If the 1794-ADN fails to perform its specified DeviceNet communication and I/O adapter functions within 12 months of shipment, we will provide a replacement unit at no additional cost. The warranty applies to units installed and operated within the manufacturer’s specified environmental and electrical ratings.

Q: How is each unit tested before shipment?
A: Every 1794-ADN unit undergoes a power-on functional test prior to shipment. This includes verification of DeviceNet network communication, onboard LED status indication, and physical inspection of the terminal base connector and module locking mechanism. Units that do not pass functional verification are quarantined and not offered for sale.

Q: Is the 1794-ADN compatible with my existing FLEX I/O system and ControlLogix controller?
A: Yes. The 1794-ADN is compatible with the full range of FLEX I/O terminal bases and I/O modules, and communicates with any DeviceNet scanner module installed in a 1756 ControlLogix, 1769 CompactLogix, or 1747 SLC 500 chassis. It is configured using RSNetWorx for DeviceNet software and is fully supported in Studio 5000 Logix Designer environments. If you have a specific firmware revision or system architecture question, contact us before ordering.

Q: Can you support long-term or repeat supply of the 1794-ADN?
A: Yes. We maintain ongoing inventory of the 1794-ADN and other FLEX I/O components to support both emergency replacement and planned maintenance procurement programs. For facilities managing large installed bases of Allen-Bradley FLEX I/O systems, we can discuss blanket order arrangements and reserved stock agreements to ensure supply continuity. Contact us at [email protected] or +86 18359293191 to discuss your requirements.
