A legacy CNC control replacement is often misidentified because the cabinet contains several boards, operator interfaces, axis cards, and machine-specific cables. The E70CB15B model reference is only useful when the machine control, axis count, software, connectors, and replacement scope are clear. A close board can still produce a long commissioning delay.
TOPNLMS focuses on model evidence because older CNC systems depend on machine-specific configuration. The right RFQ distinguishes a direct replacement from an upgrade path and makes the software, wiring, and acceptance work visible.
Record the MELDAS 70 control context
Capture control model, axis count, board position, CPU or CNC role, operator interface, power, connectors, firmware, machine builder, and project or parameter backup.
The live Mitsubishi E70CB15B MELDAS 70 reference is a product match for an RFQ. Compare it with the installed board, machine control, connector, and upgrade scope before approval.

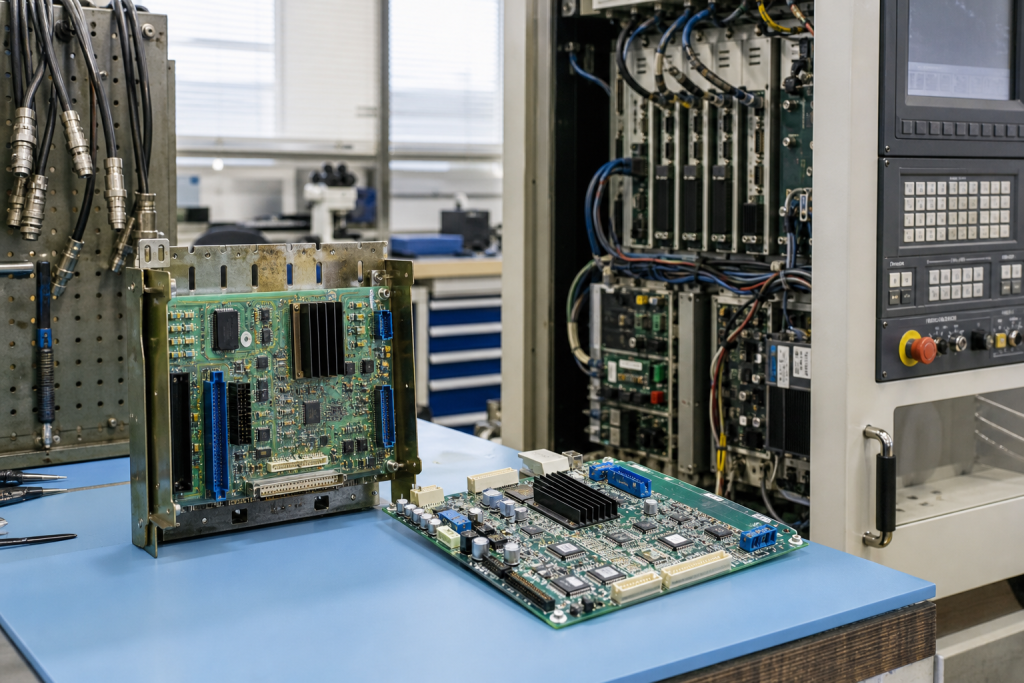

Photograph board label, rack position, connectors, cable ends, power, HMI, axis interface, and cabinet context. Include the machine model and safe error evidence.
Separate replacement from upgrade
A direct replacement may preserve wiring and software. An upgrade may require new configuration, cables, parameter conversion, operator-interface changes, axis tests, and production trials. Make that distinction visible to procurement.
If the HMI is included in the scope, the Pro-face PS3651A reference can be a separate operator-interface lead, not proof that it replaces the CNC control.
Ask for exact, repair, replacement upgrade, and engineering review options with actual-item photos, condition, firmware, software, accessories, and warranty.
Acceptance must prove the machine cycle
After replacement, verify power, CNC recognition, parameters, axes, homing, limits, spindle or feed functions, HMI, alarms, interlocks, and the approved test cycle.
Mark the item exact, conditional, upgrade candidate, bench-only, or engineering review required.
Save board labels, machine model, backup reference, cable evidence, approved settings, and final test record for the next CNC event.
Build the RFQ around the installed function
A useful spare request begins with the installed function, not only a familiar brand name. State what the device does, where it sits, what it connects to, and what failure would stop or blind the process. Then add the exact label, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.
Separate an exact replacement from a possible substitute, repair exchange, bench item, and migration candidate. These options may all be commercially useful, but they do not carry the same approval burden. An exact spare may support a short outage window. A substitute may need wiring changes, parameter review, software work, or a production trial before it can be counted as recovery stock.
The product references in this article are live catalog examples, not permission to skip engineering checks. Compare the product page with the installed label and the plant record. If a suffix, connector, voltage, protocol, firmware family, or mechanical interface differs, keep the item conditional until the responsible engineer closes that gap.
Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. A clean-looking item is not automatically a field-ready spare, and an item that powers up is not automatically accepted by the control or protection function.
Keep the approved catalog and RFQ reference with the maintenance record, but do not let a catalog title replace the installed evidence. The useful record is the combination of model, function, interface, condition, test requirement, and decision owner.
Review the spare before the maintenance window, not only after a failure. Confirm that the item is still physically present, that packaging and accessories are intact, that the backup or test procedure is available, and that the responsible engineer is still named.
When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it. This may include a drawing comparison, firmware review, bench test, dimensional check, protection test, communication test, or production trial.
The final decision should be visible to stores, procurement, maintenance, and operations. Use plain status labels such as exact replacement, approved substitute, repair exchange, bench-only, or engineering review required.
FAQ
What must match on an E70CB15B spare?
Match MELDAS control role, board position, machine, axis count, connectors, firmware, parameters, and replacement scope.
Is an upgrade the same as a replacement?
No. An upgrade can require new software, wiring, parameters, HMI, axis tests, and production trials.
What should the RFQ include?
Send board and cabinet photos, machine model, error evidence, backup status, condition, software scope, and deadline.
What proves CNC recovery?
CNC recognition, parameters, axes, homing, limits, spindle or feed, HMI, alarms, interlocks, and the approved cycle.
Send TOPNLMS the E70CB15B label, MELDAS cabinet photos, machine model, backup status, and deadline. We can help separate direct replacement from upgrade risk.
Before approval, record what the supplier cannot determine from a catalog page. Unknown firmware, missing drawings, unclear terminal scope, incomplete accessories, and untested condition should remain open items. This keeps the quote honest and gives engineering a short review list before the maintenance window.
A useful record also states what the supplier cannot determine from a catalog page. Unknown firmware, missing drawings, unclear terminal scope, incomplete accessories, and untested condition should be written as open items so the quote remains honest and the plant has a short list of questions to close before the equipment is needed.
