Remote process units often combine DCS I/O with vibration or condition-monitoring signals that operations only notice when the unit will not restart. A useful spare plan has to connect Yokogawa analog channels, transmitter paths, terminal wiring, diagnostics, and the site test a field crew can actually perform.
TOPNLMS readers support assets where a failed loop or monitoring channel can require travel, permits, and a short repair window. A product-backed RFQ reduces the chance that the crew arrives with the wrong board, missing terminal evidence, or no way to prove the channel.
Define The Analog Channel
Record channel number, signal type, terminal wiring, loop power, field device tag, cabinet location, diagnostic state, alarm history, and the operating consequence of the missing signal.

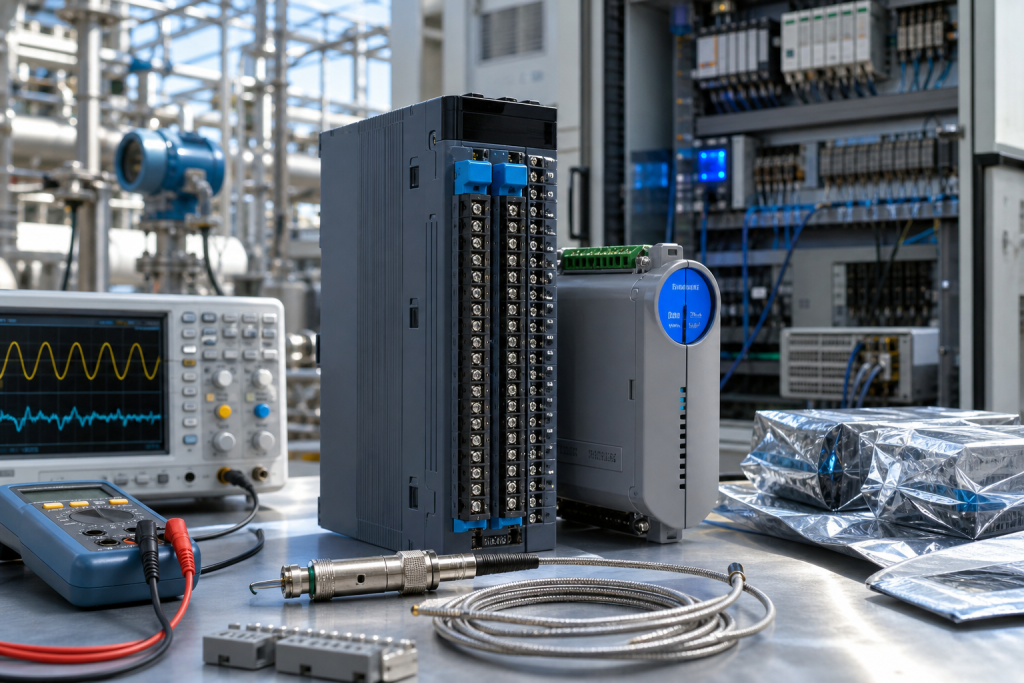

The live Yokogawa AAT141-S03 S2 CENTUM analog I/O spare is the product match when remote recovery depends on DCS channel evidence.
Photograph module labels, terminal blocks, field cable tags, loop drawings, cabinet environment, and the operator trend or alarm before ordering.
Vibration Signals Need A Chain View
Vibration recovery can involve transmitter, probe, cable, power, terminal, monitor input, and alarm thresholds. The RFQ should identify which part of the chain is suspected.
The related PROVIBTECH TM0182-A50-B00-C00 vibration transmitter replacement is relevant when condition-monitoring evidence is part of the same remote-unit restart.
Ask suppliers for actual photos, condition, connector state, test evidence, accessory scope, and any substitute limits before sending a field crew.
Acceptance Should Be Field Practical
After replacement, verify module recognition, input value, loop power, transmitter signal, alarm behavior, SCADA visibility, and a controlled process or vibration-channel test.
If the channel remains wrong, review sensor health, cable shielding, terminal seating, loop power, scaling, transmitter configuration, and DCS settings before rejecting the spare.
Store site photos, channel list, transmitter evidence, test readings, and operations approval with the spare record.
RFQ Evidence That Makes The Spare Usable
Send module labels, terminal photos, channel list, transmitter or probe details, site condition, test scope, and recovery deadline.
A remote-unit RFQ should identify what the field crew must carry, including terminals, cables, test leads, and configuration evidence.
For substitutes, require review of channel range, probe path, power, terminals, scaling, and site acceptance testing.
A strong spare request does not start with the cheapest matching description. It starts with the installed function, the exact hardware identity, the accessories needed to install it, and the acceptance test that will prove the plant can run again.
That discipline matters more as legacy automation fleets age. Similar modules can differ by firmware, connector, terminal base, memory device, communication option, environmental rating, or configuration dependency. Those differences are easy to miss when the buyer only sends a copied model family.
Actual-item photos remain one of the most useful controls. Front labels, side labels, connector faces, terminal blocks, memory cards, rack slots, cable tags, and LED states often expose the difference between a usable spare and a part that will create another maintenance delay.
Condition language should also be clear. Factory sealed, new surplus, refurbished, repaired exchange, tested used, and untested used items are not equal. Ask what was tested, what accessories are included, and what still has to be validated at site.
The RFQ should name the fallback path before the order is placed. If a substitute fails bench or field acceptance, the plant should know whether it can reinstall the old item, use a repaired exchange, isolate a noncritical function, or escalate the migration plan.
Receiving inspection should repeat the same checks used in the RFQ. Compare photos, labels, connector condition, accessory scope, and visible damage before the item enters stores as a critical spare.
For shutdown work, keep the spare evidence with the maintenance package. A useful record includes the supplier response, approved photos, configuration notes, test results, and the name of the engineer who accepted any substitution risk.
Good documentation also improves the next purchase. If the same platform appears in several lines or units, a clean record prevents each engineer from rediscovering the same suffix, cable, firmware, or terminal detail under outage pressure.
This is not paperwork for its own sake. It is the practical bridge between procurement speed and engineering confidence, especially where obsolete PLC, DCS, SIS, or monitoring hardware still protects production.
When lifecycle pressure is already visible, record it without exaggeration. Scarcity, weak test evidence, missing accessories, and frequent substitution requests are sourcing facts that help justify a planned migration without inventing unsupported claims.
The final purchase decision should compare availability, condition, test evidence, accessory completeness, shipping route, and acceptance risk together. A fast spare that cannot pass the site test is not truly fast.
Where possible, ask maintenance, controls, reliability, and purchasing to agree on this evidence before the outage. One shared checklist prevents late arguments about whether the spare is electrically correct, operationally useful, and acceptable for the risk carried by the asset.
FAQ
What must match on a Yokogawa analog spare?
Match module identity, channel role, signal range, terminal scope, loop power, diagnostics, and field test method.
Why include vibration transmitter evidence?
Because the DCS channel can be healthy while the transmitter, probe, cable, or power path remains faulty.
What should the RFQ include?
Send labels, terminal photos, channel list, transmitter details, condition requirement, and site deadline.
What proves recovery?
Stable input value, healthy diagnostics, restored transmitter signal, correct alarms, SCADA visibility, and approved site test.
Send TOPNLMS the Yokogawa labels, terminal photos, channel list, vibration transmitter evidence, condition requirement, and site deadline. We can help prepare a remote-unit spare RFQ.
