A familiar front panel is a poor substitute for a turbine-control specification. Two Woodward controllers can look closely related and even share a nominal supply range while serving different control applications. That makes a photograph useful for identification, but dangerous as the main basis for approving a spare.
The distinction between legacy 505 and 505E controls is a good example. Before purchasing, establish whether the requirement concerns the turbine’s speed/load control arrangement alone or an application with controlled extraction or admission. The answer belongs in the machine documentation, not in a seller’s interpretation of the enclosure.
Start with the application, then the part number
Woodward’s 505 manual 85017 describes the legacy 505 control and identifies 9907-164 as a low-voltage DC version with an 18-32 VDC supply range. Its 505E manual 85018 addresses extraction/admission steam-turbine control and identifies 9907-167 as an 18-32 VDC version. These are manual references for specific legacy products, not a claim that all later products bearing similar family names have identical specifications.
The immediate lesson is limited but important: matching supply range does not establish matching control duty. A procurement comparison that checks only power input and front-panel appearance can miss the feature that defines the turbine application.
Obtain the installed controller’s complete label and the turbine’s approved control description. Then confirm which manual revision and configuration records apply. If the documentation is incomplete, treat that as an engineering question before asking a supplier to nominate a substitute.
Why extraction or admission changes the question
A turbine that participates in a process-steam system may have operating obligations beyond electrical or mechanical load. The control arrangement must reflect the actual turbine and process design. Purchasing cannot establish that arrangement from an inventory family name or from the existence of an additional pressure instrument.
Ask the turbine specialist to identify the controlled variables, valve arrangement, external signals and operating modes required by the installed application. The aim is not to redesign the control system inside an RFQ. It is to preserve the agreed application boundary so a hardware offer can be evaluated against something definite.
Do not use this comparison as instructions to change valve settings, protection functions, trip arrangements or operating limits. Those decisions require the turbine manufacturer’s documentation, qualified engineering and the site’s approved procedures. A spare article cannot replace a complete operating or commissioning manual.
Interpret sourcing pages as references, not substitution approvals
The Woodward 9907-164 sourcing reference is relevant when the approved requirement identifies that particular legacy 505 version. Generic “replacement” or “upgrade” language does not prove that it replaces another controller in a particular turbine.
Likewise, the Woodward 9907-167 sourcing reference should be evaluated using the 505E identity and applicable OEM documentation. Any generic compatibility wording in a catalog URL or heading is not an engineering approval for a governor, actuator or turbine system.
For either item, ask for the actual offered label, condition and agreed test evidence. State the required part number without dropping the suffix. Do not allow the common supply range to become shorthand for “equivalent unit,” and do not assume that an offered controller contains the plant’s authorized settings.
Keep four evidence groups together
The first group is hardware identity: full part number, serial information, visible revision details and the applicable supply version. The second is application identity: the turbine and process duty, approved control description and the responsible engineering authority.
The third group is configuration evidence. Identify the authorized settings or application records and the approved method for verifying them. A controller that powers up successfully may still lack the correct plant-specific configuration. Keep that distinction visible in both the quotation and the maintenance work package.
The fourth group is acceptance scope. Specify which bench checks are required, which checks depend on a qualified system setup, and what remains for site commissioning. A supplier report should not be described as a complete turbine acceptance unless that is genuinely the contracted and performed scope.
A receiving decision that avoids forced improvisation
At receipt, compare the delivered label with the approved order before adding the unit to usable stock. Confirm that the accompanying evidence refers to that unit and that exclusions remain visible. An unresolved mismatch should trigger a documented hold, not a plan to investigate after the next turbine outage begins.
Keep the spare associated with its approved application record. If engineering changes the installed arrangement, review the spare at the same time. Otherwise the warehouse can retain an apparently correct part number while the supporting configuration and acceptance assumptions become stale.
For plants maintaining more than one turbine, avoid pooling controllers merely because operators recognize the same front panel. A shared spare arrangement needs explicit engineering approval for the covered applications, configuration handling and acceptance process. Convenience is not evidence of interchangeability.
Questions about 505 and 505E spares
Are 9907-164 and 9907-167 interchangeable because both use low-voltage DC?
No interchangeability follows from the shared 18-32 VDC range. The referenced manuals identify different control applications. Use the exact installed requirement and an authorized engineering assessment rather than the power specification alone.
Does every turbine with an extraction connection need the same 505E configuration?
No. The actual turbine design and approved control arrangement determine the requirement. A process connection or a family label does not define the complete control application, settings or permissible operating behavior.
Can a powered bench test confirm the controller is ready for our turbine?
It can provide evidence within its defined scope, but it does not independently establish the correct plant configuration or complete system behavior. State the remaining engineering and commissioning obligations before treating the spare as deployment-ready.
What should accompany a Woodward spare inquiry?
Provide the complete label, required part number, quantity, condition, destination and applicable application description. Identify any required test evidence and the engineer who can resolve suitability questions. Do not send confidential configuration data unless necessary and authorized.
TOPNLMS can help clarify a 9907-series sourcing inquiry around the exact hardware identity and requested evidence. Send the installed label and approved requirement so a familiar-looking controller does not become an unreviewed change to the turbine application.

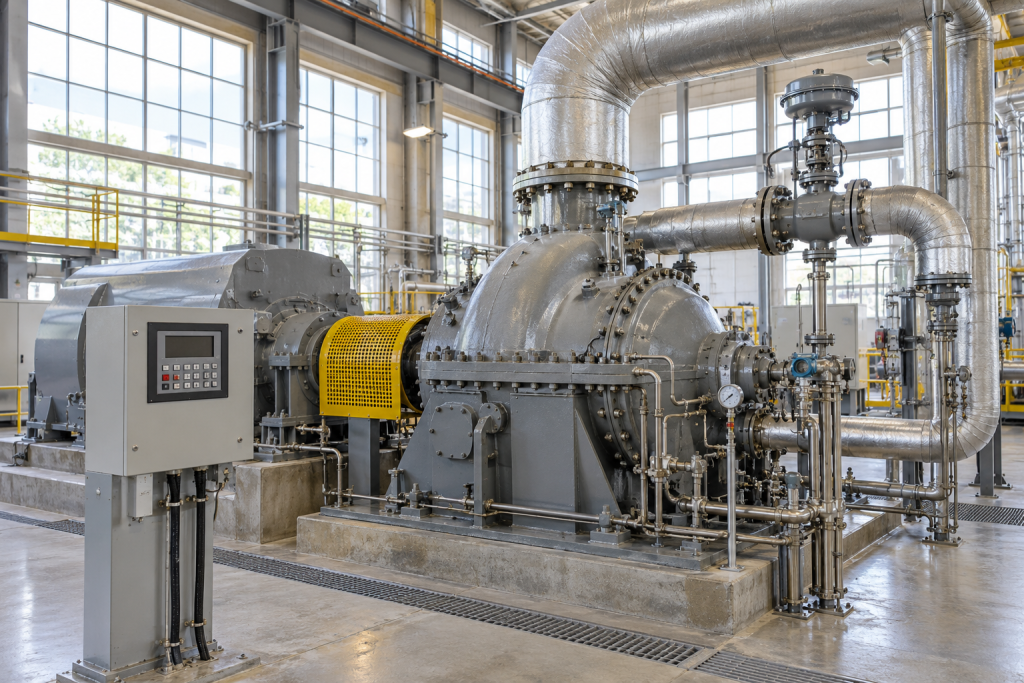

Image: AI-generated editorial illustration, not an exact product photograph or installation reference.
