ZIEHL-ABEGG RH71M-6DK.7Q.1R Original Industrial Spare RH71M

Product Overview

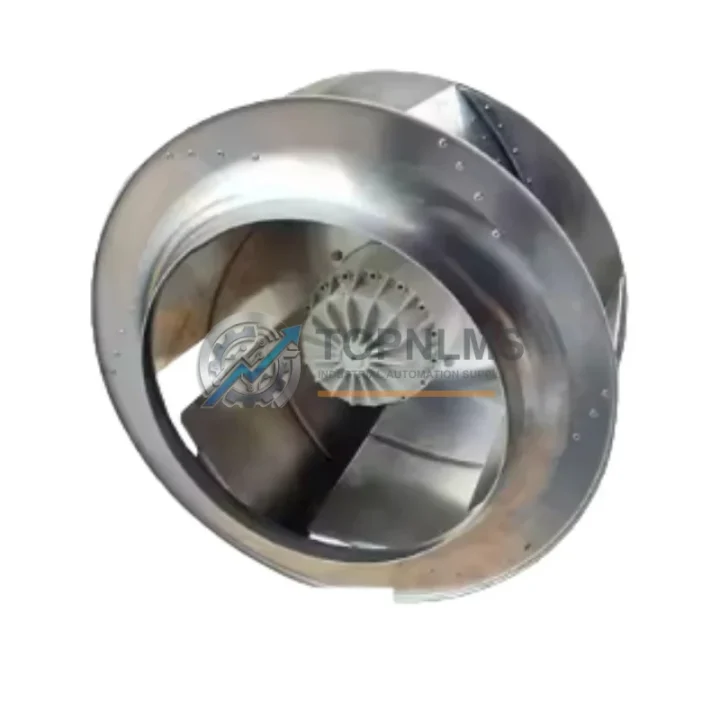

ZIEHL-ABEGG RH71M-6DK.7Q.1R Original Industrial Spare RH71M

The ZIEHL-ABEGG RH71M-6DK.7Q.1R is a heavy-duty 710mm industrial axial fan engineered for continuous, high-demand operation in manufacturing plants, process cooling systems, HVAC infrastructure, and industrial control cabinet ventilation. As a genuine original spare part from ZIEHL-ABEGG’s trusted RH71M series, this unit delivers the airflow performance, motor reliability, and dimensional compatibility that maintenance engineers depend on when system uptime is non-negotiable.

Whether you are managing a scheduled shutdown, responding to an unexpected fan failure, or building a strategic spare parts inventory for a critical production line, the RH71M-6DK.7Q.1R provides a direct, drop-in replacement solution that eliminates the risk of prolonged downtime caused by sourcing delays or compatibility mismatches. Its 6-pole EC/AC motor design ensures energy-efficient operation while maintaining the high static pressure and airflow volume required in demanding industrial environments.

Critical Technical Specs Table

Preventive Maintenance Strategy

A fan failure in a critical cooling circuit rarely occurs in isolation. When the RH71M-6DK.7Q.1R is flagged for replacement during a scheduled inspection or emergency shutdown, experienced maintenance teams use the opportunity to audit the entire ventilation and thermal management circuit. This approach minimizes repeat interventions and extends the operational life of the surrounding system.

During a typical RH71M fan replacement, it is advisable to simultaneously inspect the ZIEHL-ABEGG FE071-6EK.4I.V7 or similar EC fan controller modules that govern variable-speed operation. These controllers regulate motor speed in response to thermal load signals and are subject to the same environmental stresses as the fan itself. A worn or drifting controller can cause premature motor failure even after a new fan is installed.

The power supply feeding the fan circuit should also be verified. Industrial 24VDC or 48VDC switch-mode power supplies — such as those from the SITOP or Phoenix Contact QUINT series — can develop output ripple or voltage sag over time, which stresses EC motor electronics. Replacing or load-testing the power supply during the same maintenance window prevents a secondary failure within weeks of the fan swap.

Thermal sensors and PT100 or NTC temperature probes mounted near the fan inlet or motor housing should be recalibrated or replaced if they have been in service for more than three years. Inaccurate temperature readings can cause the control system to under-speed the fan, leading to thermal accumulation in the cabinet or process enclosure.

For control cabinet installations, the terminal blocks and DIN rail mounting hardware securing the fan wiring should be inspected for oxidation, loose connections, or heat discoloration. Brands such as Phoenix Contact UK 6 or Weidmüller WDU 6 terminal blocks are commonly found in the same cabinets as ZIEHL-ABEGG fans and should be part of any comprehensive cabinet audit.

If the fan is part of a frequency-converter cooling circuit — for example, cooling a Siemens SINAMICS G120 or ABB ACS880 variable frequency drive — the drive’s internal temperature log should be reviewed before and after the fan replacement to confirm that thermal performance has been restored to specification. VFD overtemperature events logged prior to the fan failure may indicate that the drive’s own heat sink fins require cleaning or that the drive’s internal cooling fan (a separate, smaller unit) also needs replacement.

Completing the maintenance checklist with a review of filter mats, anti-vibration mounts, and flexible duct connectors associated with the RH71M installation ensures that the new fan operates within its designed acoustic and mechanical parameters from day one, protecting both the motor bearings and the surrounding structural components.

Strategic Replacement Solutions

The ZIEHL-ABEGG RH71M-6DK.7Q.1R is designed as a long-life industrial component, but aging infrastructure, discontinued procurement channels, or OEM system upgrades can create sourcing challenges. TOPNLMS maintains verified stock of this model to support facilities that cannot afford extended lead times from the original equipment manufacturer.

For plants operating legacy cooling systems originally specified with earlier RH71M variants, the RH71M-6DK.7Q.1R provides a functionally equivalent replacement that preserves the original mounting footprint, electrical interface, and airflow characteristics. This means no structural modifications to the fan housing, no rewiring of the motor terminal box, and no reprogramming of the associated EC controller — a critical advantage when the replacement must be completed within a planned maintenance window of four to eight hours.

Facilities managing multiple cooling circuits across a large plant floor benefit from consolidating their spare parts inventory around a single verified model. Stocking two to four units of the RH71M-6DK.7Q.1R as on-site spares eliminates the risk of a single-point failure cascading into a multi-day production halt. The 12-month warranty from TOPNLMS applies to all stocked units from the date of shipment, not the date of installation, giving procurement teams flexibility in building buffer inventory without warranty exposure.

For systems where the original RH71M-6DK.7Q.1R has been superseded by a newer ZIEHL-ABEGG model number, our technical team can confirm cross-reference compatibility and advise on any wiring or parameter adjustments required to integrate the replacement unit into the existing control architecture.

Support FAQ

Q1: What does the 12-month warranty cover for the RH71M-6DK.7Q.1R?
The 12-month warranty covers manufacturing defects, motor winding failures, bearing defects, and impeller imbalance under normal industrial operating conditions. It does not cover damage caused by incorrect installation voltage, blocked airflow, or physical impact. Warranty claims are processed with photographic documentation and a brief fault description submitted to [email protected].

Q2: How is the unit tested before shipment?
Every RH71M-6DK.7Q.1R unit undergoes a pre-shipment functional test including motor run-up verification, current draw measurement, vibration check, and visual inspection of the impeller and terminal box. A test record is available upon request for quality-critical procurement processes.

Q3: Is the RH71M-6DK.7Q.1R compatible with my existing EC controller and VFD?
The RH71M-6DK.7Q.1R is compatible with standard ZIEHL-ABEGG EC controller interfaces and is suitable for use with variable frequency drives operating within the motor’s rated voltage and frequency range. For specific compatibility with third-party VFDs such as Siemens SINAMICS, ABB ACS, or Danfoss FC series, please provide your drive model number and we will confirm compatibility before shipment.

Q4: Can I order multiple units for strategic spare parts inventory?
Yes. TOPNLMS supports bulk procurement for maintenance departments and MRO distributors. Volume pricing is available for orders of two or more units. All units in a bulk order are shipped from the same verified batch, ensuring consistent manufacturing revision and dimensional tolerances across your spare parts stock. Contact us at [email protected] or +86 18359293191 to discuss your inventory requirements.
