YOKOGAWA VM1*D S9210AQ-03 Original Industrial Spare CENTUM VP Compatible

Product Overview

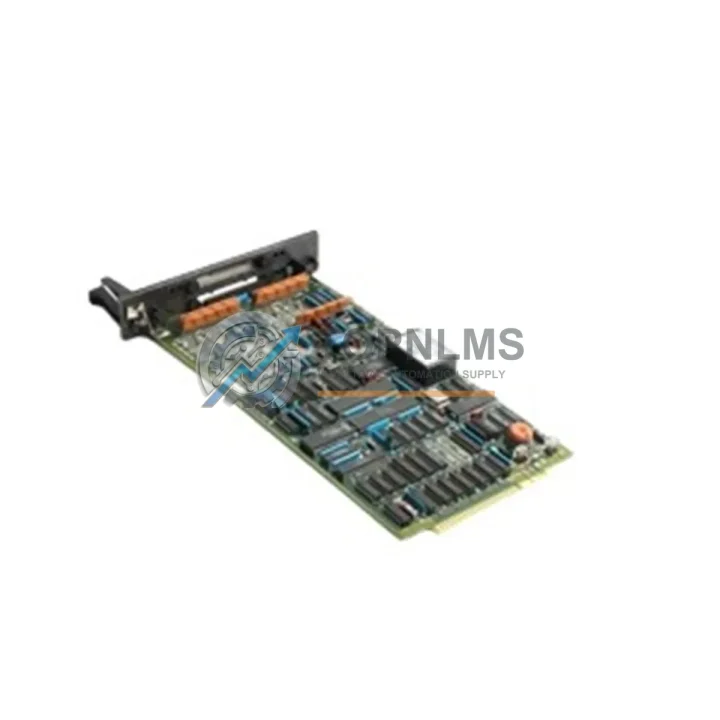

YOKOGAWA VM1*D S9210AQ-03 Original Industrial Spare — CENTUM VP System Stability Assured

The YOKOGAWA VM1*D S9210AQ-03 is an original analog I/O card engineered for the CENTUM VP Distributed Control System (DCS). In process industries — refining, petrochemical, power generation, pulp and paper, and pharmaceutical manufacturing — the CENTUM VP platform underpins continuous production loops where unplanned downtime translates directly into lost revenue and safety risk. Maintaining a verified, ready-to-deploy spare of the VM1*D S9210AQ-03 is not optional; it is a fundamental pillar of any credible maintenance strategy.

This module handles analog signal acquisition and output within the CENTUM VP field control station (FCS). It interfaces with field transmitters, control valves, and process analyzers, converting 4–20 mA or voltage signals into digital process values that the controller uses for closed-loop regulation. A failed or degraded analog I/O card can cause erratic PID behavior, false alarms, or complete loop dropout — scenarios that force emergency shutdowns and trigger costly root-cause investigations. Stocking the VM1*D S9210AQ-03 as a certified original spare eliminates the lead-time risk that makes these events so damaging.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your CENTUM VP Investment

A disciplined preventive maintenance (PM) program for a CENTUM VP system extends well beyond replacing a single analog I/O card. When a VM1*D S9210AQ-03 is flagged for replacement — whether due to channel drift, intermittent signal loss, or a scheduled lifecycle swap — maintenance engineers should treat the intervention as an opportunity to audit the entire field control station and its associated electrical infrastructure.

Begin with the FCS node unit power supply modules (such as the YOKOGAWA PW481 or equivalent redundant power units). A degraded power supply introduces voltage ripple that accelerates analog card aging and causes subtle measurement errors long before a hard failure occurs. Inspect and, if approaching end-of-life, replace the power supply during the same maintenance window to avoid a second unplanned outage.

Next, examine the I/O signal cables and field wiring terminals connected to the analog card slots. Corroded terminal blocks, loose ferrules, or damaged shielded cables are a leading cause of analog signal noise and channel-to-channel crosstalk. Replacing worn terminal strips and re-terminating field cables at the same time as the VM1*D S9210AQ-03 swap ensures the new card operates in a clean signal environment from day one.

The CENTUM VP communication modules — including Vnet/IP interface cards and ESB bus couplers — should be inspected for firmware currency and physical connector integrity. A communication module operating on outdated firmware can introduce latency in process value updates, masking the true performance of a newly installed analog I/O card and complicating post-maintenance validation.

For plants running hybrid architectures, the YOKOGAWA relay output modules and digital I/O cards in adjacent FCS slots deserve attention. Digital output channels driving solenoid valves or motor starters experience contact wear that is invisible during normal operation but becomes apparent during emergency shutdown testing. Scheduling a contact resistance check alongside the analog card replacement adds minimal time while significantly reducing the risk of a hidden failure.

Signal conditioning equipment in the marshalling cabinet — including signal isolators, Zener barriers, and galvanic isolators — should be tested for isolation resistance and output accuracy. These devices protect the CENTUM VP I/O cards from field-side transients; a degraded isolator can allow surge energy to reach the new VM1*D S9210AQ-03 and shorten its service life dramatically.

Finally, review the CENTUM VP engineering station (EWS) backup and confirm that the current FCS configuration, including channel tag assignments, alarm setpoints, and PID tuning parameters, is archived before the card swap. A verified configuration backup transforms a potentially disruptive replacement into a routine, fully reversible maintenance event.

Strategic Replacement Solutions: Minimizing Downtime, Preserving System Compatibility

The VM1*D S9210AQ-03 is a direct original replacement for aging analog I/O cards within the CENTUM VP FCS. Unlike third-party alternatives that require re-engineering of tag databases or signal scaling, the original YOKOGAWA card slots into the existing node unit without configuration changes, preserving all channel assignments, alarm limits, and historian tag mappings. This plug-and-play compatibility is critical in facilities where the CENTUM VP system has been in service for ten or more years and where the engineering documentation for custom workarounds may no longer be readily available.

For plants managing a fleet of CENTUM VP stations across multiple process units, a strategic sparing approach — holding one or two VM1*D S9210AQ-03 cards per FCS cluster — reduces mean time to repair (MTTR) from days to hours. When combined with a documented hot-swap procedure and a pre-tested replacement card, maintenance teams can restore full loop control within a single shift, avoiding the production losses associated with extended partial-operation modes.

Older CENTUM CS 3000 installations migrating toward CENTUM VP can also leverage the VM1*D S9210AQ-03 as part of a phased modernization strategy, replacing legacy analog cards incrementally while retaining the existing field wiring infrastructure. This approach spreads capital expenditure across multiple budget cycles while progressively improving system reliability and diagnostic capability.

Every unit shipped from TOPNLMS undergoes functional testing across all analog channels, insulation resistance verification, and visual inspection for component integrity. Units are dispatched with full anti-static packaging and are accompanied by a test report. The 12-month warranty covers functional failure under normal operating conditions, providing procurement teams with the confidence needed to approve the purchase without extended vendor qualification processes.
