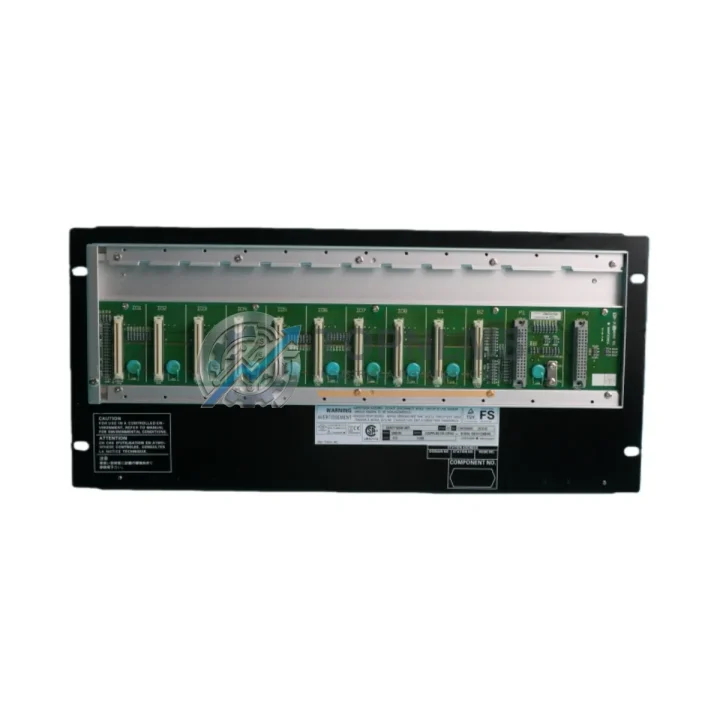

Yokogawa SNB10D-413/CU2N/ATD0C Replacement for ProSafe-RS

Product Overview

Yokogawa SNB10D-413/CU2N/ATD0C Replacement for ProSafe-RS: Seamless Migration & Smooth Transition from Legacy Safety Systems

The Yokogawa SNB10D-413/CU2N/ATD0C is a Safety Node Unit (SNU) designed for the ProSafe-RS Safety Instrumented System (SIS) platform — Yokogawa’s dedicated functional safety controller certified to IEC 61511 and IEC 61508 SIL 2/3. As legacy ProSafe-RS installations age and original SNB10D-series modules approach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to secure verified replacement units that maintain full system compatibility without triggering costly re-validation cycles.

At TOPNLMS, we stock the SNB10D-413/CU2N/ATD0C as a direct, drop-in replacement for existing ProSafe-RS architectures. Every unit is sourced from authorized supply chains, inspected prior to dispatch, and backed by a 12-month warranty — giving your maintenance and reliability teams the confidence to proceed with scheduled turnarounds or emergency replacements without compromise.

Compatibility Comparison Table

Seamless Upgrade Solutions

A ProSafe-RS node replacement rarely occurs in isolation. When migrating from a degraded or discontinued SNB10D-series unit, the surrounding system components must be evaluated in parallel to ensure the entire safety loop remains validated and operational. During the replacement process, engineers typically audit the SCP401 Safety Control Processor — the central controller that manages all Safety Node Units within the ProSafe-RS architecture — to confirm firmware compatibility with the replacement SNB10D-413/CU2N/ATD0C. If the SCP401 is running an older firmware revision, a coordinated update may be required before the new SNU is commissioned.

The ATD0C terminal adapter is already integrated into this SKU’s suffix designation, meaning field wiring from existing analog input loops, discrete I/O circuits, and HART-enabled transmitters connects directly without modification. However, if adjacent I/O slots in the same node rack are populated with AAI141-S analog input modules or ADV151-P digital output modules, these should be inspected for compatibility with the current ProSafe-RS system revision to avoid mismatched I/O firmware during the safety function test.

For sites where the ProSafe-RS system communicates upstream to a CENTUM VP Distributed Control System, the Vnet/IP gateway configuration between the SIS and DCS layers should be verified after the SNU swap. The ALF111 communication module — responsible for bridging ProSafe-RS nodes to the CENTUM VP control bus — does not require reconfiguration when replacing a like-for-like SNB10D unit, but its link status should be confirmed post-restart. Similarly, if the plant uses FIO (Field I/O) nodes connected via the same Vnet/IP segment, their polling cycles should be monitored during the first 24 hours of operation after the replacement.

In control cabinet environments where space is constrained, the SNB10D-413/CU2N/ATD0C occupies the same physical slot as its predecessor, eliminating any need for panel modification or DIN rail rework. If the cabinet also houses a PW481 redundant power supply module, its output voltage and load balance should be checked after the new SNU is seated, as a fresh module may draw slightly different inrush current during initialization. For sites planning a broader ProSafe-RS lifecycle extension, pairing this replacement with a SB401 safety bus coupler and updated PREE engineering workstation software provides a complete modernization path without requiring a full system replacement.

Retrofit Guidance FAQ

Q: Do I need to rewrite my safety logic after replacing the SNB10D-413/CU2N/ATD0C?
A: No. The SNB10D-413/CU2N/ATD0C is a direct drop-in replacement. Your existing ProSafe-RS safety application logic, compiled in the PREE environment, is stored on the SCP401 controller and downloaded to the SNU during initialization. No logic rewrite or re-compilation is required for a like-for-like module swap.

Q: Is field rewiring necessary when installing this unit?
A: No. The ATD0C terminal adapter suffix in the SKU confirms that the field wiring interface is identical to the original installation. All existing cable terminations connect directly to the replacement unit’s terminal adapter without modification.

Q: Which communication protocol does this module use, and is it compatible with my existing network?
A: The SNB10D-413/CU2N/ATD0C communicates via Yokogawa’s Vnet/IP safety communication protocol. This is the standard protocol for all ProSafe-RS Safety Node Units and is fully compatible with existing Vnet/IP segments, SCP401 controllers, and ALF111 gateway modules without any network reconfiguration.

Q: Can this unit be installed in the same physical rack slot as the original module?
A: Yes. The SNB10D-413/CU2N/ATD0C uses the standard ProSafe-RS SNU form factor and occupies the same rack slot as all SNB10D-series predecessors. No mechanical modification to the node rack, control cabinet, or DIN rail assembly is required.

Q: What is the power supply requirement, and does it support redundant power input?
A: The module operates on 24 VDC and supports redundant power supply configurations via the ProSafe-RS node rack’s built-in power distribution. Existing PW481 redundant power supply modules remain fully compatible.

Q: How long does commissioning take after physical installation?
A: For a direct replacement in an existing ProSafe-RS system, commissioning typically involves: seating the module, confirming Vnet/IP link status on the SCP401, downloading the safety application, and executing a proof test of the affected safety functions. In most cases, this process can be completed within a planned maintenance window of 2–4 hours, significantly reducing system downtime compared to a full SIS migration.

Warranty Assurance

Every Yokogawa SNB10D-413/CU2N/ATD0C unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify power-on status, communication interface integrity, and physical condition. Units are packaged in anti-static, shock-resistant materials suitable for international air and sea freight.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides replacement support with priority processing to minimize impact on your plant operations. Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191, with typical response times within one business day.

For procurement teams requiring documentation, we can provide inspection reports, packing lists, and commercial invoices to support customs clearance and internal asset management processes. Bulk orders and long-term supply agreements for ProSafe-RS spare parts are available upon request.
