Yokogawa SDV541-S23 Replacement for CENTUM CS3000/VP

Product Overview

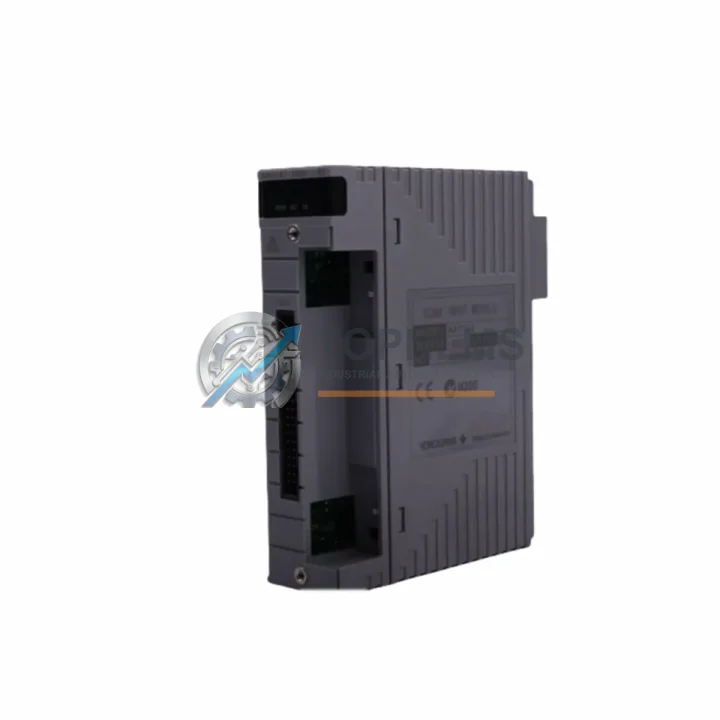

Yokogawa SDV541-S23 Replacement for CENTUM CS3000/VP

When a legacy Yokogawa CENTUM CS3000 or CENTUM VP distributed control system requires a digital output module replacement, the SDV541-S23 stands as the definitive drop-in solution. Designed to slot directly into the existing field control station (FCS) node without rewiring, reprogramming, or structural modification to the control cabinet, this 32-channel 24 VDC digital output module enables plant engineers to restore full system functionality with minimal downtime — a critical advantage in continuous-process industries where every hour of unplanned outage carries significant operational cost.

The SDV541-S23 is a core component of Yokogawa’s CENTUM series I/O subsystem. Its 32 isolated digital output channels interface directly with field devices such as solenoid valves, motor starters, relay coils, and indicator lamps. The module communicates over the Yokogawa V-net/IP or ESB bus architecture depending on the FCS generation, maintaining full compatibility with the CENTUM CS3000 R3 and CENTUM VP R5/R6 software environments. Engineers migrating from an older SDV541 variant or a discontinued SDV531 module will find that the SDV541-S23 preserves the same terminal block pinout, eliminating the need to re-terminate field cables — a process that can otherwise consume days of skilled labor in a large control cabinet.

In a typical CENTUM CS3000 upgrade scenario, the FCS node may house a combination of I/O modules including the SDV541-S23 for digital outputs, the SDV521 for digital inputs, and the SAV144 or SAV148 for analog signal conditioning. The SDV541-S23 integrates seamlessly alongside these modules within the same I/O unit, sharing the common power bus supplied by the PW481 or PW482 power supply modules. This shared architecture means that replacing a failed or end-of-life SDV541-S23 does not require any changes to the power distribution or backplane configuration — the module simply slides into the existing slot and is recognized by the FCS controller upon restart.

For sites transitioning from CENTUM CS3000 to CENTUM VP, the SDV541-S23 is fully forward-compatible. The CENTUM VP engineering environment, including the Field Control Station Builder and the System View configuration tool, recognizes the module without requiring a hardware definition update. This cross-generation compatibility is particularly valuable for phased migration projects where the plant cannot afford a full system cutover and instead upgrades node by node over multiple maintenance windows.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM system upgrade rarely involves a single module in isolation. When replacing the SDV541-S23, plant engineers typically audit the surrounding I/O infrastructure to identify other components approaching end-of-life. The SDV521-S23 digital input module, which occupies adjacent slots in the same I/O unit, is a frequent companion replacement — both modules share the same mechanical form factor and bus connector, simplifying the swap procedure. Similarly, the SAV144-S23 analog input module and the SAV148-S23 analog output module are commonly refreshed during the same maintenance window to ensure the entire I/O tier is operating on current firmware and hardware revisions.

On the controller side, the FCU (Field Control Unit) processor cards such as the CP451 or CP461 may also be evaluated during a CENTUM CS3000-to-VP migration. These processor modules govern the scan cycle and I/O polling rate, and upgrading them in conjunction with the SDV541-S23 ensures that the digital output response time meets the updated process control requirements. The ESB bus coupler modules, including the ESB10D and ESB20D, serve as the communication backbone between the FCS node and the I/O units; verifying their firmware compatibility before installing the SDV541-S23 is a recommended pre-commissioning step.

For sites that rely on HART-enabled field devices, the integration of the SDV541-S23 with a HART multiplexer or a dedicated HART interface module ensures that digital output commands can be correlated with device diagnostics. Additionally, the Yokogawa STARDOM FCN/FCJ controllers used in remote or skid-mounted applications can be networked to the CENTUM VP system via Vnet/IP, and the SDV541-S23 I/O data is accessible across this architecture through the Plant Resource Manager (PRM) asset management platform.

Retrofit Guidance FAQ

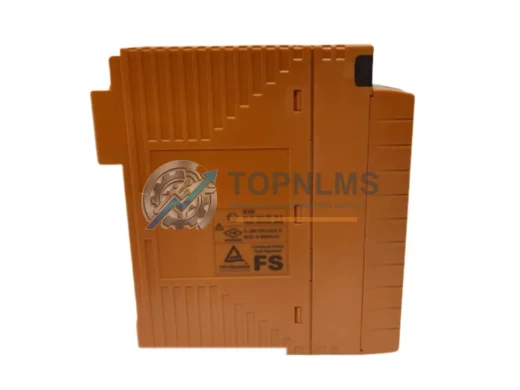

Q1: Can the SDV541-S23 replace an SDV531 without rewiring the field terminal block?
A: In most installations, yes. The SDV541-S23 uses the same terminal block connector standard as the SDV531 series. However, engineers should verify the specific terminal block model (e.g., TB841 or TB481) installed in their I/O unit before proceeding. If the terminal block is compatible, no field cable re-termination is required — only the module itself needs to be swapped.

Q2: Does the CENTUM CS3000 engineering station need to be updated after installing the SDV541-S23?
A: For direct replacements within the same hardware generation, no engineering station update is required. The FCS will recognize the SDV541-S23 using the existing hardware definition. For cross-generation upgrades (e.g., CS3000 to VP), the CENTUM VP engineering environment should be used to rebuild the FCS configuration, which is a standard migration procedure documented in Yokogawa’s system migration guide.

Q3: Is the SDV541-S23 compatible with the Vnet/IP communication protocol used in CENTUM VP?
A: Yes. The SDV541-S23 communicates via the ESB bus within the I/O unit, and the FCS node interfaces with the Vnet/IP control network. This architecture is fully supported in CENTUM VP, and the module’s digital output data is accessible to the HIS (Human Interface Station) and the Exaopc OPC server without any additional configuration.

Q4: What physical space does the SDV541-S23 require in the control cabinet?
A: The SDV541-S23 occupies a single standard I/O slot in the Yokogawa I/O unit (e.g., the ANB10D or ANB11D node). Its dimensions conform to the CENTUM series mechanical standard, so no cabinet modification or additional DIN rail space is needed. The module’s weight of approximately 1,260 g should be accounted for in the I/O unit load calculation during the retrofit planning phase.

Warranty Assurance

Every SDV541-S23 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a multi-point functional inspection that includes power-on self-test verification, channel output continuity checks, and bus communication validation. This pre-shipment testing protocol ensures that the module arrives at your facility in fully operational condition, ready for immediate installation.

In the event of a warranty claim, TOPNLMS provides a replacement-first policy: a verified replacement unit is dispatched before the defective module is returned, minimizing the impact on your production schedule. Our technical support team, reachable at [email protected], can assist with installation guidance, compatibility verification, and commissioning support throughout the warranty period.

For procurement teams managing long-term spare parts programs, TOPNLMS maintains buffer stock of the SDV541-S23 and related CENTUM series I/O modules to support scheduled maintenance cycles and emergency replacement requirements. Orders are processed within one business day, with express international shipping available to minimize lead time for critical plant operations.
