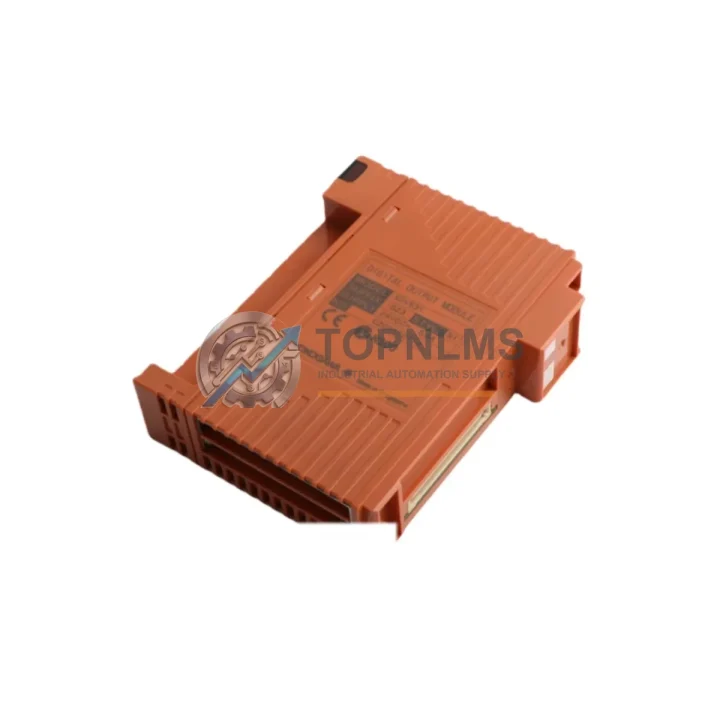

Yokogawa SDV531-S23 S2 Ruggedized Signal Validation Module

Product Overview

Yokogawa SDV531-S23 S2 Ruggedized Signal Validation Module: Industrial Resilience for Harsh Environments

The Yokogawa SDV531-S23 S2 is a high-integrity signal validation module engineered for the CENTUM VP Distributed Control System (DCS) platform — one of the most trusted process automation architectures deployed across critical industries worldwide. Designed to operate reliably in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the SDV531-S23 S2 delivers the signal fidelity and diagnostic transparency that safety-critical operations demand.

In continuous production environments — from offshore oil and gas platforms to inland petrochemical complexes, from underground mining control rooms to high-voltage power generation facilities — signal integrity is not a convenience; it is a prerequisite for safe and efficient operation. The SDV531-S23 S2 addresses this requirement by performing real-time validation of analog input signals before they reach the CENTUM VP controller, filtering out noise, detecting sensor drift, and flagging anomalous readings that could otherwise trigger false alarms or, worse, mask genuine process deviations. For procurement engineers and DCS maintenance teams managing long-lifecycle installations, this module represents a proven, drop-in replacement that restores full system integrity without requiring firmware upgrades or cabinet reconfiguration.

Rugged Specifications Table

Comprehensive Protection Solutions

The SDV531-S23 S2 does not operate in isolation — it is a precision component within a broader CENTUM VP control architecture. In a typical Field Control Station (FCS) cabinet, it works in concert with the Yokogawa AFV10D analog input module and the ADV151-P00 S2 digital output module to form a complete I/O subsystem capable of handling both continuous process variables and discrete safety interlocks. The validated signals processed by the SDV531-S23 S2 are transmitted to the CENTUM VP controller via the ESB bus coupler, ensuring deterministic, low-latency data delivery even under heavy network load or during partial cabinet failures.

For installations requiring functional safety compliance, the SDV531-S23 S2 is commonly paired with the Yokogawa ProSafe-RS Safety Instrumented System (SIS) controller and associated SSC60D safety I/O modules, enabling a layered protection strategy that satisfies IEC 61511 requirements for SIL 2 and SIL 3 loops. In high-vibration environments such as compressor stations or rotating machinery platforms, the module is typically installed alongside Yokogawa EJX series differential pressure transmitters and YTA series temperature transmitters, both of which feed validated signals directly into the SDV531-S23 S2 for conditioning before controller ingestion. This end-to-end signal chain — from field instrument through validation module to DCS controller — is the backbone of reliable process measurement in harsh industrial environments.

Power integrity is equally critical in demanding field conditions. The SDV531-S23 S2 is routinely deployed in cabinets powered by Yokogawa PW482 redundant power supply units, which provide clean, regulated DC power to the FCS backplane and eliminate the risk of signal corruption caused by power rail noise or transient voltage spikes. For communication-intensive installations, the module integrates seamlessly with Yokogawa ALF111 FOUNDATION Fieldbus H1 communication modules and ALE111 PROFIBUS DP interface modules, supporting multi-protocol field device networks without compromising signal validation performance. Terminal modules such as the TB820V PROFIBUS DP termination board complete the wiring interface, providing robust, vibration-resistant screw terminal connections rated for industrial cable gauges and suitable for use in dusty, high-humidity control rooms.

Application in Critical Infrastructure

In upstream oil and gas operations, the SDV531-S23 S2 is deployed in wellhead control panels and production separator skids where sensor signals from pressure transmitters, flow meters, and level gauges must be continuously validated against process limits. Any sensor drift or wiring fault detected by the module triggers an immediate diagnostic alarm in the CENTUM VP HMI, allowing field technicians to intervene before a process upset escalates into a safety event or unplanned shutdown. In offshore platform environments — where salt-laden air, constant mechanical vibration, and limited access for maintenance create extreme reliability demands — the module’s robust construction and hot-swap capability make it an indispensable component of the control system architecture.

In coal-fired and gas-fired power generation facilities, the module monitors analog signals from boiler drum level sensors, turbine speed pickups, and flue gas analyzers — all of which are subject to thermal cycling, vibration, and electromagnetic interference from high-voltage switchgear and bus bars. The SDV531-S23 S2’s built-in signal conditioning filters suppress common-mode noise and ground loop interference, ensuring that the CENTUM VP controller receives clean, accurate process data at all times. For power plant operators managing aging DCS infrastructure, the availability of tested, warranted replacement modules from TOPNLMS eliminates the risk of extended downtime caused by obsolete spare parts shortages.

In metallurgical and smelting operations, where ambient temperatures near furnaces can exceed 50°C and airborne metallic particulates create persistent EMI challenges, the SDV531-S23 S2 provides the signal validation layer that prevents spurious shutdowns and protects both personnel and equipment. Its compatibility with the full CENTUM VP I/O family means that spare modules can be hot-swapped during scheduled maintenance windows without requiring a full system restart — a critical advantage in continuous-process industries where unplanned downtime carries significant financial and safety consequences.

In water and wastewater treatment plants, the module validates signals from pH sensors, dissolved oxygen probes, and flow transmitters operating in high-humidity, chemically aggressive environments. Its robust design ensures reliable performance even when installed in outdoor junction boxes or partially climate-controlled pump station enclosures, where condensation, temperature swings, and biological contamination present ongoing challenges to electronic equipment reliability.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange for replacement or repair at no additional cost to the buyer. Each unit is individually tested prior to dispatch, and a test report is available upon request. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

Q2: How is each SDV531-S23 S2 unit tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection that includes visual inspection for physical damage, functional power-on testing, I/O channel verification, and communication bus integrity checks. Units sourced from decommissioned systems are fully refurbished and re-tested to original Yokogawa factory specifications before being offered for sale. Test records are retained and can be provided to buyers requiring documentation for their quality management systems.

Q3: Is the SDV531-S23 S2 compatible with all CENTUM VP system revisions?
The SDV531-S23 S2 is designed for use with Yokogawa CENTUM VP systems running R5.xx firmware and above. It is backward-compatible with CENTUM CS 3000 FCS cabinets in most configurations, subject to hardware revision verification. Buyers are advised to confirm their FCS hardware revision and software release level before ordering. TOPNLMS technical staff can assist with compatibility verification based on your system’s engineering documentation.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for this module?
Yes. TOPNLMS maintains a dedicated inventory of Yokogawa CENTUM VP I/O modules, including the SDV531-S23 S2, to support customers with long-lifecycle DCS installations. We understand that industrial control systems often remain in service for 15–25 years, and we actively source and stock legacy modules to ensure that our customers can obtain replacement parts without being forced into premature system upgrades. For high-volume or long-term supply agreements, please contact our sales team to discuss framework pricing and reserved stock arrangements.
