YOKOGAWA SDV531-S23 S1 Replacement Solution for CENTUM VP

Product Overview

YOKOGAWA SDV531-S23 S1 Replacement Solution for CENTUM VP: Smooth Migration from Legacy DCS to Modern Digital Input Architecture

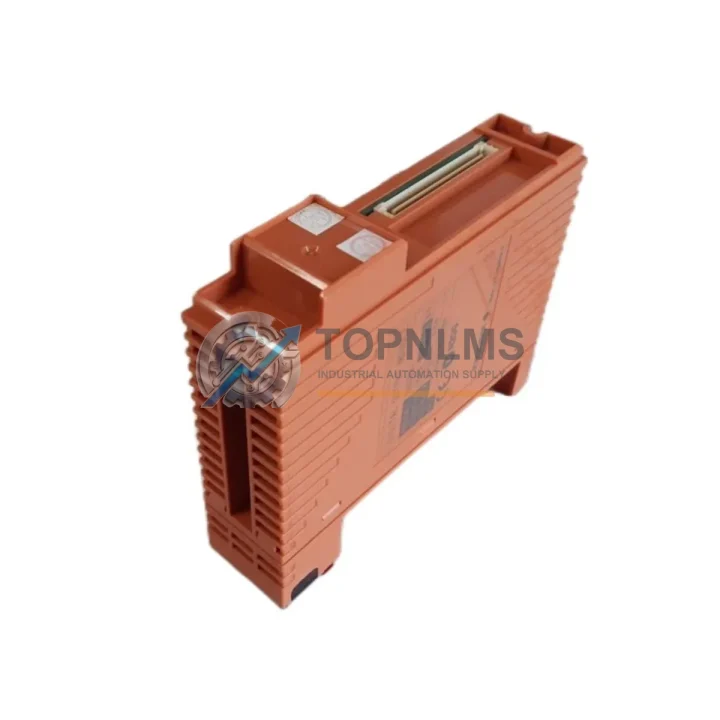

The YOKOGAWA SDV531-S23 S1 is a 32-channel digital input module designed for the CENTUM VP Distributed Control System platform. As aging CENTUM CS 3000 and early CENTUM VP installations approach end-of-life, plant engineers and procurement teams are actively seeking verified replacement units and upgrade pathways that preserve existing field wiring, cabinet layouts, and control logic without requiring a full system overhaul. This listing provides a tested, in-stock SDV531-S23 S1 module with full compatibility documentation and a 12-month warranty, specifically sourced to support DCS migration and emergency replacement scenarios.

The SDV531-S23 S1 accepts 32 discrete digital input signals and interfaces directly with the CENTUM VP field control station (FCS) via the ESB bus backplane. Its compact form factor fits standard CENTUM VP I/O nest assemblies, including the ANB10D and ANB11D nest units, without mechanical modification. Field wiring terminations are handled through the existing terminal board — typically the TB801 or equivalent — meaning that replacing a failed or end-of-life SDV531 module requires no rewiring at the marshalling cabinet level. This dramatically reduces planned maintenance windows and eliminates the risk of wiring errors during hot-swap procedures.

For sites migrating from CENTUM CS 3000 digital input modules such as the SDV521 or SDV522, the SDV531-S23 S1 provides a direct functional upgrade. The signal conditioning characteristics, input voltage thresholds, and scan cycle behavior are compatible with existing FCS configuration databases, allowing engineers to retain their IEC 61131-3 function block logic and alarm setpoints with minimal re-engineering. The module communicates over the V-net/IP or ESB bus depending on the FCS generation, and no protocol conversion layer is required when replacing within the same CENTUM VP architecture.

Power supply compatibility is a common concern during DCS module replacement. The SDV531-S23 S1 draws its operating power from the I/O nest bus, supplied by the CENTUM VP power supply module — typically the PWR48D or PWR48E units. No dedicated external 24 VDC supply is required for the module itself, though field sensor loops connected to the digital inputs may require their own loop power, which is typically sourced from the existing field junction boxes or marshalling panels already in place.

In multi-node CENTUM VP architectures, the SDV531-S23 S1 is commonly deployed alongside analog input modules such as the AAI141-S03 and AAI543-S50, as well as digital output modules including the SDV541-S23 and SDV551 series. When planning a phased migration, procurement teams often source these modules together to ensure consistent hardware revision levels across the I/O nest, reducing the risk of firmware incompatibility between mixed-generation modules. Communication modules such as the ALR111 and ACM12J are also frequently replaced in the same maintenance cycle to modernize the FCS communication layer.

For sites operating hybrid architectures — where CENTUM VP FCS nodes communicate with third-party PLCs or SCADA systems via Modbus TCP, PROFIBUS DP, or OPC DA — the SDV531-S23 S1 replacement does not affect the upper-layer communication configuration. The module operates transparently within the FCS I/O scan, and its data is presented to the HIS (Human Interface Station) and exaquantum historian through the standard CENTUM VP data highway without any gateway reconfiguration.

Physical installation follows the standard CENTUM VP module insertion procedure: power down the affected I/O nest (or perform a hot-swap if the FCS supports redundant I/O), slide the SDV531-S23 S1 into the designated slot, and restore power. The FCS will automatically recognize the module and resume scanning within one control cycle. No manual address configuration or DIP switch setting is required, as the module address is determined by its physical slot position within the nest.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete CENTUM VP I/O nest migration typically involves more than a single module swap. When replacing the SDV531-S23 S1, engineers commonly address adjacent components in the same maintenance window to maximize system reliability and minimize future downtime. Analog input modules such as the AAI141-S03 and AAI543-S50 are frequently replaced alongside digital input modules to standardize the hardware revision level across the nest. Digital output modules including the SDV541-S23 and SDV551 are sourced in parallel to complete the I/O complement for a given FCS node.

At the communication layer, ALR111 Vnet/IP communication modules and ACM12J serial communication modules are often upgraded in the same project phase to support modern Ethernet-based DCS architectures. For sites requiring signal isolation between field devices and the FCS I/O, DIN-rail-mounted signal isolators and loop-powered barriers are installed at the marshalling panel without affecting the SDV531 module’s slot configuration. Power supply modules such as the PWR48D are also evaluated during planned outages, as aging power supplies are a common root cause of intermittent I/O faults that are initially misdiagnosed as module failures.

For engineering teams managing the transition from legacy CENTUM CS 3000 to CENTUM VP, the FCS builder software and CENTUM VP engineering workstation tools support bulk import of existing tag databases, reducing the configuration effort when upgrading I/O modules across multiple FCS nodes. TOPNLMS maintains stock of multiple CENTUM VP I/O module types to support consolidated procurement for multi-node migration projects.

Retrofit Guidance FAQ

Q: Can I replace the SDV531-S23 S1 without rewiring the field terminal board?
A: Yes. The SDV531-S23 S1 uses the same terminal board footprint as its predecessors in the CENTUM VP I/O nest. Field wiring connected to the TB801 or equivalent terminal board remains undisturbed during module replacement.

Q: Will my existing FCS function block logic need to be modified?
A: No. The SDV531-S23 S1 presents the same I/O data structure to the FCS as the original module. Existing IEC 61131-3 function blocks, alarm configurations, and tag assignments are retained without modification.

Q: Is the SDV531-S23 S1 compatible with both Vnet/IP and ESB bus FCS configurations?
A: The SDV531-S23 S1 communicates via the ESB bus within the I/O nest. The FCS node’s upper-layer communication (Vnet/IP or legacy Vnet) is independent of the I/O module and is not affected by this replacement.

Q: Can this module be hot-swapped while the FCS is running?
A: Hot-swap capability depends on the FCS configuration and whether redundant I/O is enabled. Consult your CENTUM VP system documentation for the specific FCS node configuration before performing a live swap.

Q: What if the physical slot dimensions differ from my current nest?
A: The SDV531-S23 S1 is designed for standard CENTUM VP I/O nest assemblies (ANB10D / ANB11D). No mechanical adaptation is required for these nest types. If your installation uses a non-standard enclosure, contact TOPNLMS for a pre-installation compatibility review.

Warranty Assurance

Every SDV531-S23 S1 unit shipped by TOPNLMS undergoes pre-shipment functional testing to verify digital input channel integrity, bus communication, and power consumption within YOKOGAWA factory specifications. Units are inspected for physical condition, connector integrity, and firmware version prior to dispatch.

All units are covered by a 12-month replacement warranty from the date of shipment. In the event of a confirmed module failure within the warranty period, TOPNLMS will dispatch a replacement unit and provide return shipping coordination. Warranty claims are processed within 3 business days of fault confirmation, with priority handling available for emergency plant situations.

TOPNLMS maintains bonded inventory of CENTUM VP I/O modules to support urgent procurement requirements. Standard lead time for in-stock units is 3–7 business days to most destinations, with expedited air freight available for critical plant shutdowns. All export documentation, including commercial invoices, packing lists, and certificates of origin, is prepared in compliance with international trade requirements.

For volume procurement, multi-node migration projects, or consignment stock arrangements, contact the TOPNLMS technical sales team directly to discuss pricing, lead times, and warranty terms tailored to your project scope.
