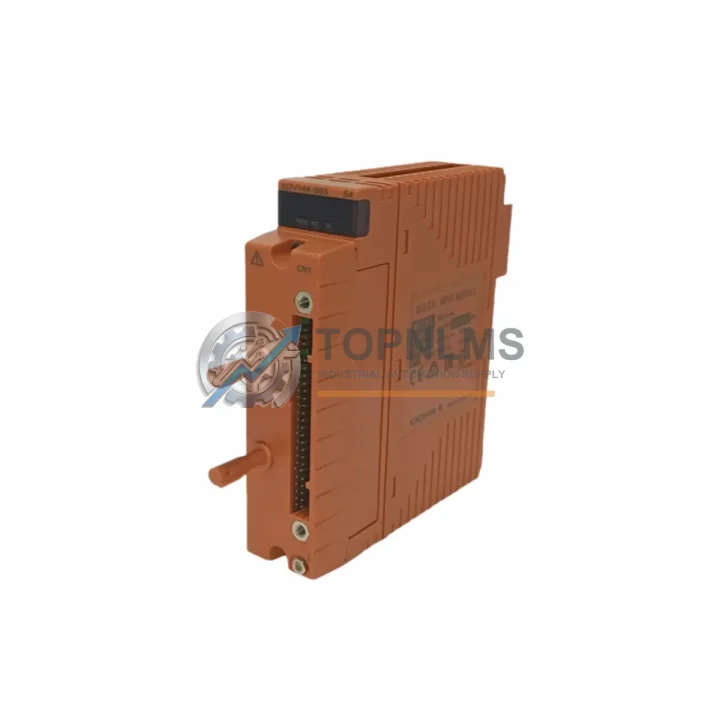

Yokogawa SDV144-S63/PRP S4 Ruggedized Digital Input Module for Harsh Industrial Environments

The Yokogawa SDV144-S63/PRP S4 is a 32-channel digital input module engineered for mission-critical process control applications within the Yokogawa CENTUM VP and CENTUM CS 3000 Distributed Control System (DCS) architectures. Designed to operate reliably under extreme industrial conditions — including high ambient temperatures, elevated humidity, heavy dust ingress, mechanical vibration, and intense electromagnetic interference — this module delivers the signal integrity and system availability demanded by continuous production environments in oil and gas, petrochemical, power generation, water treatment, metallurgy, and mining operations.

Built around Yokogawa’s proven PROFIBUS-DP communication protocol and equipped with Parallel Redundancy Protocol (PRP) support, the SDV144-S63/PRP S4 ensures uninterrupted data acquisition even in the event of a single network failure. Its dual-port PRP architecture eliminates single points of failure at the fieldbus level, making it an ideal choice for safety-instrumented systems and high-availability control loops where downtime is not an option.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated CENTUM VP control architecture, the SDV144-S63/PRP S4 operates in close coordination with a range of complementary I/O and control components. On the output side, the Yokogawa SDV541 and SDV542 digital output modules provide the corresponding 32-channel DO capability, forming a complete digital I/O subsystem within the same I/O nest. For analog signal acquisition — such as 4–20 mA process variables from pressure transmitters, flow meters, and temperature sensors — the Yokogawa AAI141-S03 and AAI543-H03 analog input modules complement the SDV144 within the same PROFIBUS-DP segment.

The module interfaces directly with the Yokogawa ACF11 field control unit (FCU) and ACF12 dual-redundant FCU, which serve as the primary DCS controllers managing scan cycles, control logic execution, and inter-module communication. For fieldbus segment management, the Yokogawa ALF111 PROFIBUS-DP coupler bridges the I/O nest to the plant-wide control network, ensuring deterministic data transfer even under high electromagnetic noise conditions typical of heavy industrial environments.

Power integrity is maintained through the Yokogawa PW481 and PW482 dual-redundant power supply modules, which provide stable 24 VDC bus power to the I/O nest. In safety-critical installations, the SDV144-S63/PRP S4 is often deployed alongside Yokogawa ProSafe-RS safety controller modules and dedicated safety relay output modules, ensuring that emergency shutdown (ESD) signals are captured and processed with the required SIL 2 or SIL 3 integrity. Terminal block assemblies and Yokogawa TB series marshalling terminal modules complete the field wiring interface, providing organized, labeled, and protected termination points for all 32 input channels.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the SDV144-S63/PRP S4 is deployed to monitor valve position feedback, pump run/stop status, pressure switch contacts, and emergency shutdown (ESD) initiators across wellhead control panels and pipeline SCADA nodes. Its PRP redundancy ensures that a single fiber or copper network fault does not interrupt the real-time status monitoring of critical isolation valves or compressor protection circuits.

In coal-fired and gas-fired power generation plants, this module handles digital status inputs from turbine protection relays, generator breaker auxiliary contacts, and boiler safety interlocks. The module’s compliance with IEC 61000 EMC standards makes it resilient against the high-frequency switching transients generated by large motor drives and high-voltage switchgear in the same facility.

In water and wastewater treatment plants, the SDV144-S63/PRP S4 collects digital signals from level switches, flow switches, pump seal failure contacts, and UV disinfection system status outputs. Its wide operating temperature range and humidity tolerance allow reliable operation in outdoor pump stations and underground wet-well control panels without additional climate conditioning.

In metallurgical and steel production facilities, the module withstands the intense vibration, radiated heat, and electromagnetic interference generated by electric arc furnaces, rolling mill drives, and overhead crane systems. Deployed within sealed control cabinets alongside Yokogawa CENTUM VP I/O nests and industrial-grade UPS systems, the SDV144-S63/PRP S4 maintains continuous digital input scanning throughout 24/7 continuous casting and hot-rolling operations.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All SDV144-S63/PRP S4 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance to Yokogawa’s published specifications. Units that fail within the warranty period are repaired or replaced at no charge, including return shipping.

Q2: How is each unit tested before shipment?
Every SDV144-S63/PRP S4 module undergoes a full functional test prior to dispatch. Testing includes power-on self-diagnostics, channel-by-channel digital input verification across all 32 channels, PROFIBUS-DP communication handshake validation, and PRP dual-port link integrity checks. A test report is available upon request for quality-assurance documentation purposes.

Q3: Is this module compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The SDV144-S63/PRP S4 is compatible with Yokogawa CENTUM VP (R4.x, R5.x, R6.x) and CENTUM CS 3000 (R3.x) I/O nest architectures. It is a direct plug-in replacement for earlier SDV144 variants in the same slot position, provided the system firmware supports the S63/PRP S4 hardware revision. Compatibility verification against your specific system revision is recommended before installation.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains dedicated stock of Yokogawa CENTUM VP and CS 3000 I/O modules, including the SDV144-S63/PRP S4, to support planned maintenance shutdowns, emergency spare parts replenishment, and long-term service agreements. Lead times for in-stock units are typically 3–7 business days for international shipment. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, or scheduled delivery programs.
