Yokogawa SCP461-11 Replacement for CENTUM VP CS 3000

Product Overview

Yokogawa SCP461-11 Replacement for CENTUM VP CS 3000: Smooth Migration from Legacy DCS

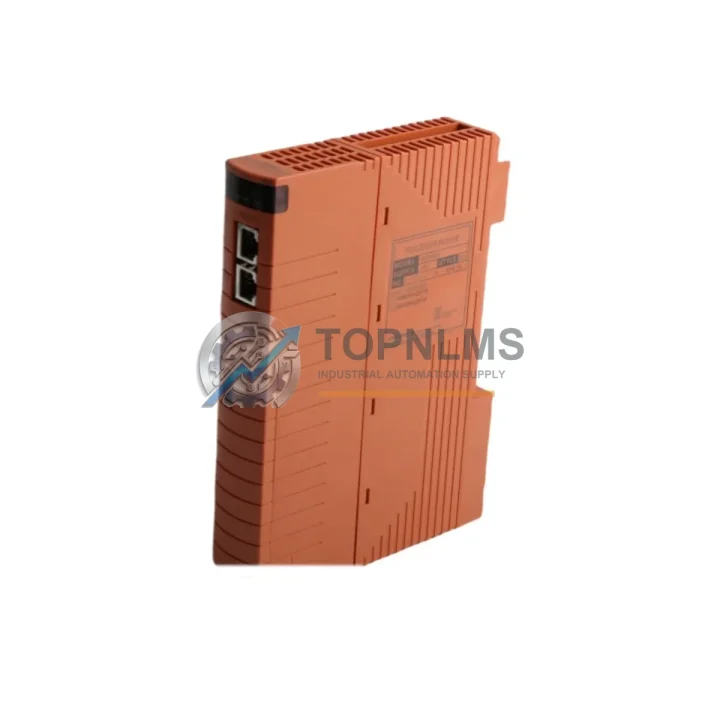

The Yokogawa SCP461-11 is a Signal Conditioning Panel designed for use within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. As aging CS 3000 installations approach end-of-life and spare-part availability tightens, plant engineers and procurement teams increasingly require verified, ready-to-ship replacement units that can be installed with minimal engineering rework. TOPNLMS maintains stock of the SCP461-11 specifically to support these migration and emergency-replacement scenarios, offering a 12-month warranty and pre-shipment functional verification on every unit.

The SCP461-11 serves as the signal conditioning interface between field instruments — thermocouples, RTDs, millivolt sources, and 4–20 mA transmitters — and the CENTUM VP or CS 3000 I/O bus. Its role in the signal chain means that a failed or degraded unit can affect entire process loops, making fast, like-for-like replacement critical to minimizing unplanned downtime. Because the SCP461-11 retains the same physical footprint, terminal block pinout, and bus connector as the original factory-installed unit, field replacement does not require rewiring, rack modification, or changes to the control database — the replacement module slots directly into the existing sub-unit carrier and resumes operation after a standard loop check.

In a typical CENTUM VP or CS 3000 field cabinet, the SCP461-11 is mounted alongside other I/O sub-units such as the AAI141-S analog input module, the AAI543-S multi-channel analog I/O module, and the ADV151-P digital input module. These modules share the same ESB bus backplane and are managed by the Field Control Station (FCS), commonly the PFCS or SFCS controller node. When replacing the SCP461-11, it is good practice to simultaneously inspect adjacent modules — particularly the AAB841 bus interface unit and the power supply modules such as the PW481 or PW482 — for signs of aging capacitors or degraded connectors, since these components share the same service interval in long-running installations.

For sites migrating from CS 3000 to CENTUM VP, the SCP461-11 is fully forward-compatible: the module is recognized by both the CS 3000 Builder engineering environment and the CENTUM VP Engineering Environment (ENG) without requiring a hardware change. This means that a plant running a phased migration — where some FCS nodes have been upgraded to CENTUM VP while others remain on CS 3000 — can standardize on SCP461-11 stock across the entire site, simplifying spare-parts management and reducing the number of distinct part numbers held in the maintenance store.

Communication between the SCP461-11 and the FCS controller is handled entirely over the ESB (Enhanced Signal Bus) backplane, so there are no additional communication cables, protocol converters, or gateway devices required. This is in contrast to third-party retrofit solutions that may require an additional Modbus RTU or PROFIBUS DP interface module to bridge legacy field signals into a modern controller. The native ESB interface of the SCP461-11 ensures that signal latency, scan cycle timing, and alarm response behavior remain identical to the original factory configuration — an important consideration for process loops with tight control requirements.

For installations where the original SCP461-11 has been physically damaged or where the sub-unit carrier itself requires replacement, TOPNLMS can also source the matching carrier and terminal block assemblies. In some cases, customers upgrading from very early CS 3000 revisions also require updated firmware in the FCS node — typically handled via the CENTUM VP System Generation (SYSGEN) tool — before the replacement SCP461-11 is recognized correctly. Our technical team can advise on firmware compatibility based on the FCS model and software revision in use at your site.

Procurement teams should note that the SCP461-11 is classified as a controlled spare under Yokogawa’s lifecycle policy, meaning that factory new units are no longer available through standard distribution channels. TOPNLMS sources verified units through authorized secondary-market channels and subjects each unit to incoming inspection, including terminal block integrity checks, bus connector cleaning, and functional signal-path verification before dispatch. Units are shipped in anti-static packaging with individual test records and are accompanied by a TOPNLMS 12-month warranty certificate.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete SCP461-11 replacement or CS 3000-to-CENTUM VP migration typically involves more than a single module swap. Depending on the scope of the retrofit, the following components are commonly required alongside the SCP461-11:

The AAI141-S analog input module is frequently replaced in the same maintenance window, as it shares the same ESB backplane and is subject to the same aging profile as the SCP461-11. For sites with mixed analog I/O requirements, the AAI543-S multi-channel analog I/O module provides a consolidated replacement option that reduces the total module count in the rack. Digital I/O requirements are typically handled by the ADV151-P digital input module or the ADO141-P digital output module, both of which are slot-compatible with the existing CS 3000 carrier system.

The AAB841 bus interface unit is a critical component in the ESB signal path and should be inspected whenever an SCP461-11 is replaced — a degraded AAB841 can cause intermittent communication faults that are difficult to distinguish from a faulty signal conditioning module. Power integrity across the rack is maintained by the PW481 or PW482 power supply modules; these units should be tested for output voltage stability as part of any planned maintenance that includes an SCP461-11 replacement.

For sites that are simultaneously upgrading their operator interface, the CENTUM VP Human Interface Station (HIS) — including the HIS-PC workstation and associated CENTUM VP software licenses — integrates directly with the upgraded FCS nodes without requiring changes to the field wiring or I/O module configuration. Engineering and commissioning activities are performed using the CENTUM VP Engineering Environment, which supports online download of configuration changes to minimize process interruption during the migration.

Retrofit Guidance FAQ

Q: Do I need to rewire the field terminals when replacing the SCP461-11?
No. The SCP461-11 uses the same terminal block pinout as the original unit. Field wiring connects to the terminal block on the sub-unit carrier, not to the module itself, so the module can be replaced without disturbing any field cables.

Q: Will the replacement SCP461-11 be recognized by my existing CS 3000 Builder project?
Yes. The SCP461-11 hardware revision supported by TOPNLMS is compatible with CS 3000 Builder and does not require a project rebuild or database modification. After physical installation, a standard loop check is sufficient to confirm correct operation.

Q: Is the SCP461-11 compatible with CENTUM VP if we are mid-migration?
Yes. The SCP461-11 is recognized by both the CS 3000 and CENTUM VP engineering environments. Sites running a phased migration can install the replacement unit immediately without waiting for the FCS upgrade to be completed.

Q: What communication protocol does the SCP461-11 use?
The SCP461-11 communicates exclusively over the Yokogawa ESB (Enhanced Signal Bus) backplane. No external communication cables, Modbus converters, or PROFIBUS adapters are required.

Q: How much physical space does the replacement require?
The SCP461-11 occupies the same sub-unit carrier slot as the original module. No rack modification, additional mounting hardware, or cabinet space is required.

Q: What if my FCS firmware does not recognize the replacement module?
In rare cases involving very early CS 3000 FCS revisions, a firmware update via the CENTUM VP SYSGEN tool may be required. Contact our technical team with your FCS model number and software revision for a compatibility assessment before ordering.

Q: Can I test the replacement SCP461-11 before installation?
Every unit shipped by TOPNLMS has undergone pre-shipment functional verification. Customers with bench-test equipment can perform an incoming inspection using a standard CS 3000 or CENTUM VP test rack. We recommend a loop check after installation as standard commissioning practice.

Warranty Assurance

Every Yokogawa SCP461-11 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes free replacement or repair at TOPNLMS’s discretion. The warranty does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling.

Prior to shipment, each unit undergoes a documented incoming inspection process that includes visual inspection, terminal block and bus connector integrity checks, and a functional signal-path verification test. A test record is included with each shipment. Units are packed in anti-static bags with foam cushioning and shipped via tracked express courier to minimize transit risk.

In the event of a warranty claim, customers should contact TOPNLMS by email at [email protected] or by phone at +86 18359293191. Our after-sales team targets a response within one business day. Replacement units are dispatched from Xiamen stock upon confirmation of the fault, and return shipping of the defective unit is arranged at TOPNLMS’s cost for valid warranty claims.

For procurement teams requiring documentation for vendor qualification, TOPNLMS can provide a company profile, inspection report template, and warranty certificate sample upon request. We support purchase orders, proforma invoice, and T/T payment terms for B2B customers.
