Yokogawa SB401-51 Ruggedized ESB Bus Module for Harsh Environments

Product Overview

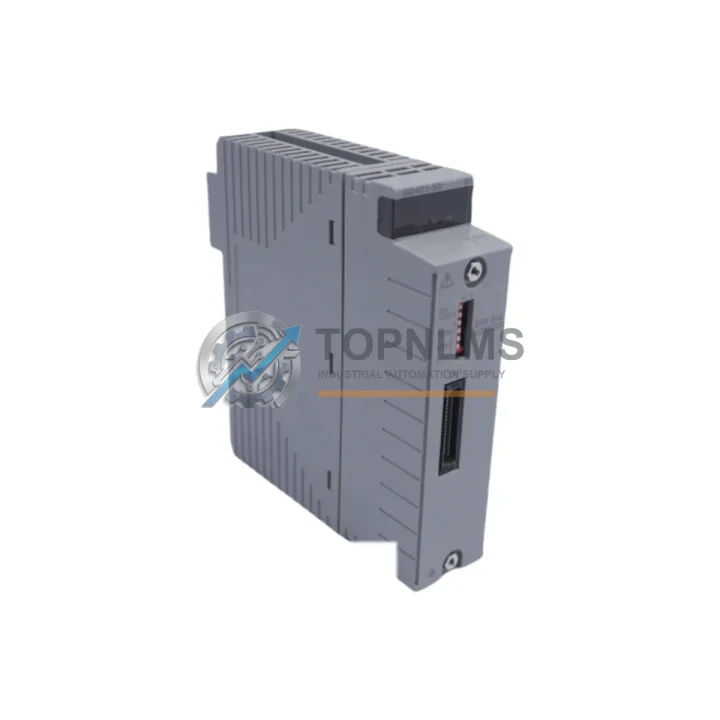

Yokogawa SB401-51 Ruggedized ESB Bus Communication Module for Harsh Industrial Environments

The Yokogawa SB401-51 is a high-reliability ESB (Enhanced Serial Backplane) Bus Communication Card engineered for the CENTUM VP Field Control Station (FCS) — Yokogawa’s flagship distributed control system platform. Designed to operate continuously in demanding industrial environments, the SB401-51 delivers deterministic, low-latency communication between FCS nodes and I/O modules, ensuring uninterrupted process control even under conditions of extreme temperature variation, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference.

In heavy industrial facilities — including oil refineries, natural gas processing plants, coal-fired and nuclear power stations, water treatment works, metallurgical smelters, and continuous mining operations — control system uptime is not optional. A single communication failure on the ESB backplane can cascade into process shutdowns, safety system activations, or unplanned downtime costing tens of thousands of dollars per hour. The SB401-51 is purpose-built to eliminate that risk, providing a hardened communication backbone that keeps the entire CENTUM VP architecture synchronized and responsive.

Rugged Specifications Table

Comprehensive Protection Solutions

The SB401-51 does not operate in isolation — it is the communication spine that connects every element of the CENTUM VP control architecture. In a typical FCS cabinet, the SB401-51 interfaces directly with the Yokogawa CP451-10 or CP461-50 FCS Processor Module, which executes the control logic and relies on the ESB bus for real-time I/O data. Analog input signals from field transmitters are acquired through modules such as the AAI141-S00 or AAI841-S00 analog input cards, while discrete field signals are handled by ADV151-P00 and ADV551-P00 digital I/O modules — all of which depend on the SB401-51 for reliable backplane communication.

On the power side, the FCS cabinet is typically energized by a Yokogawa PW481 or PW482 redundant power supply module, which provides clean, regulated DC power to the backplane. Any instability in the power rail is isolated from the communication bus by the SB401-51’s onboard filtering, protecting the integrity of ESB data frames even during power transients or brownout conditions common in heavy industrial facilities.

For process safety applications, the SB401-51 is frequently deployed alongside Yokogawa ProSafe-RS Safety Instrumented System (SIS) modules, where the CENTUM VP DCS and the SIS share a common Vnet/IP Ethernet backbone. The SB401-51 ensures that the FCS continues to deliver accurate process data to the safety layer without communication latency or frame loss — a critical requirement for SIL 2 and SIL 3 certified safety loops.

In facilities using FOUNDATION Fieldbus or HART communication protocols, the SB401-51 works in conjunction with Yokogawa ALF111 FOUNDATION Fieldbus communication modules and AAT141 HART multiplexer cards, enabling the FCS to aggregate field device diagnostics and process variables from hundreds of intelligent transmitters across the plant. The ESB bus managed by the SB401-51 ensures that this high-volume data stream reaches the CP processor without bottlenecks.

Control cabinet integrity is further maintained through Yokogawa AIP587 or AIP588 I/O power supply modules and terminal block assemblies that provide clean field wiring termination. When the SB401-51 is replaced as a spare part during scheduled maintenance, the hot-swap capability of the CENTUM VP platform means the FCS can continue operating without a process shutdown — a key advantage in continuous production environments such as ethylene crackers, blast furnaces, and desalination plants.

Application in Critical Infrastructure

In upstream oil and gas operations — offshore platforms, onshore wellhead clusters, and gas compression stations — the SB401-51 enables the CENTUM VP FCS to maintain continuous monitoring and control of separator pressure, flow metering, and emergency shutdown (ESD) interlocks. The module’s resistance to salt-laden humid air and vibration from rotating machinery makes it particularly well-suited to these environments, where control cabinet conditions can be far more aggressive than standard industrial ratings suggest.

In coal-fired and combined-cycle power plants, the SB401-51 supports boiler combustion control, turbine speed regulation, and flue gas desulfurization (FGD) systems. The ESB bus communication it provides is essential for coordinating the dozens of I/O modules that monitor steam drum levels, burner management, and emissions compliance — all of which must respond within milliseconds to process deviations to prevent equipment damage or regulatory violations.

In water and wastewater treatment facilities, the SB401-51 keeps CENTUM VP FCS nodes synchronized across large geographic footprints, where control cabinets may be exposed to high ambient humidity, chemical vapors, and temperature cycling. Its stable backplane communication ensures that dosing pumps, aeration blowers, and UV disinfection systems remain under precise automatic control around the clock.

In metallurgical and mining operations — blast furnaces, electric arc furnaces, flotation circuits, and conveyor control systems — the SB401-51 must withstand intense electromagnetic interference from high-current drives, arc furnace harmonics, and variable-frequency drives (VFDs). Its EMI-hardened design ensures that ESB bus data integrity is maintained even when installed in close proximity to high-power electrical equipment, protecting the FCS from spurious I/O readings that could trigger false alarms or unsafe control actions.

Security & Quality FAQ

Q1: What warranty does the SB401-51 carry, and what does it cover?
Every SB401-51 unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If the module fails within the warranty period due to a verified manufacturing fault, TOPNLMS will provide a replacement unit at no additional cost. Warranty claims are processed within 5 business days of receiving the returned module.

Q2: How is each unit tested before shipment?
All SB401-51 modules undergo a pre-shipment functional inspection that includes visual inspection for physical damage, connector integrity verification, and power-on functional testing where applicable. Units sourced from Yokogawa-authorized channels are accompanied by original manufacturer documentation. TOPNLMS maintains traceability records for every unit dispatched, supporting your incoming inspection and quality management requirements.

Q3: Is the SB401-51 compatible with all CENTUM VP FCS configurations?
The SB401-51 is designed for use with Yokogawa CENTUM VP Field Control Stations, including AFV10D and AFV30D series cabinets. Compatibility with specific FCS generations and firmware revisions should be confirmed against your site’s CENTUM VP system documentation or Yokogawa engineering records. TOPNLMS technical staff can assist with compatibility verification based on your FCS model and software revision — contact us before ordering if you have any uncertainty.

Q4: Can TOPNLMS support long-term or repeat supply of the SB401-51 for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand Yokogawa CENTUM VP spare parts, including the SB401-51, to support planned maintenance shutdowns, emergency replacements, and multi-site spare parts programs. We can provide quotations for blanket orders, consignment stock arrangements, and priority dispatch agreements for customers with critical uptime requirements. Contact our team to discuss a supply agreement tailored to your maintenance schedule.
