YOKOGAWA SB311-S1 Replacement/Upgrade for CENTUM CS

Product Overview

YOKOGAWA SB311-S1 Replacement/Upgrade Solution for CENTUM CS: Smooth Migration & Legacy System Compatibility

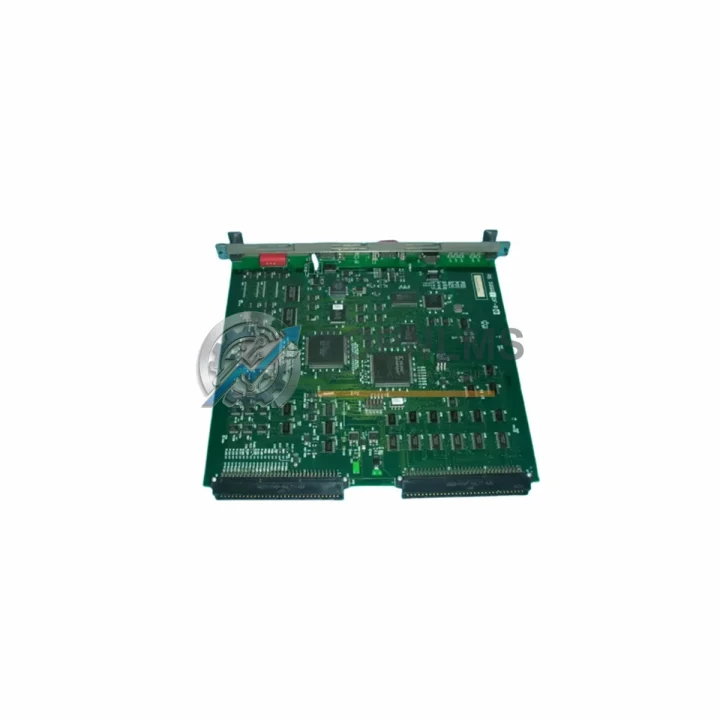

The YOKOGAWA SB311-S1 is a processor board module designed for the CENTUM CS Distributed Control System (DCS) platform — one of YOKOGAWA’s most widely deployed process automation architectures across petrochemical, power generation, pharmaceutical, and pulp & paper industries. As the CENTUM CS series approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement units or plan a structured migration path to the CENTUM VP or CENTUM VP R6 platform.

At TOPNLMS, we maintain ready stock of the SB311-S1 processor board to support both emergency breakdown replacements and planned system upgrades. Every unit is tested, inspected, and shipped with a 12-month warranty, ensuring your control system returns to full operation with minimal disruption.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SB311-S1 replacement or CENTUM CS migration rarely involves a single module swap. In practice, plant engineers must evaluate the entire control loop — from field instruments through I/O termination, communication backbone, and operator station — to ensure system integrity after the change.

When replacing the SB311-S1 processor board, the associated EB401 or EB801 field control station rack must be inspected for backplane connector wear, particularly if the original unit failed due to power surge or thermal stress. The rack’s power supply module — typically a PS401 or PS801 — should be tested concurrently, as processor board failures are frequently preceded by power supply degradation in aging CENTUM CS installations.

On the I/O side, the SB311-S1 communicates with analog and digital I/O modules mounted in the same or adjacent racks. Common companion modules include the AAI141 analog input module and ADV151 digital input module, both of which share the same parallel I/O bus architecture. If these modules are also approaching end-of-life, a coordinated replacement during the same maintenance window significantly reduces total downtime and re-commissioning effort.

For sites planning a phased migration from CENTUM CS to CENTUM VP, the communication infrastructure requires particular attention. The legacy Vnet coaxial bus used by CENTUM CS is not directly compatible with the Vnet/IP Ethernet backbone of CENTUM VP. A Vnet/IP gateway or bridge module is typically required during the transition period to allow both platforms to coexist on the same plant network. This approach allows production to continue on the legacy CENTUM CS system while new CENTUM VP field control stations are commissioned in parallel.

Operator interface continuity is another critical consideration. Many CENTUM CS installations rely on HIS (Human Interface Station) workstations running CENTUM CS HMI software. When the processor board is replaced like-for-like with a new SB311-S1, the HIS configuration remains unchanged. However, if the migration extends to CENTUM VP, the HIS must be upgraded to support the CENTUM VP HMI environment, which may require workstation hardware refresh and software re-licensing.

Field wiring termination is handled through terminal assembly units (TA series) connected to the I/O modules. These terminal blocks are typically mounted in the same control cabinet and are fully reusable during a processor board swap, provided the I/O module assignments remain unchanged. This is one of the key advantages of a like-for-like SB311-S1 replacement: field wiring, marshalling cabinets, and junction boxes require no modification.

For sites that require programming cable access during commissioning or firmware verification, the YOKOGAWA SB401 engineering cable or equivalent USB-to-serial adapter is required to connect a laptop running CENTUM CS Builder to the processor board’s maintenance port. Ensuring this cable and the associated engineering workstation are available on-site before the replacement window begins is essential for minimizing commissioning time.

Finally, for installations where signal isolation between field instruments and the DCS is required — particularly in hazardous area applications — signal isolators or Zener barriers installed in the marshalling cabinet should be inspected and replaced if they show signs of degradation. These passive components are often overlooked during processor board replacements but can cause intermittent I/O faults that are difficult to diagnose after the new module is installed.

Retrofit Guidance FAQ

Q: Can the SB311-S1 be installed as a direct drop-in replacement without reprogramming?
A: Yes — within the CENTUM CS platform, the SB311-S1 is a direct hardware replacement. The existing application program stored in the FCS (Field Control Station) is retained in battery-backed SRAM or can be reloaded from the engineering workstation. No reprogramming is required for a like-for-like swap, though a full function test and loop check is strongly recommended before returning the system to automatic control.

Q: Is the Vnet communication protocol compatible between different SB311-S1 revisions?
A: YOKOGAWA maintains backward compatibility across SB311-S1 hardware revisions within the CENTUM CS platform. The Vnet bus protocol and node addressing are handled at the firmware level, and the replacement unit will adopt the same node address as the original after configuration. Verify the firmware version matches your site’s CENTUM CS software revision to avoid compatibility warnings during startup.

Q: What physical space requirements should be checked before installation?
A: The SB311-S1 occupies a standard single-slot position in the CENTUM CS EB401 or EB801 rack. Confirm that the target slot is free and that adjacent modules have not been repositioned since the original installation. Check that the backplane connector pins are clean and undamaged. The module requires standard 24 VDC power from the rack’s power supply — no additional wiring is needed.

Q: Can the SB311-S1 communicate with CENTUM VP modules on the same network?
A: Direct communication between CENTUM CS (Vnet) and CENTUM VP (Vnet/IP) modules is not supported without a gateway. During a phased migration, a Vnet/IP gateway module must be installed to bridge the two network segments. TOPNLMS can advise on compatible gateway options based on your specific CENTUM CS version and migration timeline.

Q: How should the replacement be handled to minimize process downtime?
A: For redundant FCS configurations, the standby processor can be replaced while the primary remains in control, eliminating process interruption. For simplex configurations, coordinate the replacement during a planned shutdown window. Pre-stage the replacement SB311-S1 on-site, verify the engineering workstation and programming cable are available, and prepare a tested backup of the application program before beginning the swap.

Warranty Assurance

Every YOKOGAWA SB311-S1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point inspection process including visual examination, connector integrity check, and functional power-on verification. Units that do not pass inspection are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191. Warranty claims are processed within 3 business days of receipt of the returned unit.

For urgent breakdown situations, TOPNLMS maintains ready stock of the SB311-S1 and can arrange same-day dispatch from our Xiamen warehouse for orders confirmed before 14:00 CST. International shipping is available via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–7 business days to most destinations.

Procurement teams requiring formal documentation — including test reports, packing lists, commercial invoices, certificates of origin, and MSDS where applicable — can request these at the time of order. We support standard B2B procurement workflows including purchase order processing, proforma invoice issuance, and T/T bank transfer payment terms.
