Yokogawa SAI533-H63/PRP S1 Original Industrial Spare CENTUM VP Compatible

Product Overview

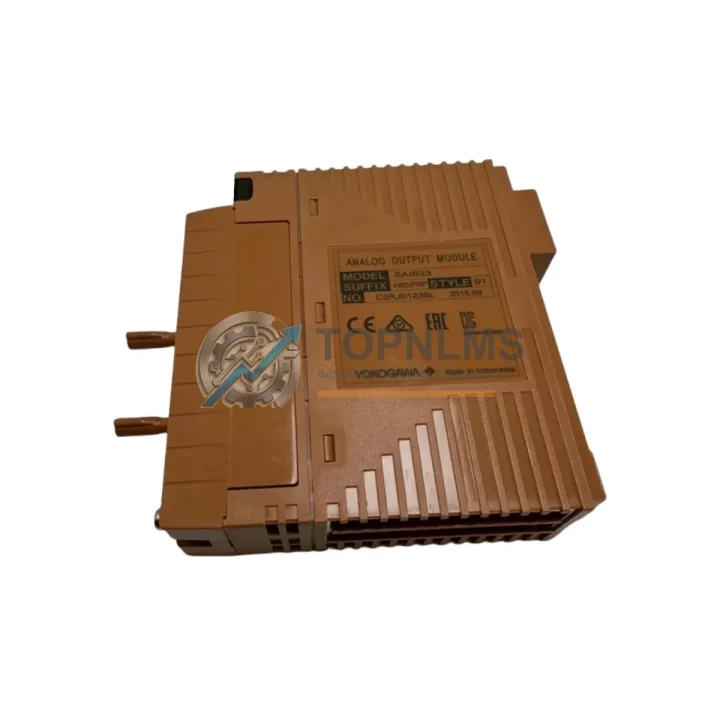

Yokogawa SAI533-H63/PRP S1 Original Industrial Spare — CENTUM VP System Stability & Redundant Analog Output Maintenance

The Yokogawa SAI533-H63/PRP S1 is an original analog output module engineered for the CENTUM VP Distributed Control System (DCS). Designed with a redundant (PRP) architecture, this module ensures uninterrupted process control in critical industrial environments including petrochemical plants, power generation facilities, pharmaceutical manufacturing, and large-scale continuous process operations. Sourcing an original spare SAI533-H63/PRP S1 is a foundational step in any serious preventive maintenance and system continuity strategy for CENTUM VP installations.

Critical Technical Specs

Preventive Maintenance Strategy for CENTUM VP Analog Output Nodes

In high-availability process plants, a single failed analog output channel can cascade into a full loop shutdown, triggering costly unplanned downtime. The SAI533-H63/PRP S1 operates within a redundant I/O node architecture, meaning that while the PRP design provides failover protection, the physical module itself must be maintained and replaced on a scheduled basis — typically every 5–8 years or upon first indication of output drift, calibration failure, or communication fault.

During a planned shutdown or annual turnaround inspection of a CENTUM VP field control station, maintenance engineers should treat the SAI533-H63/PRP S1 replacement as part of a broader node health audit. When pulling the analog output module for inspection or swap, it is equally important to inspect the SAI143 or SAI533 series analog input modules installed in adjacent slots — these share the same node bus and environmental exposure. A degraded analog input module can mask output loop faults and complicate root-cause analysis.

The CENTUM VP FIO node power supply unit (PSU) — typically an AVR series or dedicated node PSU module — should be load-tested during the same maintenance window. An aging PSU delivering marginal voltage to the node backplane is a leading cause of intermittent analog output errors that are frequently misdiagnosed as module faults. Replacing the SAI533-H63/PRP S1 without verifying PSU health risks repeat failures within months.

Field wiring termination integrity is another critical checkpoint. The terminal block assemblies and marshalling cabinet wiring connected to the SAI533-H63/PRP S1 output channels should be inspected for oxidation, loose terminations, and insulation degradation — particularly in humid or chemically aggressive environments. Pairing the module replacement with a wiring audit and terminal block refresh eliminates the most common sources of post-maintenance loop instability.

For plants running HART-enabled field devices on the analog output loops, the HART multiplexer or HART communication module associated with this node should also be verified for firmware compatibility with the replacement SAI533-H63/PRP S1. HART pass-through functionality depends on correct module revision alignment. If the plant uses a Yokogawa CENTUM VP engineering workstation (EWS) or HIS (Human Interface Station) for loop configuration, a post-replacement loop check and I/O assignment verification in the CENTUM VP Builder software is mandatory before returning the loop to automatic control.

Maintenance planners should also review the status of the CENTUM VP communication bus modules (ESB bus or Vnet/IP network interface cards) within the same field control station. These modules handle all I/O data transmission to the DCS controller, and a degraded network interface can cause the replacement analog output module to appear faulty during commissioning. Stocking a spare Vnet/IP interface module or ESB coupler alongside the SAI533-H63/PRP S1 is a prudent inventory decision for any plant with aging CENTUM VP infrastructure.

Finally, for facilities managing multiple CENTUM VP nodes across a large plant, a spare module inventory policy covering at least one SAI533-H63/PRP S1 per node type, combined with spares for the SDV series digital output modules and AAI series multi-point analog I/O modules, provides comprehensive coverage against unplanned I/O failures. This multi-module stocking approach is widely adopted in petrochemical and power generation facilities where CENTUM VP systems are expected to operate continuously for 15–25 years.

Strategic Replacement Solutions

The SAI533-H63/PRP S1 is a direct replacement for earlier CENTUM VP analog output modules including the SAI533-H03 and non-redundant SAI533 variants, provided the node carrier and software configuration are updated to recognize the PRP redundancy architecture. This upgrade path allows plants to enhance system reliability without replacing the entire field control station — a significant capital cost avoidance.

For facilities transitioning from legacy CENTUM CS 3000 systems to CENTUM VP, the SAI533-H63/PRP S1 is compatible with the CENTUM VP migration framework, enabling phased I/O node upgrades while retaining existing field wiring and marshalling infrastructure. This compatibility dramatically reduces migration project scope and risk.

When sourcing replacement modules for aging CENTUM VP systems, original Yokogawa parts are strongly preferred over third-party alternatives. Original modules carry factory calibration data, guaranteed firmware compatibility, and full HART protocol support — factors that are critical for maintaining loop accuracy in regulatory-compliant processes such as pharmaceutical batch manufacturing or custody transfer metering in oil & gas.

All SAI533-H63/PRP S1 units supplied by TOPNLMS are sourced from authorized channels, individually tested for output accuracy and communication integrity prior to shipment, and backed by a 12-month warranty. Units are shipped with ESD-protective packaging and include a test report upon request.

Support FAQ

Q1: Is the SAI533-H63/PRP S1 compatible with all CENTUM VP revisions?
The SAI533-H63/PRP S1 is compatible with CENTUM VP R4.x, R5.x, and R6.x field I/O node configurations. Compatibility with specific node carrier types (e.g., FIO node, KFCS, FFCS) should be verified against the plant’s CENTUM VP system configuration documentation. Contact our technical team with your node model and software revision for confirmation before ordering.

Q2: What is included in the 12-month warranty and pre-shipment testing?
Every SAI533-H63/PRP S1 unit undergoes functional output accuracy testing, channel isolation verification, and bus communication checks before shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. A test report is available upon request. Warranty claims are processed within 5 business days of fault confirmation.

Q3: How quickly can the SAI533-H63/PRP S1 be replaced in the field?
The SAI533-H63/PRP S1 supports hot-swap replacement within a redundant CENTUM VP node configuration, meaning the replacement can be performed without shutting down the entire field control station. The replacement procedure typically takes 15–30 minutes for a trained DCS maintenance engineer, followed by a loop verification step in CENTUM VP Builder. Detailed replacement procedures are available in the Yokogawa CENTUM VP maintenance manual (IM 33J01B30-01EN).

Q4: What is the recommended spare inventory strategy for CENTUM VP analog output modules?
For plants with 3 or more CENTUM VP field control stations, maintaining a minimum of 2 SAI533-H63/PRP S1 units in local spare inventory is recommended. This covers both emergency replacement and scheduled preventive maintenance cycles. For plants with critical continuous processes (e.g., refinery, power generation), a 1:5 spare ratio (one spare per five installed modules) is an industry-standard benchmark. TOPNLMS offers volume pricing for multi-unit spare inventory orders — contact us for a quotation.
