Yokogawa SAI143-S33/PRP-S2 Upgrade Solution for CENTUM VP

Product Overview

Yokogawa SAI143-S33/PRP-S2 Upgrade Solution for CENTUM VP: Smooth Transition from Legacy DCS Systems

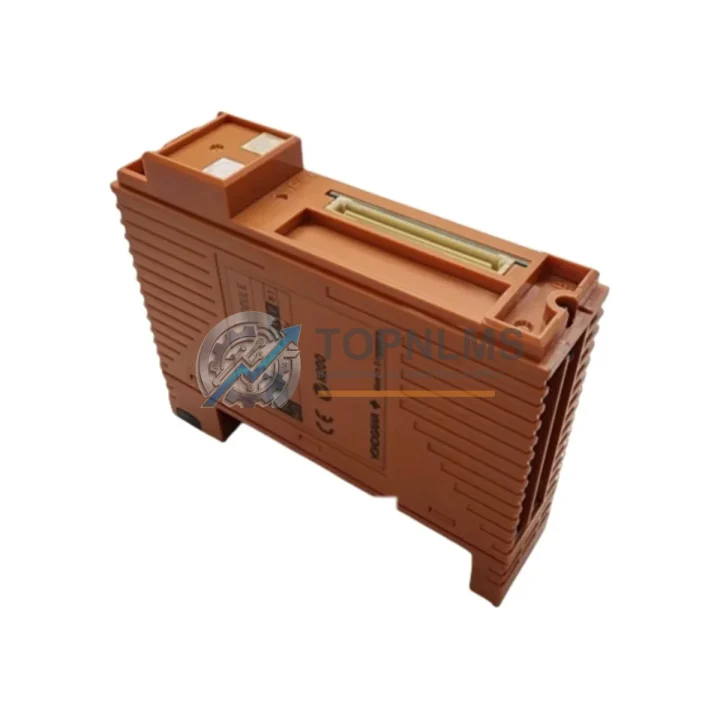

The Yokogawa SAI143-S33/PRP-S2 is a 16-channel analog input signal conditioner module engineered for the CENTUM VP Distributed Control System platform. As aging CENTUM CS 3000 installations and early-generation CENTUM VP systems approach end-of-life, plant engineers and procurement managers are under increasing pressure to identify verified replacement and upgrade paths that preserve existing field wiring, minimize engineering rework, and eliminate unplanned process downtime. TOPNLMS maintains verified stock of the SAI143-S33/PRP-S2, fully tested and ready for immediate dispatch from our Xiamen warehouse, with a 12-month warranty on every unit shipped.

The SAI143-S33/PRP-S2 accepts 4–20 mA analog input signals across 16 single-ended channels and provides HART 5/6/7 communication pass-through, making it fully compatible with the existing field instrument loop wiring found in most CENTUM CS 3000 and CENTUM VP installations. When migrating from an older SAI143 variant or a discontinued SAI133 module, the physical form factor, terminal block pinout, and ESB (Enhanced Signal Bus) backplane interface remain consistent. Technicians can perform a hot-swap replacement within a standard maintenance window without rewiring the marshalling cabinet or modifying the FCS (Field Control Station) configuration database beyond a module re-registration step in CENTUM VP Builder.

For sites running CENTUM VP R5 or R6, the SAI143-S33/PRP-S2 integrates directly into the existing AFV10D or AFV30D field control unit chassis. The module occupies a standard I/O slot and communicates over the ESB backplane, eliminating the need for additional signal converters or interface adapters. Engineers migrating from CENTUM CS 3000 will find that the Vnet/IP protocol stack used by the SAI143-S33/PRP-S2 is backward-compatible with existing network switch infrastructure, provided the ESB bus coupler firmware is updated to the current revision prior to commissioning.

For procurement teams managing critical process applications, the SAI143-S33/PRP-S2 is an ideal candidate for both immediate corrective replacement and long-term spare parts inventory programs. TOPNLMS maintains serialized stock records and can provide batch testing reports and export documentation suitable for customs clearance in major industrial markets. Standard shipping from Xiamen is 3–7 business days to most destinations, with express options available for urgent plant requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP migration rarely involves a single module swap. Upgrading from a CENTUM CS 3000 or aging CENTUM VP R3/R4 installation to a current-generation architecture requires a coordinated approach across multiple system layers. When replacing the SAI143-S33/PRP-S2, engineers typically also evaluate the condition of the AFV10D Field Control Unit, which serves as the host chassis for all I/O modules in the CENTUM VP architecture. If the AFV10D is approaching its own end-of-life cycle, replacing it alongside the SAI143-S33/PRP-S2 during the same maintenance outage eliminates the need for a second planned shutdown and reduces total migration cost.

On the power distribution side, the PW481 or PW482 power supply modules that feed the AFV10D backplane should be inspected and replaced if they show signs of capacitor aging or output voltage drift. A failing power supply is a common root cause of intermittent analog input errors that are frequently misdiagnosed as module faults. Addressing the power supply during the same migration window prevents repeat failures after the SAI143-S33/PRP-S2 is commissioned. Similarly, the ESB10D or ESB20D bus coupler modules that bridge the Vnet/IP network to the I/O chassis backplane should be confirmed to be running current firmware before the new module is brought online.

For sites that are also upgrading their field instruments, the HART pass-through capability of the SAI143-S33/PRP-S2 enables direct communication with HART-enabled transmitters — such as Yokogawa EJA110E differential pressure transmitters or EJA210E flange-mounted units — without requiring a separate HART multiplexer or modem. This simplifies the control cabinet layout and reduces the number of discrete components that require ongoing maintenance. If the existing marshalling cabinet uses older terminal blocks that are not rated for HART signal integrity, upgrading to shielded terminal assemblies compatible with the CENTUM VP I/O wiring standard is recommended as part of the same retrofit scope.

For projects that include analog output expansion alongside the input module upgrade, the SAO144 analog output module is the natural companion to the SAI143-S33/PRP-S2 within the same AFV10D chassis, sharing the same backplane power and ESB communication architecture. Sites that are also replacing their operator stations should evaluate the CENTUM VP HIS (Human Interface Station) running Exaopc OPC server software, which provides a standardized data bridge to third-party SCADA and historian systems without requiring changes to the FCS function block logic. For projects that extend into the safety layer, the ProSafe-RS safety controller integrates with the CENTUM VP system via Vnet/IP, allowing the SAI143-S33/PRP-S2 analog input data to be shared across both the process control and safety instrumented system layers without additional signal conditioning hardware.

For remote I/O applications where the control cabinet is located far from the field junction boxes, the RIO (Remote I/O) node architecture supported by CENTUM VP allows the SAI143-S33/PRP-S2 to be deployed in a distributed configuration, reducing field cable runs and simplifying the overall system architecture. Signal isolators and surge protection barriers installed at the marshalling cabinet input terminals further protect the SAI143-S33/PRP-S2 from field-induced transients, which is particularly important in petrochemical and power generation environments where long cable runs are common.

Retrofit Guidance FAQ

Q: Can I replace an SAI133 with the SAI143-S33/PRP-S2 without rewiring the field terminals?
A: Yes. The SAI143-S33/PRP-S2 uses the same terminal block pinout as the SAI133. Existing field wiring can remain in place. The only required step is to re-register the new module in the FCS engineering database using CENTUM VP Builder. Total engineering time for a single module swap is typically under two hours.

Q: Is the SAI143-S33/PRP-S2 compatible with CENTUM CS 3000 chassis?
A: The SAI143-S33/PRP-S2 is designed for the CENTUM VP platform. While the physical slot dimensions are similar, the ESB bus protocol and backplane power architecture differ between CS 3000 and CENTUM VP. A direct slot-for-slot swap into a CS 3000 chassis is not supported without the appropriate bus coupler upgrade and FCS migration. Contact TOPNLMS for a full migration assessment if your site is running CS 3000.

Q: What communication protocols does the SAI143-S33/PRP-S2 support?
A: The module communicates over the ESB (Enhanced Signal Bus) backplane and supports HART 5, 6, and 7 pass-through for connected field instruments. It does not require a separate HART modem or multiplexer when used within the CENTUM VP architecture. Vnet/IP is used for communication between the FCS and the engineering and operator stations.

Q: How much physical space does the module require in the control cabinet?
A: The SAI143-S33/PRP-S2 occupies a single standard I/O slot in the AFV10D or AFV30D field control unit. No additional DIN rail space or external enclosure is required. The module is hot-insertable, allowing replacement without powering down the entire FCS, which is critical for continuous process applications where a full shutdown is not acceptable.

Q: What programming changes are required after replacing the module?
A: In most cases, only a module re-registration step in CENTUM VP Builder is required. Existing function block logic, tag assignments, and alarm configurations are preserved. If upgrading from an SAI133 (which lacks HART), additional HART device registration steps may be required if HART diagnostics are to be enabled on the newly connected field instruments.

Q: Can the SAI143-S33/PRP-S2 be used as a long-term spare for an existing CENTUM VP installation?
A: Yes. TOPNLMS recommends holding at least one spare SAI143-S33/PRP-S2 per FCS node for critical process applications. Our stock is tested, serialized, and shipped with a 12-month warranty, making it suitable for both immediate corrective replacement and long-term spare inventory programs. We can provide batch testing reports and serialized unit records for quality management documentation.

Q: What is the lead time and shipping arrangement?
A: Units are dispatched from our Xiamen warehouse within 1–2 business days of order confirmation. Standard international shipping is 3–7 business days to most destinations. Express courier options are available for urgent plant requirements. Contact [email protected] or +86 18359293191 for expedited arrangements.

Warranty Assurance

Every SAI143-S33/PRP-S2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a functional verification test that confirms analog input channel accuracy across all 16 channels, HART communication integrity for HART 5/6/7 devices, ESB bus communication handshake, and backplane power draw within Yokogawa’s published specifications. Units that do not pass this verification are not listed for sale and are not dispatched to customers.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours for all warranty inquiries received via email or phone. We maintain a dedicated stock of tested spare modules to ensure that warranty replacements can be dispatched without delay, minimizing the impact on your plant operations and avoiding extended process downtime.

For procurement teams managing multi-site spare parts programs, TOPNLMS can provide batch testing reports, serialized unit records, and export documentation suitable for customs clearance in major industrial markets including the EU, Southeast Asia, the Middle East, and South America. All units are shipped with original packaging where available, and with a TOPNLMS inspection certificate confirming pre-shipment test results.

Our procurement support team is available to assist with purchase order processing, proforma invoice issuance, and technical documentation requests. For volume orders or long-term supply agreements, contact our sales team directly to discuss pricing, lead time commitments, and quality assurance arrangements tailored to your plant’s maintenance schedule.
