Yokogawa SAI143-H63 S4 Replacement for CENTUM VP CS 3000

Product Overview

Yokogawa SAI143-H63 S4 Replacement for CENTUM VP / CS 3000: Seamless Migration & Upgrade Solution

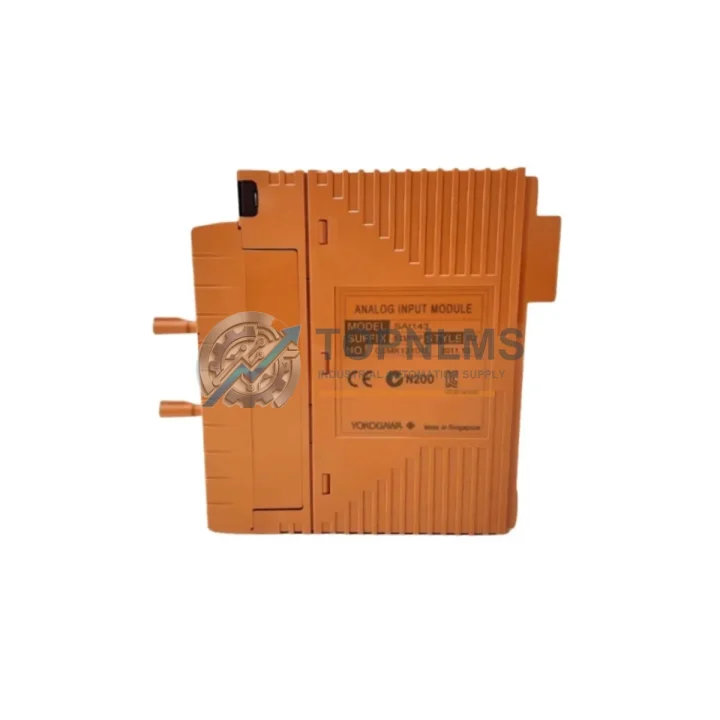

The Yokogawa SAI143-H63 S4 is a 16-channel isolated analog input module designed for the CENTUM VP and CS 3000 distributed control systems. As legacy CS 3000 installations approach end-of-life and CENTUM VP systems continue to expand, procurement teams and control engineers increasingly require a reliable, drop-in replacement that preserves existing wiring infrastructure, retains program compatibility, and minimizes plant downtime during the transition. TOPNLMS stocks verified SAI143-H63 S4 units ready for immediate dispatch, supporting both emergency breakdown replacements and planned system modernization projects.

The SAI143-H63 S4 accepts 4–20 mA and 1–5 V analog signals across all 16 channels with full channel-to-channel isolation, making it a direct functional equivalent for aging SAI143 variants previously installed in CS 3000 field control stations. Engineers migrating from earlier CENTUM CS or CS 3000 FCS cabinets will find that the module slots directly into the existing I/O nest without requiring new terminal block wiring, provided the nest and field terminal assembly (FTA) remain compatible. This dramatically reduces retrofit labor and eliminates the risk of miswiring during cutover.

When planning a CENTUM VP upgrade from a CS 3000 platform, the SAI143-H63 S4 is typically deployed alongside the AFV10D or AFV30D field control unit, which serves as the replacement processor for the legacy FCS. The module communicates over the Vnet/IP control network, maintaining full compatibility with the CENTUM VP engineering environment and allowing existing function block programs to be reused with minimal modification. This is a critical advantage for plants that have invested years in tuning PID loops and sequence logic within the CENTUM CS 3000 builder environment.

Field installations commonly pair the SAI143-H63 S4 with the AAI141-S03 and AAI143-H00 analog input modules in multi-nest FCS configurations, where different channel densities or isolation requirements apply to different process loops. In applications requiring analog output alongside input, the AAO141-S03 analog output module is frequently installed in the same I/O nest, sharing the same power bus and Vnet/IP segment. The SAI143-H63 S4’s isolated architecture is particularly valued in environments with ground loop interference, such as those found in refinery, chemical, and power generation control rooms.

For systems that also incorporate digital I/O, the SDV144 and SDV541 digital input/output modules are commonly co-installed in the same FCS nest. Communication between the FCS and remote marshalling panels is typically handled via the ALR111 remote I/O module or the ESB bus coupler, both of which remain compatible with the CENTUM VP architecture when the SAI143-H63 S4 is used as the analog front-end. Engineers should verify the ESB bus address configuration and confirm that the FTA wiring harness matches the H63 terminal assignment before powering up the replacement module.

Power supply compatibility is another key consideration during migration. The SAI143-H63 S4 operates from the standard 24 VDC I/O bus supplied by the PW481 or PW482 power supply modules within the CENTUM VP nest. If the existing CS 3000 cabinet uses an older power supply variant, it is advisable to verify output voltage tolerance before installation. In most cases, the existing power supply remains serviceable, and no additional power infrastructure changes are required.

For plants undertaking a phased migration — where CS 3000 and CENTUM VP systems operate in parallel during transition — the SAI143-H63 S4 can be pre-configured and bench-tested offline using the CENTUM VP engineering workstation before being installed in the live FCS. This approach, combined with a hot-standby FCS configuration using the AFV10D redundant controller, allows cutover to be completed within a single maintenance window, significantly reducing the risk of extended process interruption.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete CENTUM VP migration or CS 3000 retrofit typically involves more than a single module swap. The SAI143-H63 S4 is most effective when deployed as part of a coordinated upgrade that addresses the full I/O and control architecture. The AFV10D field control unit provides the processing backbone for the new CENTUM VP FCS, replacing the legacy CS 3000 FCS processor while retaining the existing I/O nest structure. For analog output requirements, the AAO141-S03 analog output module integrates directly into the same nest, sharing the Vnet/IP segment and simplifying engineering configuration.

Digital I/O expansion is handled by the SDV144 digital input module and SDV541 digital output module, which are commonly installed alongside the SAI143-H63 S4 in mixed I/O applications. Remote marshalling and long-distance field wiring are supported by the ALR111 remote I/O module, which extends the Vnet/IP network to satellite control panels without requiring additional engineering licenses. For applications requiring signal conditioning or galvanic isolation at the field junction box, signal isolators such as the Yokogawa MTL or equivalent DIN-rail isolators are recommended to protect the SAI143-H63 S4 inputs from field-side transients.

Programming and commissioning support is facilitated by the CENTUM VP engineering workstation software, which allows offline simulation of the new FCS configuration before live cutover. The PW481 power supply module ensures stable 24 VDC delivery to the I/O nest throughout the migration process. Together, these components form a validated upgrade path that preserves existing field wiring, minimizes re-engineering effort, and delivers a modern, supportable control architecture.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing with the SAI143-H63 S4?
A: Yes. The H63 terminal assignment is preserved between CS 3000 and CENTUM VP variants of the SAI143. Verify that the FTA model matches the H63 designation before installation to confirm terminal compatibility.

Q: Is the SAI143-H63 S4 compatible with CENTUM VP Vnet/IP communication?
A: Yes. The module is designed for the CENTUM VP I/O architecture and communicates over the Vnet/IP control network. CS 3000 systems using ESB bus will require an FCS processor upgrade (e.g., AFV10D) to enable Vnet/IP communication.

Q: Do I need to modify my existing function block programs?
A: In most cases, existing PID and sequence programs created in the CENTUM CS 3000 builder can be migrated to the CENTUM VP engineering environment with minimal modification. Channel address mapping should be verified after migration.

Q: What physical space is required for installation?
A: The SAI143-H63 S4 uses the same plug-in module form factor as the CS 3000 SAI143 series. It installs in the standard CENTUM VP I/O nest without requiring additional mounting hardware or cabinet modifications.

Q: How do I handle ground loop issues during migration?
A: The SAI143-H63 S4 provides full channel-to-channel isolation, which mitigates most ground loop interference. For severe cases, additional DIN-rail signal isolators at the field junction box are recommended.

Warranty Assurance

Every SAI143-H63 S4 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification to confirm signal integrity, channel isolation, and communication readiness. In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support with priority processing to minimize impact on your plant operations.

Orders are processed and dispatched from our Xiamen warehouse, with express international shipping available to most destinations. Lead times for in-stock units are typically 1–3 business days. For urgent breakdown replacements, please contact our sales team directly to arrange expedited dispatch. Our after-sales team is available to assist with installation queries, compatibility confirmation, and documentation requests throughout the warranty period.

TOPNLMS is committed to supporting industrial automation professionals with reliable, verified components and responsive technical assistance. Whether you are managing a planned CENTUM VP migration or responding to an unplanned CS 3000 module failure, our procurement and technical teams are ready to support your project from initial inquiry through to successful commissioning.
