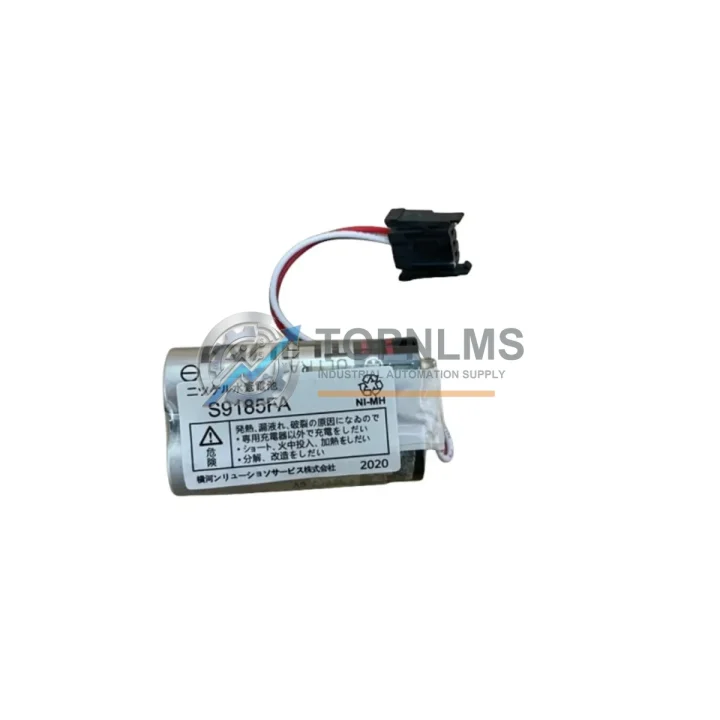

YOKOGAWA S9185FA Replacement Battery for CENTUM VP CS 3000: Seamless Transition from Legacy DCS Power Backup

The YOKOGAWA S9185FA is a lithium backup battery module designed to maintain SRAM data retention and real-time clock integrity within YOKOGAWA CENTUM VP and CS 3000 Distributed Control Systems. As these platforms age into their second and third decades of field operation, the S9185FA has become one of the most frequently requested replacement components across petrochemical, power generation, pulp and paper, and pharmaceutical process plants worldwide.

When a facility’s existing S9185FA reaches end-of-service life — typically indicated by a low-battery alarm on the HIS (Human Interface Station) or an FCS (Field Control Station) diagnostic warning — the replacement process must be executed with minimal disruption to the running process. Unlike a full controller swap, the S9185FA replacement does not require reprogramming of the FCU (Field Control Unit) or reconfiguration of the I/O bus. The module is a direct physical and electrical substitute, maintaining the same connector footprint, voltage specification, and mechanical envelope as the original factory-installed unit.

For sites operating CENTUM VP R5 or R6 alongside legacy CS 3000 R3 nodes on a shared Vnet/IP control network, the S9185FA is compatible across both generations. Engineers managing hybrid architectures — where newer AFV10D or AFV30D field control units coexist with older ACM11 or ACM12 communication modules — can standardize on the S9185FA as the single battery SKU for the entire site battery replacement program, simplifying procurement and spare-parts inventory.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful S9185FA battery replacement is rarely an isolated task. In practice, site engineers use the scheduled maintenance window to audit adjacent components and address any deferred replacements in the same rack or control cabinet.

On CENTUM VP systems, the battery replacement interval often coincides with inspection of the ACF11 or ACF12 field control unit power supply modules, which share the same maintenance cycle. If the FCS has been running continuously for more than five years, the ESB10D or ESB20D bus interface modules and the associated SB401 or SB811 I/O modules should be visually inspected for capacitor aging and connector oxidation at the same time.

For sites migrating from CS 3000 to CENTUM VP, the S9185FA replacement is typically the first step in a phased hardware refresh. The migration path commonly involves replacing the older ACM11 communication modules with newer Vnet/IP-compatible ACM12 units, upgrading the RIO (Remote I/O) nodes from RM series to the current generation, and transitioning HIS workstations from Windows XP-era hardware to CENTUM VP R6-certified platforms. During this transition, the AAI141 analog input module and AAI841 analog output module are frequently replaced in parallel, as their calibration data is stored in SRAM backed by the S9185FA battery — making a fresh battery installation a prerequisite before any calibration transfer.

In control cabinet environments where space is constrained, the S9185FA’s compact form factor ensures it can be swapped without disturbing adjacent terminal blocks, signal isolators, or the 24 VDC power distribution rail. Sites using YOKOGAWA’s PW481 or PW482 power supply modules in the same cabinet will find that the battery replacement can be completed without interrupting the 24 V bus to field instruments.

For facilities that also operate YOKOGAWA STARDOM FCN/FCJ controllers or ProSafe-RS safety instrumented systems in the same plant, the S9185FA is not cross-compatible with those platforms, but the procurement and logistics workflow established for CENTUM VP battery management can serve as a template for those systems’ own battery replacement programs.

Retrofit Guidance FAQ

Q: Does replacing the S9185FA require an FCS shutdown?
A: Yes. A brief, controlled FCS shutdown is required to safely swap the battery without risking SRAM data corruption. The shutdown procedure is documented in YOKOGAWA’s IM 33S01B30-01EN maintenance manual. Total downtime is typically under 15 minutes for a prepared maintenance team.

Q: Will the replacement battery affect my Vnet/IP network configuration?
A: No. The Vnet/IP domain configuration, node addresses, and communication parameters are stored in non-volatile flash memory on the ACM12 or ACM11 modules, not in the SRAM backed by the S9185FA. Battery replacement does not affect network topology.

Q: Is the TOPNLMS S9185FA compatible with both CENTUM VP R4 and R6?
A: Yes. The S9185FA specification is consistent across CENTUM VP R4, R5, and R6 revisions, as well as CS 3000 R3. The connector, voltage, and physical dimensions are unchanged across these generations.

Q: Can I replace the battery while the process is running?
A: No. The FCS must be in a safe, shutdown state before the battery is removed. Attempting a hot-swap risks SRAM data loss and may require a full FCS reload from the engineering workstation.

Q: What happens if the battery is not replaced promptly after a low-battery alarm?
A: The FCS will continue to operate normally until the battery is fully depleted. Upon the next power cycle or FCS restart, SRAM-resident data (including tuning parameters and setpoint history) may be lost, requiring restoration from the latest engineering database backup.

Warranty Assurance

Every S9185FA unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including voltage output confirmation, connector integrity check, and packaging inspection to ensure it arrives in field-ready condition.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit at no additional cost, with priority dispatch to minimize impact on your maintenance schedule. Our after-sales response target is within 24 hours of a warranty claim submission.

All units are shipped from our Xiamen warehouse with full export documentation, including commercial invoice, packing list, and certificate of origin where required. Express courier options (DHL, FedEx, UPS) are available for urgent replacement orders. Standard lead time for in-stock units is 3–5 business days to most international destinations.

For bulk procurement, site-wide battery replacement programs, or standing purchase orders, please contact our technical sales team directly to discuss pricing, lead times, and consignment stocking arrangements.
