Yokogawa S2CP471-01 S1 Replacement for CENTUM CS 3000

Product Overview

Yokogawa S2CP471-01 S1 Replacement for CENTUM CS 3000: Smooth Migration & Legacy System Upgrade

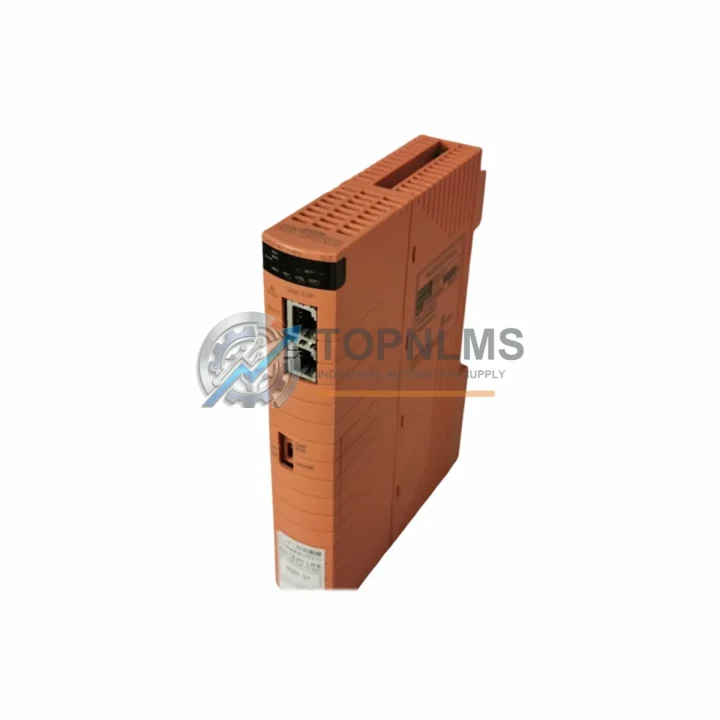

The Yokogawa S2CP471-01 S1 is a Field Control Station (FCS) Processor Module designed for the CENTUM CS 1000 and CENTUM CS 3000 Distributed Control System platforms. As Yokogawa progressively phases out legacy CENTUM CS series hardware in favour of the CENTUM VP architecture, many process plants operating refineries, chemical reactors, power generation units, and water treatment facilities face an urgent need to source verified replacement units for the S2CP471-01 S1 before their installed base reaches end-of-life. TOPNLMS maintains ready stock of this module to support both emergency breakdown replacements and planned system migration projects, with same-week dispatch from our Xiamen warehouse.

The S2CP471-01 S1 processor module serves as the computational core of the FCS cabinet, executing control strategies, managing I/O bus communication, and maintaining real-time data exchange with the HIS (Human Interface Station) over the Vnet/IP or legacy V-net control bus. When replacing a failed or end-of-life unit, engineers must verify the firmware revision stamped on the module label to ensure compatibility with the existing FCS configuration database. In most CENTUM CS 3000 installations, the S2CP471-01 S1 can be swapped without modifying the control builder project, provided the replacement unit carries an identical or higher firmware revision — a critical advantage that minimises engineering hours and reduces planned shutdown windows to under four hours in typical single-FCS topologies.

Migration from CENTUM CS 1000 to CENTUM CS 3000 often involves replacing the earlier S2CP451 processor card with the S2CP471-01 S1, which offers expanded memory capacity, improved scan-cycle performance, and support for the enhanced function block library introduced in CENTUM CS 3000 R3 and later. During this upgrade, the existing S2BU-series bus unit and the S2MM-series main module mounting base can typically be retained, reducing rack-level hardware expenditure. The S2CP471-01 S1 also maintains backward compatibility with the S2RIO-series remote I/O units connected via the ER bus, meaning field wiring to analog input modules such as the AAI141-S00, digital output modules such as the ADO141-P50, and thermocouple input modules such as the AAT141-S00 does not require modification during the processor swap.

For plants undertaking a phased migration toward CENTUM VP, the S2CP471-01 S1 is frequently used as an interim replacement to extend the operational life of existing FCS cabinets while the VP migration is engineered and budgeted. In this scenario, the module works alongside the existing Vnet coupler cards and the FCS power supply units — typically the S2PW481 or S2PW482 dual-redundant power modules — without requiring changes to the cabinet backplane or the 24 VDC field power distribution. Engineers should note that the CENTUM VP FCS processor, the CP451-10 or CP461-10, uses a different physical form factor and connector pinout, so the S2CP471-01 S1 is not mechanically interchangeable with VP-generation hardware; it is, however, the correct like-for-like replacement within the CS 3000 generation.

Communication integrity is a primary concern during any FCS processor replacement. The S2CP471-01 S1 communicates with the engineering workstation running CENTUM CS 3000 Control Builder via the Vnet control bus, using Yokogawa’s proprietary token-passing protocol. Before hot-swap or cold-swap replacement, the site engineer should download and archive the current FCS configuration using the Control Builder offline backup function. After installing the replacement S2CP471-01 S1, the configuration is reloaded via the Vnet connection, and the module performs a self-diagnostic sequence that verifies memory integrity, I/O bus continuity, and Vnet node address assignment. In redundant FCS configurations — where a primary and a standby S2CP471-01 S1 are installed in the same cabinet — the replacement of the standby unit can be performed online without interrupting process control, provided the primary unit remains healthy throughout the procedure.

Physical installation requires attention to the module’s card-guide alignment within the FCS sub-unit chassis. The S2CP471-01 S1 is secured by a front-panel locking lever and connects to the backplane via a 96-pin DIN connector. ESD precautions are mandatory: the module contains CMOS logic devices sensitive to electrostatic discharge, and all handling should be performed with a grounded wrist strap and on an ESD-safe mat. Cabinet ambient temperature must remain within the 0–55 °C operating range specified in Yokogawa’s hardware manual IM 33S01B30-01EN, and relative humidity must not exceed 90% non-condensing. The module’s weight of approximately 1,480 g should be supported during insertion to avoid stress on the backplane connector.

Procurement teams evaluating the S2CP471-01 S1 as a replacement or upgrade component should consider the full bill of materials for a complete FCS restoration. Commonly co-ordered items include the S2MM-series module mounting base, the S2BU-series bus unit, redundant Vnet coupler cards, and the S2PW481 power supply module. For sites also upgrading their operator interface, the Yokogawa FAST/TOOLS SCADA or a replacement HIS running Windows Server with the CENTUM CS 3000 HIS software package may be required. TOPNLMS can advise on compatible hardware combinations based on your existing FCS cabinet serial number and installed revision level.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete FCS processor migration rarely involves the S2CP471-01 S1 in isolation. In practice, site engineers order a coordinated set of components to ensure the restored FCS cabinet meets the original design specification. The S2MM-series module mounting base provides the physical chassis into which the S2CP471-01 S1 is installed, and retaining the existing base eliminates the need to re-terminate field cables at the terminal assembly. The S2BU-series bus unit manages the internal communication backplane between the processor and the I/O sub-units, and its condition should be verified before commissioning the replacement processor. Redundant Vnet coupler cards — installed in pairs for fault-tolerant control bus connectivity — should be inspected for corrosion or connector wear during the same maintenance window.

On the I/O side, analog input modules such as the AAI141-S00 and thermocouple input modules such as the AAT141-S00 connect to the FCS via the ER bus and require no reconfiguration when the processor is replaced, provided the I/O module addresses remain unchanged in the Control Builder database. Digital output modules such as the ADO141-P50 similarly retain their field wiring and address assignments. For sites where the existing I/O modules are also approaching end-of-life, TOPNLMS recommends a concurrent audit of the I/O sub-unit population to identify any modules showing elevated error counts in the FCS diagnostic log.

Power supply integrity is equally important: the S2PW481 and S2PW482 dual-redundant power modules should be load-tested after the processor replacement to confirm that the 5 VDC and 24 VDC rails remain within specification under full I/O load. For sites upgrading their operator interface in parallel, a replacement HIS workstation running the CENTUM CS 3000 HIS software, connected to the Vnet via a Vnet/IP gateway, can be commissioned alongside the new processor module without interrupting field control. Engineering workstations running Control Builder should also be verified for software revision compatibility with the replacement S2CP471-01 S1 firmware level before the configuration download is performed.

Retrofit Guidance FAQ

Q: Can I replace the S2CP471-01 S1 without modifying my field wiring?
A: Yes. The S2CP471-01 S1 uses the same ER bus interface to the S2RIO remote I/O units as its predecessor. Field wiring to terminal assemblies connected to AAI141, ADO141, AAT141, and similar I/O modules does not require modification.

Q: Do I need to reload the FCS configuration after replacement?
A: In most cases, yes. After installing the replacement module, the FCS configuration must be downloaded from the engineering workstation via Control Builder. If the replacement unit carries the same firmware revision as the original, the download is a straightforward restore operation. If the firmware revision differs, a compatibility check against the Control Builder project revision is required before download.

Q: Is the S2CP471-01 S1 compatible with Vnet/IP?
A: The S2CP471-01 S1 supports the legacy V-net control bus natively. Vnet/IP compatibility depends on the installed Vnet coupler card revision and the FCS cabinet configuration. Consult your FCS cabinet wiring diagram and the Vnet/IP engineering guide IM 33S06B10-01EN for site-specific guidance.

Q: Can the standby processor be replaced online in a redundant FCS?
A: Yes. In a dual-redundant FCS configuration, the standby S2CP471-01 S1 can be replaced while the primary unit maintains process control. After installation, the new standby unit synchronises automatically with the primary. Yokogawa’s online replacement procedure should be followed as documented in the FCS hardware manual.

Q: What physical space does the S2CP471-01 S1 require?
A: The module occupies a single slot in the S2MM-series mounting base within the FCS sub-unit chassis. No additional cabinet space is required if the existing mounting base is retained.

Q: What communications protocols does the S2CP471-01 S1 support for third-party integration?
A: The FCS processor itself communicates via Yokogawa’s proprietary V-net protocol. Third-party protocol integration (Modbus, PROFIBUS, Foundation Fieldbus) is handled by dedicated communication modules installed in the same FCS cabinet, not by the processor module directly.

Warranty Assurance

Every Yokogawa S2CP471-01 S1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment functional inspection that verifies power-on self-test completion, backplane connector integrity, and label revision legibility. Units that do not pass inspection are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, subject to stock availability. Customers are required to return the defective unit within 30 days of receiving the replacement. Warranty coverage applies to failures arising from manufacturing defects or latent component faults and does not cover damage resulting from incorrect installation, overvoltage events, or physical impact.

For emergency breakdown situations, TOPNLMS offers priority dispatch with same-day or next-day shipping from Xiamen for orders confirmed before 14:00 CST. Our technical support team is available via email at [email protected] or by phone at +86 18359293191 to assist with firmware revision verification, compatibility queries, and installation guidance before and after purchase.

TOPNLMS maintains a documented quality management process for all industrial automation hardware, including incoming inspection records, storage condition logs, and outgoing test reports available on request. Procurement teams requiring traceability documentation for their vendor qualification process are encouraged to contact us before placing an order.
