Yokogawa PW481-50 S2 Replacement for CENTUM VP DCS: Smooth Transition & Legacy System Compatibility

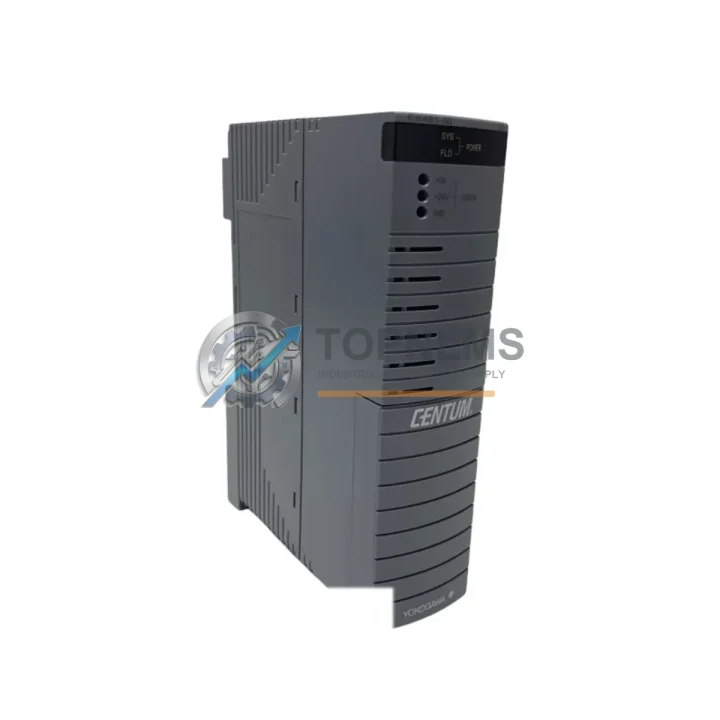

The Yokogawa PW481-50 S2 is a 50W DC power supply module designed for the CENTUM VP Distributed Control System (DCS) platform. As aging CENTUM CS 3000 and early CENTUM VP installations approach end-of-life, facilities across petrochemical, power generation, pulp & paper, and pharmaceutical industries are actively seeking verified replacement and upgrade solutions that minimize engineering rework, preserve existing wiring infrastructure, and reduce unplanned downtime. This listing provides a direct replacement and upgrade path for the PW481-50 S2, backed by pre-shipment functional testing and a 12-month warranty.

The PW481-50 S2 slots into the standard CENTUM VP field control station (FCS) power supply bay, delivering regulated 24V DC output to field I/O modules, communication cards, and processor units within the same control cabinet. When the original unit fails or reaches its recommended service interval, the replacement process is straightforward: the module is hot-swappable in most FCS configurations, meaning the control loop can remain operational during the swap if a redundant power supply such as the PW482 is already installed in the adjacent slot. Engineers migrating from older CENTUM CS 3000 power supply modules will find that the PW481-50 S2 maintains backward-compatible rail dimensions and connector pinouts, eliminating the need for cabinet modifications or new cable harnesses.

For sites running a full CENTUM VP FCS cabinet, the power supply interacts directly with the processor module (such as the CP451 or CP461 controller card), the ESB bus coupler, and downstream I/O modules including the AAI141, AAI143, and ADV151 analog input/output cards. Ensuring the replacement PW481-50 S2 is sourced from a verified channel is critical: counterfeit or refurbished-without-testing units can introduce voltage ripple that corrupts 4–20 mA analog signals or triggers nuisance trips on the Vnet/IP communication backbone. Every unit shipped from TOPNLMS undergoes load testing at rated output before dispatch.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP power supply replacement rarely happens in isolation. During a planned maintenance window or emergency swap, experienced DCS engineers typically audit the entire FCS cabinet to identify other components approaching end-of-life. The PW482 redundant power supply module is the natural companion to the PW481-50 S2: installing both units in the power bay establishes N+1 redundancy, so a future single-module failure will not interrupt process control. If the site is also upgrading its field controller, the CP451 or CP461 processor module may be evaluated at the same time, since these controllers share the same FCS backplane and power rail.

On the I/O side, the AAI141 4-channel analog input module and the ADV151 16-channel digital input module are among the most commonly replaced cards during a CENTUM VP refresh, as their capacitors and optocouplers degrade over 10–15 years of continuous operation. Replacing the power supply without auditing these I/O cards can result in intermittent signal errors that are difficult to trace after the maintenance window closes. Similarly, the ALR111 alarm module and the AIP588 intrinsically safe barrier interface should be inspected if the plant handles hazardous area signals.

For sites migrating from CENTUM CS 3000 to CENTUM VP, the ESB bus coupler and the Vnet/IP communication module (such as the BCV048) are key infrastructure components that must be verified for compatibility before the new power supply is commissioned. If the existing programming cable (e.g., the KS1-USB or RS-232C programming interface) is used to push updated FCS configuration files after the hardware swap, ensure the cable driver version matches the CENTUM VP R6 or later engineering workstation software. Facilities that also operate Yokogawa STARDOM or ProSafe-RS safety systems in the same control room should confirm that the 24V DC bus supplied by the PW481-50 S2 does not share a common ground with the safety system power rail, as this can introduce ground loop noise on SIL-rated I/O channels.

Retrofit Guidance FAQ

Q: Can I replace the PW481-50 S2 without shutting down the FCS?
A: Yes, if a PW482 redundant power supply is installed and healthy in the adjacent slot. The FCS will continue operating on the redundant unit while you remove and replace the PW481-50 S2. If no redundant unit is present, a controlled shutdown of the affected FCS is required before swapping the module.

Q: Is rewiring required when replacing an S1 revision with the S2?
A: No. The S2 revision uses the same backplane connector and rail dimensions as the S1. The replacement is a direct mechanical and electrical drop-in. No wiring changes, no cabinet modifications.

Q: Does replacing the power supply require any changes to the FCS configuration or Vnet/IP settings?
A: No software or network configuration changes are required. The PW481-50 S2 is transparent to the CENTUM VP engineering workstation and does not appear as a configurable node on the Vnet/IP network. After installation, verify the green LED status indicators on the module and confirm normal operation in the FCS hardware diagnostic screen.

Q: Can this unit replace the older PW401 used in CENTUM CS 3000 cabinets?
A: The PW481-50 S2 is designed for CENTUM VP FCS cabinets. While the output voltage and power rating are similar, the physical bay dimensions and backplane connector of CS 3000 cabinets differ. A direct drop-in replacement for CS 3000 requires the CS 3000-specific power supply variant. Please contact us with your cabinet model number for confirmation before ordering.

Q: What communication protocols are affected during the swap?
A: If redundancy is maintained, no communication interruption occurs on Vnet/IP, Foundation Fieldbus H1, HART, or PROFIBUS DP segments powered by the FCS. If a full shutdown is required, all field device communication on that FCS segment will be interrupted for the duration of the swap, typically 15–30 minutes for an experienced technician.

Q: What physical space is required in the control cabinet?
A: The PW481-50 S2 occupies a single power supply slot in the standard CENTUM VP FCS cabinet. No additional DIN rail space or panel cutout is required. Ensure adequate ventilation clearance (minimum 50mm above and below the module) per Yokogawa installation guidelines.

Warranty Assurance

Every PW481-50 S2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a multi-point functional test including: input voltage range verification (100–240V AC), output voltage regulation check at 25%, 50%, 75%, and 100% rated load, ripple and noise measurement, and LED status indicator verification. Units that do not meet Yokogawa’s published specifications are quarantined and not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement dispatch within 3 business days of fault confirmation. Our technical support team ([email protected]) is available to assist with installation questions, compatibility verification, and post-installation diagnostic support. We maintain stock of the PW481-50 S2 and related CENTUM VP components to support emergency replacement orders with same-day or next-day dispatch from our Xiamen warehouse.
