YOKOGAWA PW301-S4 Ruggedized Redundant DC Power Module

Product Overview

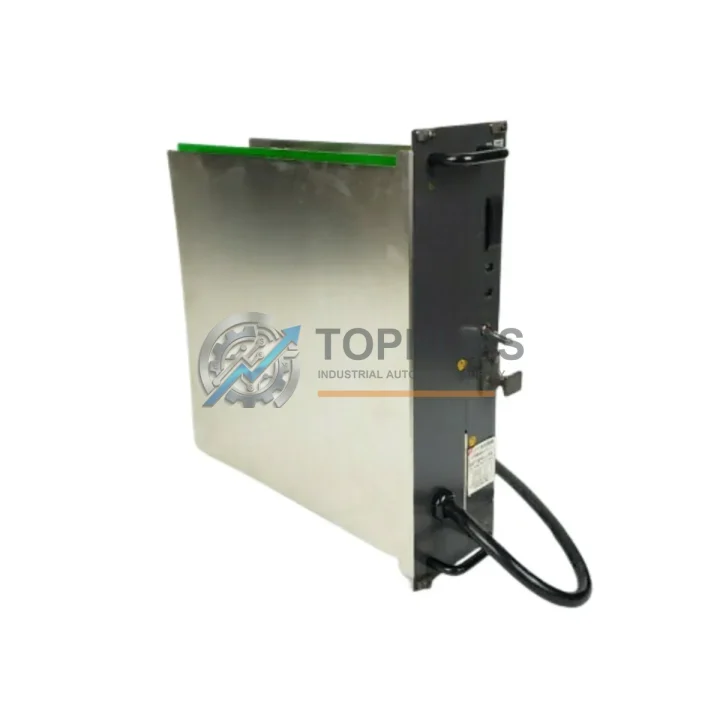

YOKOGAWA PW301-S4 Ruggedized Redundant DC Power Supply Module: Industrial Resilience for Harsh Environments

The YOKOGAWA PW301-S4 is a high-reliability redundant DC power supply module engineered for continuous, uninterrupted operation within the CENTUM CS and CENTUM CS3000 Field Control Station (FCS) architecture. Designed to meet the demanding requirements of process-critical industries, this module delivers stable, conditioned DC power to the FCS backplane under conditions of extreme temperature variation, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — environments where power interruption is simply not an option.

In oil refineries, chemical processing plants, offshore platforms, and power generation facilities, the PW301-S4 operates as the backbone of control system power integrity. Its dual-redundant configuration ensures that a single power path failure does not propagate to the control loop, protecting the availability of I/O modules, communication modules, and the FCS processor itself. The module’s ruggedized design conforms to YOKOGAWA’s stringent internal quality standards for industrial-grade components, making it a trusted choice for engineers specifying long-lifecycle DCS installations.

Rugged Specifications Table

Comprehensive Protection Solutions

The PW301-S4 does not operate in isolation — it is a critical node within a broader YOKOGAWA CENTUM CS3000 control architecture. In a fully configured FCS cabinet, the PW301-S4 supplies conditioned power to the YOKOGAWA CP345 field control processor, which orchestrates all real-time control logic. Alongside it, YOKOGAWA EB401 and EB501 node interface units distribute I/O signals across the field bus, while AAI141-S00 and AAI841-S00 analog input/output modules handle process variable acquisition and actuator command output.

In installations where communication integrity is paramount, the PW301-S4 supports the stable operation of YOKOGAWA ALR111 Vnet/IP communication modules, ensuring that the FCS maintains uninterrupted data exchange with the YOKOGAWA HIS (Human Interface Station) and engineering workstations. For safety-instrumented systems operating in parallel, the power supply’s redundant architecture is compatible with cabinet configurations that also house YOKOGAWA ProSafe-RS safety controller modules, enabling a unified power distribution strategy across both process control and safety layers.

Terminal modules such as the YOKOGAWA TB820V and associated marshalling components rely on the PW301-S4’s stable output to maintain signal integrity across long cable runs in high-noise environments. In heavy industrial sites — particularly those with large variable frequency drives, high-voltage switchgear, or arc furnaces nearby — the clean, regulated DC output of the PW301-S4 is essential to prevent ground loops and common-mode noise from corrupting analog measurement signals.

For facilities managing redundant FCS pairs, two PW301-S4 units are typically deployed in a load-sharing configuration, providing seamless failover without process interruption. This approach is standard practice in continuous production lines where even a momentary power dip can trigger costly shutdowns or safety system activations.

Application in Critical Infrastructure

The YOKOGAWA PW301-S4 has established a proven track record across the most demanding sectors of critical infrastructure:

Oil & Gas: In upstream and midstream facilities — including wellhead control panels, gas compression stations, and pipeline SCADA nodes — the PW301-S4 sustains FCS operation through wide ambient temperature swings, vibration from rotating machinery, and the electromagnetic interference generated by high-power motor drives. Its redundant architecture ensures that a single power module failure does not interrupt the continuous monitoring of flow, pressure, and temperature loops.

Power Generation: Thermal, hydroelectric, and combined-cycle power plants rely on CENTUM CS3000 systems for turbine control, boiler management, and grid synchronization. The PW301-S4 provides the stable DC backbone that keeps these control loops active during grid disturbances, generator start-up transients, and maintenance switching events.

Mining & Metallurgy: In ore processing plants and smelting operations, control cabinets are exposed to heavy dust loading, corrosive fumes, and severe mechanical vibration. The PW301-S4’s robust construction and sealed module format make it suitable for installation in NEMA-rated enclosures that protect against these ingress hazards, maintaining reliable power delivery to I/O and communication modules throughout the production cycle.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate 24/7 with minimal staffing. The redundant power architecture of the PW301-S4 reduces the risk of unplanned downtime in pump control, chemical dosing, and filtration management systems, supporting the long mean-time-between-failure (MTBF) requirements of these installations.

Chemical & Petrochemical: In hazardous area control rooms and junction boxes adjacent to classified zones, the PW301-S4 supports the power integrity of safety-related control loops, complementing the broader functional safety architecture of the plant.

Security & Quality FAQ

Q1: What warranty coverage is provided with the YOKOGAWA PW301-S4?
Every PW301-S4 unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. All modules undergo functional testing and visual inspection prior to dispatch. If a unit fails within the warranty period under normal operating conditions, we provide replacement or repair support. Contact [email protected] to initiate a warranty claim.

Q2: How is the module tested before shipment?
Each PW301-S4 is bench-tested for output voltage regulation, redundancy switchover function, and thermal stability before packaging. Units sourced from decommissioned systems are fully refurbished and re-tested to confirm they meet original YOKOGAWA performance specifications. Test records are available upon request for quality-critical procurement processes.

Q3: Is the PW301-S4 compatible with both CENTUM CS and CENTUM CS3000 systems?
Yes. The PW301-S4 is designed for use across the CENTUM CS and CENTUM CS3000 FCS platform families. It is mechanically and electrically compatible with the standard FCS power supply slot in both system generations. For integration into CENTUM VP systems or other YOKOGAWA platforms, please contact our technical team to confirm compatibility before ordering.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
TOPNLMS maintains a dedicated inventory of YOKOGAWA CENTUM CS3000 spare parts, including the PW301-S4, to support plant maintenance programs and emergency replacement requirements. We work with procurement teams to establish blanket order arrangements and priority allocation for critical spare parts. Inquiries for multi-unit or scheduled supply contracts are welcome at [email protected] or +86 18359293191.
