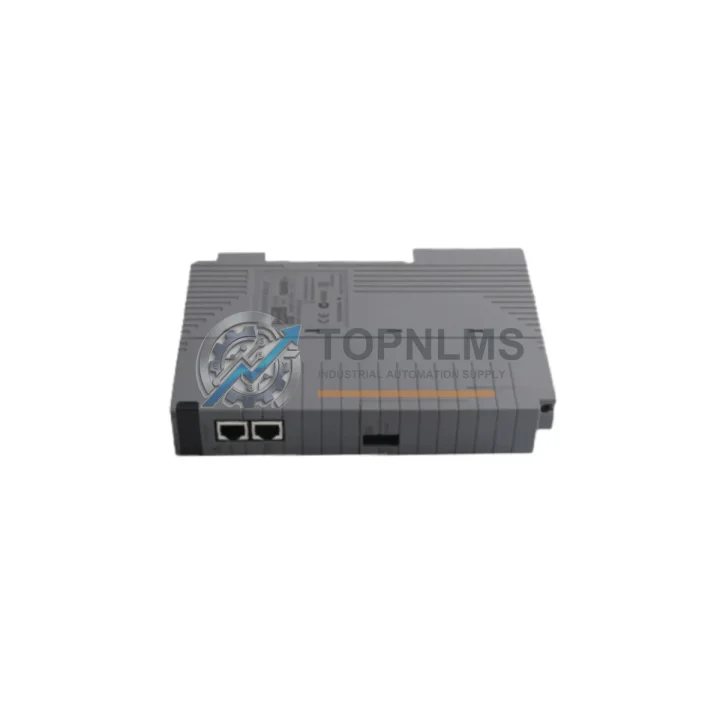

Yokogawa PW101 S2 Ruggedized DC Power Supply Module

Product Overview

Yokogawa PW101 S2 Ruggedized DC Power Supply Module: Industrial Resilience for Harsh Environments

The Yokogawa PW101 S2 is a ruggedized DC power supply module engineered for continuous, uninterrupted operation within the CENTUM CS 3000 Distributed Control System architecture. Designed to meet the demanding power integrity requirements of process-critical industries, the PW101 S2 delivers stable, conditioned DC power to field controllers, I/O modules, and communication buses even under extreme thermal cycling, high-humidity conditions, vibration, and electromagnetic interference (EMI) — conditions routinely encountered in oil and gas platforms, chemical processing plants, metallurgical facilities, and heavy industrial environments.

Unlike generic power supplies, the PW101 S2 is factory-calibrated and validated specifically for Yokogawa’s CENTUM CS 3000 platform, ensuring seamless compatibility with the system’s redundant power architecture. Its robust internal design incorporates transient voltage suppression, over-current protection, and thermal management circuitry that collectively extend mean time between failures (MTBF) in environments where unplanned downtime carries significant operational and safety consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The PW101 S2 operates as the power backbone for a broad ecosystem of CENTUM CS 3000 components. Within a typical control cabinet, it supplies conditioned DC power to the FCU (Field Control Unit) and its associated FIO (Field I/O) modules, including analog input cards, digital output cards, and thermocouple input modules. When deployed in redundant configurations, the PW101 S2 works in tandem with a secondary power supply unit — such as the PW481 or PW482 — to ensure zero-interruption power delivery during single-point failures.

In installations where the CENTUM CS 3000 system interfaces with field instrumentation via FOUNDATION Fieldbus (FF) or HART protocol, the PW101 S2 provides the stable power rail required by ALF111 Fieldbus communication modules and ESB bus coupler units. This is particularly critical in hazardous area installations where power fluctuations can trigger nuisance trips on safety instrumented systems (SIS) or cause data corruption on the process bus.

For facilities running hybrid architectures — where CENTUM CS 3000 coexists with Yokogawa’s ProSafe-RS Safety Controller — the PW101 S2’s clean power output prevents cross-domain interference between the control network and the safety network. Similarly, in panels housing STARDOM FCN/FCJ remote I/O nodes or Vnet/IP network switches, a stable power supply is non-negotiable for deterministic communication latency. The PW101 S2 meets these requirements without derating even at elevated ambient temperatures common in tropical or desert industrial sites.

Maintenance engineers managing aging CENTUM CS 3000 installations frequently source the PW101 S2 as a like-for-like replacement for failed or end-of-life power modules, avoiding costly system-wide upgrades. Its plug-and-play compatibility with existing backplane connectors and DIN-rail mounting hardware makes field replacement straightforward, minimizing mean time to repair (MTTR) during unplanned outages.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the PW101 S2 is deployed in wellhead control panels, compressor station automation cabinets, and pipeline SCADA outstations where ambient temperatures can swing dramatically between day and night cycles. Its wide operating temperature range and vibration-rated design ensure that power delivery to pressure transmitters, flow controllers, and emergency shutdown (ESD) relay modules remains uninterrupted.

In coal-fired and gas-fired power generation plants, the module supports boiler management systems and turbine control units where millisecond-level power interruptions can cascade into turbine trips and grid instability. The PW101 S2’s fast transient response and low output ripple are essential for maintaining the signal integrity of high-resolution analog I/O cards monitoring steam pressure, temperature gradients, and fuel flow rates.

In water and wastewater treatment facilities, the module powers CENTUM CS 3000 controllers managing dosing pumps, aeration blowers, and clarifier drives in environments characterized by high humidity, chemical vapors, and continuous 24/7 operation. Its non-condensing humidity tolerance and sealed terminal design resist corrosion from chlorine and ammonia atmospheres.

In metallurgical and steel production facilities, the PW101 S2 operates in control rooms adjacent to electric arc furnaces and rolling mills — environments with extreme electromagnetic noise generated by high-current switching equipment. Its EMI-hardened design, compliant with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity) standards, ensures that the DCS control loop remains stable even during furnace tap events or large motor starts.

In mining and mineral processing operations, the module is installed in remote, dust-laden environments where maintenance access is infrequent. Its high MTBF rating and 12-month warranty provide procurement teams with the confidence to stock the PW101 S2 as a critical spare, reducing the risk of extended production halts due to power module failure.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Yokogawa PW101 S2?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing — including output voltage verification, load regulation testing, and protection circuit validation — before dispatch. If a warranted defect is identified within the warranty period, we provide replacement or repair at no additional cost.

Q2: How is the PW101 S2 tested before shipment?
Every PW101 S2 unit is subject to a multi-point inspection protocol: visual inspection for physical integrity, powered-on output voltage and ripple measurement, over-current protection trip verification, and thermal stability check under load. Units that do not meet Yokogawa’s original performance specifications are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is the PW101 S2 compatible with all CENTUM CS 3000 configurations?
Yes. The PW101 S2 is designed for use across the full CENTUM CS 3000 product family, including standard and redundant FCS configurations, RIO (Remote I/O) bus architectures, and multi-node control networks. It is backward-compatible with earlier CENTUM CS revisions that share the same backplane power interface. For specific integration questions regarding your site’s DCS topology, contact our technical team before ordering.

Q4: Can you guarantee long-term supply of the PW101 S2 for ongoing maintenance contracts?
We maintain dedicated inventory of the PW101 S2 and other CENTUM CS 3000 legacy components to support long-term maintenance and spare parts programs. For facilities with multi-year maintenance contracts or planned turnaround schedules, we offer reserved stock arrangements and priority fulfillment. Contact us to discuss volume pricing, lead time commitments, and consignment stocking options tailored to your plant’s maintenance strategy.
