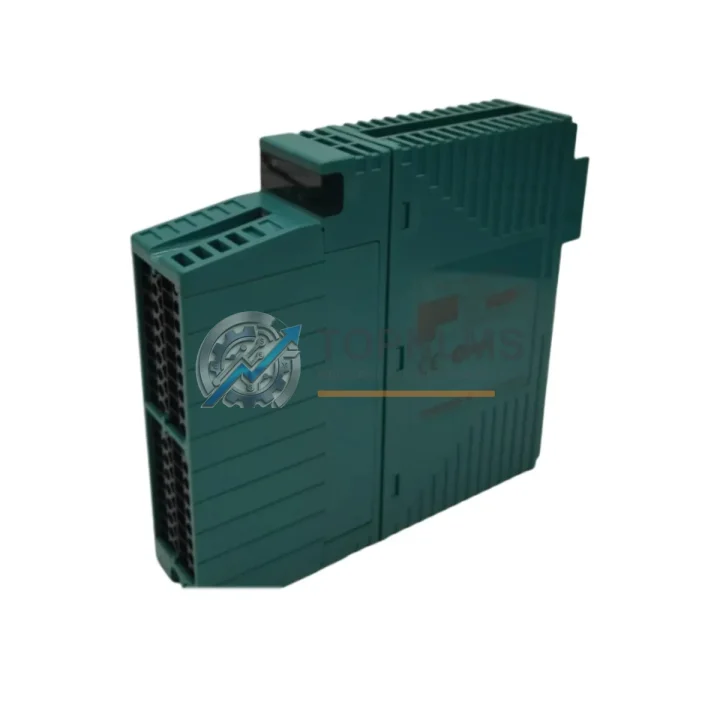

Yokogawa NFTR8S-00 Replacement for CENTUM VP CS 3000: Seamless Fieldbus Migration

The Yokogawa NFTR8S-00 is a Foundation Fieldbus H1 communication module designed for the CENTUM VP and CS 3000 distributed control systems. As Yokogawa progressively phases out legacy CS 3000 hardware, many process plants and refineries operating on older CENTUM CS 3000 architectures face an urgent need to source verified replacement modules or plan a structured migration path to CENTUM VP. The NFTR8S-00 serves as a critical bridge component in both scenarios — enabling plants to extend the operational life of existing fieldbus segments or to execute a phased upgrade without wholesale system replacement.

This module supports the Foundation Fieldbus H1 protocol at 31.25 kbps, providing deterministic, intrinsically safe communication between field instruments and the CENTUM VP or CS 3000 controller domain. Each NFTR8S-00 card manages up to two independent H1 fieldbus segments, allowing connection of smart field devices such as pressure transmitters, flow meters, control valves, and temperature elements directly on the fieldbus network without intermediate signal converters. When replacing a failed or end-of-life NFTR8S-00 in an existing installation, the module slots directly into the standard CENTUM VP I/O unit or CS 3000 field control station (FCS) node without requiring rewiring of the fieldbus trunk cable or modification of the segment terminator.

For plants migrating from CS 3000 to CENTUM VP, the NFTR8S-00 is fully compatible with the CENTUM VP FCS hardware platform, including the AFV10D and AFV30D field control units. The existing fieldbus segment wiring, junction boxes, and field instruments remain unchanged during the controller migration, dramatically reducing installation time and commissioning risk. Engineering teams can retain their existing FOUNDATION Fieldbus device descriptions (DD files) and function block configurations, minimizing the scope of control logic re-engineering. The CENTUM VP engineering environment, including the System View and FCS Builder tools, supports direct import of CS 3000 project data, further streamlining the migration workflow.

In multi-node CENTUM VP architectures, the NFTR8S-00 is typically installed alongside complementary I/O modules such as the AAI141-S analog input module, the AAI543-S analog output module, and the ADV151-P digital input module within the same I/O unit chassis. The Vnet/IP control network backbone connecting the FCS nodes to the HIS (Human Interface Station) and EWS (Engineering Workstation) remains fully operational during a card-level replacement, ensuring zero disruption to the supervisory control layer. For plants using the CENTUM VP R6 software platform, the NFTR8S-00 is supported under the current hardware compatibility matrix without firmware modification.

Power supply compatibility is an important consideration during replacement. The NFTR8S-00 draws power from the I/O unit’s internal bus, supplied by the PW481 or PW482 power supply modules. Before installing a replacement card, maintenance engineers should verify that the power supply module is within its rated load capacity, particularly in high-density I/O configurations. The fieldbus segment power conditioner, typically an external unit such as the Pepperl+Fuchs KFD2-HMM or equivalent, continues to supply the 24 VDC segment power independently of the NFTR8S-00 card swap, so field instruments remain energized throughout the replacement procedure.

Communication protocol compatibility extends beyond the H1 physical layer. The NFTR8S-00 supports standard FOUNDATION Fieldbus interoperability, meaning that third-party field devices from Emerson, Endress+Hauser, ABB, and Siemens that are registered with the Fieldbus Foundation can be integrated into the same segment without protocol conversion. This is particularly valuable during phased migrations where legacy Yokogawa field instruments such as the EJA110E differential pressure transmitter or the YTA710 temperature transmitter coexist with newer smart devices on the same H1 segment.

For control cabinet space planning, the NFTR8S-00 occupies a single slot in the standard CENTUM VP I/O unit, which accommodates up to 16 I/O or communication modules per unit. In compact FCS configurations using the AFV10D controller, space constraints may require careful slot allocation between fieldbus communication modules, analog I/O cards, and the ESB bus coupler module. Our technical team can assist with slot assignment planning based on your existing FCS configuration file upon request.

Procurement lead times for genuine Yokogawa NFTR8S-00 modules through standard distribution channels can extend to 12–20 weeks for new production units. TOPNLMS maintains verified stock of tested NFTR8S-00 modules available for immediate shipment from our Xiamen warehouse, supporting urgent replacement requirements with typical dispatch within 3–5 business days. All modules undergo functional verification testing prior to shipment, including H1 communication link validation and segment termination checks.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful NFTR8S-00 replacement or CENTUM VP migration rarely involves a single module in isolation. In most field scenarios, the fieldbus communication card works in concert with a broader set of system components that must be verified or simultaneously upgraded to ensure system integrity.

Within the same I/O unit, the AAI141-S 16-channel analog input module and AAI543-S analog output module handle conventional 4–20 mA signals from non-fieldbus instruments, and their firmware versions should be confirmed compatible with the target CENTUM VP software revision before the NFTR8S-00 swap. The ADV151-P digital input module, used for discrete status signals from motor control centers and valve limit switches, shares the same I/O unit backplane and should be inspected for any accumulated diagnostic faults during the maintenance window.

The ESB bus coupler module connecting the I/O unit to the FCS controller node is another component that warrants attention during a migration. If the existing ESB coupler is a legacy CS 3000 variant, it may require replacement with a CENTUM VP-compatible unit to support the enhanced diagnostics and redundancy features of the newer platform. Similarly, the PW481 or PW482 power supply module should be load-tested if additional I/O cards are being added to the unit as part of the upgrade scope.

On the field instrument side, plants migrating to CENTUM VP often take the opportunity to upgrade aging Yokogawa EJA110A differential pressure transmitters to the current EJA110E generation, which offers improved fieldbus device diagnostics and supports NAMUR NE107 status classification natively. The YTA710 temperature transmitter with FOUNDATION Fieldbus output is another common upgrade target, particularly in applications where the legacy YTA320 has reached its calibration interval limit.

For plants adding new fieldbus segments as part of the expansion, the CENTUM VP FCS node can accommodate additional NFTR8S-00 cards in available I/O unit slots, with each card supporting up to 16 field devices per segment under typical loading conditions. Segment power conditioners, field junction boxes, and cable termination resistors are external to the NFTR8S-00 and must be sized appropriately for the segment device count and cable length. Our team can provide segment loading calculations and cable sizing guidance as part of the procurement support service.

Retrofit Guidance FAQ

Q: Can I replace the NFTR8S-00 while the FCS is online?
A: Hot-swap capability depends on the FCS configuration and whether the affected fieldbus segment is in a redundant or non-redundant topology. In non-redundant single-segment configurations, the segment must be taken offline before card removal. In redundant H1 configurations with a backup segment, the primary segment can be switched to the backup before the card swap, minimizing process impact. Always consult the CENTUM VP maintenance manual and obtain a management of change (MOC) approval before performing live card replacements.

Q: Will my existing fieldbus device configurations be retained after replacing the NFTR8S-00?
A: Yes. The FOUNDATION Fieldbus device configurations, function block parameters, and link schedules are stored in the FCS project database, not on the NFTR8S-00 card itself. After installing the replacement card, the FCS will automatically re-establish communication with all registered field devices on the segment using the stored configuration. A full segment re-download from the engineering workstation is recommended to verify device status after the replacement.

Q: Is the NFTR8S-00 compatible with both CENTUM VP and CS 3000 systems?
A: The NFTR8S-00 is designed for the CENTUM VP hardware platform. For CS 3000 systems, the equivalent module designation may differ. Please provide your FCS model number and software revision when inquiring, and our technical team will confirm the correct replacement part number for your specific installation.

Q: What communication protocols does the NFTR8S-00 support beyond H1?
A: The NFTR8S-00 is dedicated to FOUNDATION Fieldbus H1 communication. For HART, PROFIBUS PA, or conventional analog I/O, separate module types within the CENTUM VP I/O family are required. If your migration scope includes protocol conversion or multi-protocol segment support, contact us for a system-level module selection review.

Q: How do I verify the physical installation space before ordering?
A: The NFTR8S-00 occupies one standard slot in the CENTUM VP I/O unit. Confirm the number of available empty slots in your target I/O unit using the System View hardware configuration display in the CENTUM VP engineering environment. If no slots are available, an additional I/O unit and ESB bus coupler may be required to expand the node capacity.

Warranty Assurance

Every Yokogawa NFTR8S-00 module shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured pre-shipment inspection that includes visual inspection for physical damage, connector integrity verification, and functional communication testing on a CENTUM VP test bench to confirm H1 segment establishment and device polling capability.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim confirmation, subject to fault verification. Customers are required to return the defective unit within 30 days of receiving the replacement. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions and does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Our after-sales support team is available via email and phone to assist with installation queries, compatibility confirmation, and commissioning guidance throughout the warranty period. For urgent plant shutdown scenarios, expedited technical support is available upon request. All procurement transactions include a formal invoice, packing list, and certificate of conformance to support your plant maintenance records and audit requirements.

TOPNLMS ships globally from our Xiamen warehouse, with standard international freight options including DHL Express, FedEx International Priority, and sea freight for bulk orders. Export documentation including commercial invoice, packing list, and country of origin certificate is provided for all international shipments to facilitate customs clearance.
