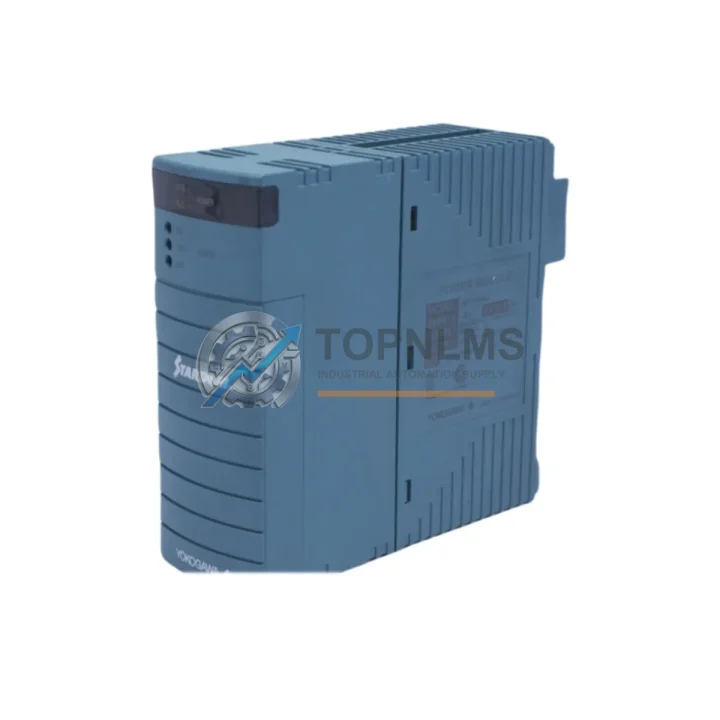

YOKOGAWA NFPW442-50 Replacement for CENTUM VP/CS 3000

Product Overview

YOKOGAWA NFPW442-50 Replacement & Upgrade Solution for CENTUM VP / CS 3000 Series

Migrating an aging distributed control system is rarely a single-component decision. When a YOKOGAWA NFPW442-50 50 Hz FCS Power Input Module reaches end-of-life or fails in the field, the ripple effect touches every layer of the control architecture — from the field control station (FCS) power bus to the upstream engineering workstation. This page is designed to help instrumentation engineers, procurement specialists, and plant maintenance teams source a verified replacement, plan a smooth cutover, and keep downtime to an absolute minimum.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful NFPW442-50 replacement rarely happens in isolation. In most CENTUM VP and CS 3000 installations, the FCS power input module sits alongside a tightly integrated set of components that must be evaluated — and often refreshed — during the same maintenance window.

On the power distribution side, the NFPW442-50 works in tandem with the NFPW441-50 redundant power module and the NFPB141 power bus unit. If either of these is approaching its recommended service interval, replacing them concurrently eliminates a second planned outage. The FCS chassis itself — typically an AFV10D or AFV30D field control unit — should be inspected for backplane connector wear whenever a power module is swapped.

On the I/O side, the field control station commonly hosts AAI141 analog input modules and AAI841 analog output modules. If the power fault that triggered this replacement also caused transient voltage spikes, these I/O modules should be bench-tested before the system is returned to service. Similarly, ADV151 digital input modules and ADV551 digital output modules in the same rack should be verified for correct operation.

For sites running FOUNDATION Fieldbus or HART communication, the ALF111 Fieldbus communication module and associated segment couplers should be checked for firmware compatibility with the replacement power module’s initialization sequence. Plants using Vnet/IP for inter-FCS communication should confirm that the CP451-10 or CP461-50 controller processor card is running a firmware revision that supports the NFPW442-50 hardware revision in use.

Finally, if the engineering workstation is running an older revision of CENTUM VP R5 or CS 3000 R3, this is an ideal time to verify that the hardware configuration database reflects the correct module type and slot assignment before the replacement unit is commissioned.

Retrofit Guidance FAQ

Q: Can I replace the NFPW442-50 without powering down the entire FCS?
A: YOKOGAWA FCS power modules are not hot-swappable in standard single-power configurations. In redundant power configurations using a paired NFPW441-50, a controlled switchover to the redundant supply is possible before removal. Always follow the site-specific safety procedure and YOKOGAWA’s field maintenance guidelines.

Q: Will the replacement unit require re-configuration in the engineering workstation?
A: No software re-configuration is required for a like-for-like NFPW442-50 replacement. The module is recognized automatically by the FCS on power-up. If the hardware revision differs from the original, verify compatibility in the CENTUM VP or CS 3000 hardware compatibility matrix.

Q: Is the NFPW442-50 compatible with both CENTUM VP and CS 3000?
A: Yes. The NFPW442-50 is designed for use in both CENTUM VP and CS 3000 field control stations that operate on 50 Hz power grids. It is not compatible with 60 Hz installations — for those sites, the NFPW442-60 is the correct variant.

Q: What are the physical installation requirements?
A: The module occupies a dedicated power slot in the YOKOGAWA FCS rack. No additional mounting hardware or adapter plates are required. Wiring connects via the standard FCS power terminal block. Confirm that the cabinet’s AC input voltage and frequency match the module’s rated input before installation.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, monitor the FCS status display on the engineering workstation for power module alarms. The NFPW442-50 provides onboard LED status indication for power-good and fault conditions. A full I/O scan and loop check is recommended before returning the FCS to automatic control.

Warranty Assurance

Every YOKOGAWA NFPW442-50 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a functional power-on test and visual inspection to verify connector integrity, LED operation, and absence of physical damage. Units are packed in anti-static ESD bags and double-boxed for safe international transit.

If a unit develops a fault within the warranty period, TOPNLMS provides a replacement dispatch or full refund — whichever the customer prefers — with no requirement to return the defective unit for minor claims. For larger orders, on-site inspection support can be arranged. Our average response time for warranty claims is under 24 hours on business days.

We maintain a standing inventory of NFPW442-50 and related YOKOGAWA DCS modules to support urgent plant maintenance requirements. Express shipping from our Xiamen warehouse is available to most destinations in Asia, the Middle East, and Europe, with typical transit times of 3–7 business days via DHL or FedEx.

For procurement inquiries, bulk pricing, or technical pre-sales support, contact our team directly.
