YOKOGAWA NFDV561-P00 Original Industrial Spare CENTUM VP

Product Overview

YOKOGAWA NFDV561-P00 Original Industrial Spare — CENTUM VP System Stability & Reliable Digital Output

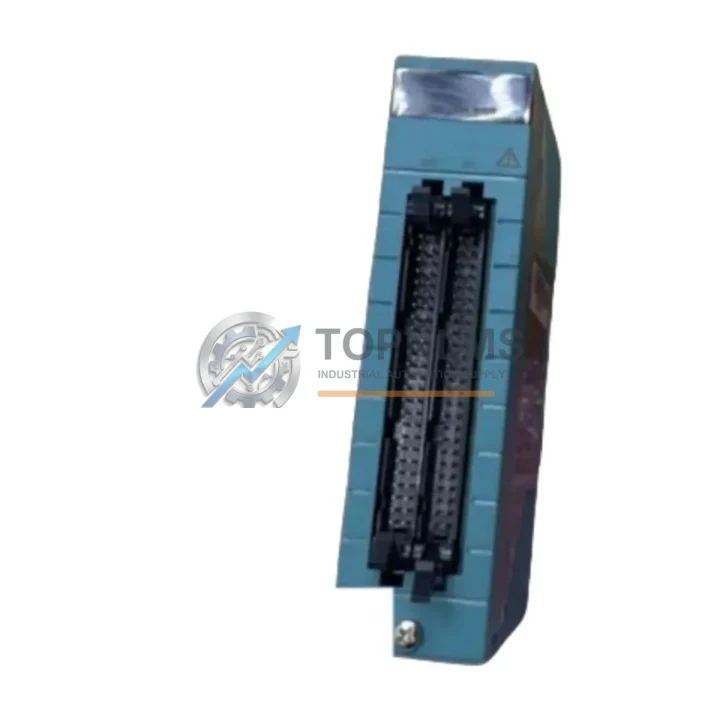

The YOKOGAWA NFDV561-P00 is an original digital output module designed for the CENTUM VP distributed control system (DCS) platform. As a critical I/O card within the field control station (FCS), this module governs discrete output signals to actuators, solenoid valves, motor starters, and relay-driven field devices across process industries including oil & gas, petrochemical, power generation, and pharmaceutical manufacturing. Maintaining a verified spare of the NFDV561-P00 in your maintenance inventory is a foundational step in any serious industrial uptime strategy.

Unplanned downtime caused by a failed digital output module can cascade rapidly — a single failed I/O card can disable an entire control loop, halt a production line, or trigger a plant-wide safety shutdown. The NFDV561-P00 is a direct, plug-compatible replacement for the installed CENTUM VP FCS chassis, requiring no software reconfiguration when swapped within the same system revision. This makes it one of the highest-value spare parts to stock for any facility running YOKOGAWA CENTUM VP infrastructure.

Critical Technical Specs

Preventive Maintenance Strategy for CENTUM VP Digital Output Systems

A digital output module failure rarely occurs in isolation. In most CENTUM VP installations, the NFDV561-P00 operates within a tightly integrated I/O nest alongside multiple interdependent components. A disciplined preventive maintenance (PM) program should treat the entire I/O subsystem as a unit — not just the individual card.

During scheduled shutdowns or annual turnarounds, maintenance engineers should inspect the NFDV561-P00 alongside the NFDV141-P00 digital input module that feeds status feedback from the same field devices. A DO module that commands a valve open must be paired with a healthy DI module confirming the valve position — if either fails, the control loop loses integrity. Both should be tested and, where age or thermal stress is evident, replaced as a pair.

The NFBU100-S00 field control unit (FCU) base unit and the NFCP100-S00 field control processor are the upstream components that communicate with the NFDV561-P00 over the internal V-net/IP or ESB bus. If the DO module is showing intermittent faults or communication errors, the FCU base and processor card should be inspected for firmware currency and connector integrity before condemning the I/O card itself.

Power distribution to the I/O nest is supplied through the NFPS100-S00 power supply module. Voltage sag or ripple at the nest level is a common root cause of spurious DO channel trips. During any corrective maintenance event involving the NFDV561-P00, the power supply module output voltage should be verified under load. Stocking a spare NFPS100-S00 alongside the NFDV561-P00 is strongly recommended for facilities with aging CENTUM VP cabinets.

Field wiring termination is handled through the NFTB141-S00 terminal board or equivalent marshalling terminal assemblies. Loose terminations, corroded screw terminals, or degraded cable insulation at the terminal board are frequently misdiagnosed as DO module failures. A thorough PM inspection should include torque verification on all terminal screws and insulation resistance testing on field cables connected to the NFDV561-P00 output channels.

For facilities managing CENTUM VP systems alongside legacy CENTUM CS 3000 infrastructure, the AMN11 and AMN21 I/O modules from the CS 3000 series may still be in service in adjacent control cabinets. Maintaining cross-platform spare coverage — including both CENTUM VP NFDV5xx series cards and CS 3000 AMN-series modules — reduces the risk of a single-point spare shortage during a multi-system outage event.

Communication health between the FCS and the operator station (HIS) depends on the integrity of the ESB bus coupler module and the V-net optical fiber interface cards. If the NFDV561-P00 is reporting communication faults rather than output faults, the network layer — including fiber patch cables, optical transceivers, and bus coupler cards — should be inspected as part of the same maintenance event.

Finally, the YOKOGAWA STARDOM FCN/FCJ autonomous controller is increasingly deployed as a remote I/O gateway or standalone controller in satellite skids connected to CENTUM VP host systems. If your facility uses FCN/FCJ nodes, maintaining spare NX-D15/D25 digital output modules for those nodes in parallel with CENTUM VP spares ensures comprehensive coverage across your entire distributed control architecture.

Strategic Replacement Solutions

The NFDV561-P00 is a direct replacement for any CENTUM VP FCS installation using the same I/O nest slot designation. No hardware jumper changes, no software tag reassignment, and no FCS download is required when replacing a failed module with an identical part number — the FCS automatically recognizes the new card upon insertion and resumes normal operation within seconds. This plug-and-play replacement capability is one of the key engineering advantages of the CENTUM VP modular architecture and is the primary reason why stocking an exact-match spare is always preferable to sourcing a substitute.

For facilities where the NFDV561-P00 has reached end-of-production status or where lead times from the OEM exceed acceptable downtime windows, TOPNLMS maintains verified stock of original YOKOGAWA modules sourced through authorized industrial channels. Each unit undergoes functional testing prior to shipment, and all modules are shipped with full traceability documentation. The 12-month warranty covers both early-life failures and latent defects identified during commissioning.

Facilities transitioning from CENTUM CS 3000 to CENTUM VP should note that the NFDV5xx series I/O cards are not backward-compatible with CS 3000 I/O nests. Migration projects should include a full I/O card audit and a phased spare procurement plan that accounts for both legacy and new-platform modules during the transition period. TOPNLMS can support mixed-platform spare procurement to simplify this process.

Support FAQ

Q1: Is the NFDV561-P00 compatible with all CENTUM VP FCS revisions?
The NFDV561-P00 is designed for the CENTUM VP platform and is compatible with standard FCS I/O nest configurations. Compatibility with specific FCS hardware revisions or firmware versions should be verified against the YOKOGAWA CENTUM VP hardware compatibility matrix. TOPNLMS recommends confirming your FCS revision before ordering if you are unsure. Contact us at [email protected] for pre-purchase compatibility verification.

Q2: What testing is performed before shipment?
Every NFDV561-P00 unit shipped by TOPNLMS undergoes functional verification testing prior to dispatch. This includes channel-level output continuity checks and power-on self-test validation. A test report is available upon request. All units are shipped in anti-static packaging with physical protection appropriate for international freight.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified environmental parameters. Warranty claims are processed via email to [email protected] with a fault description and photographic evidence of the defect.

Q4: How should I manage spare lifecycle for aging CENTUM VP systems?
For CENTUM VP systems more than 8 years into service, we recommend a proactive last-time-buy (LTB) strategy for critical I/O modules including the NFDV561-P00. As YOKOGAWA progressively transitions its installed base toward CENTUM VP R6 and next-generation platforms, availability of legacy I/O cards from OEM channels will tighten. Procuring a 2–3 unit buffer stock of the NFDV561-P00 now — alongside companion modules such as the NFDV141-P00 and NFPS100-S00 — provides a 5–10 year maintenance runway without exposure to spot-market premiums or extended lead times.
