Yokogawa NFAI143-S50 S1 Replacement for CENTUM VP

Product Overview

Yokogawa NFAI143-S50 S1 Replacement for CENTUM VP: Seamless Migration & Smooth Transition

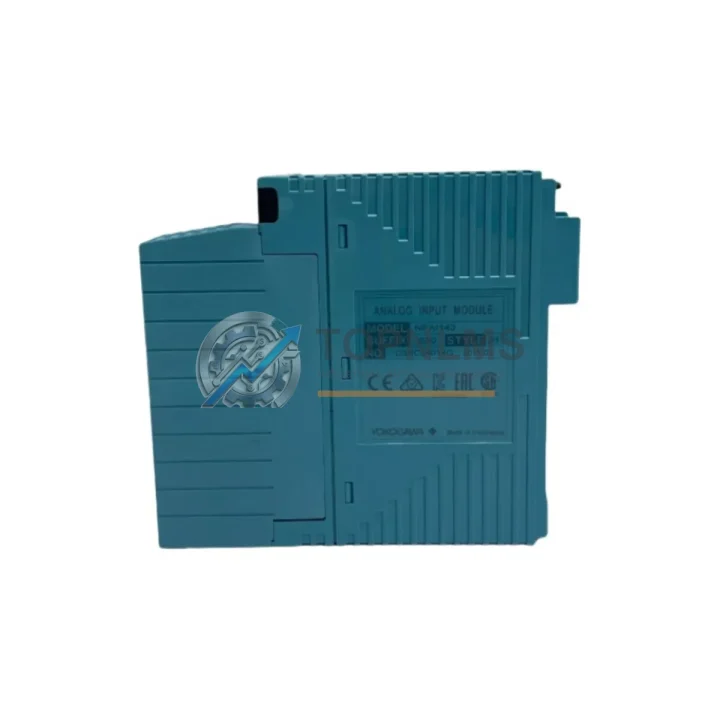

The Yokogawa NFAI143-S50 S1 is a 16-channel analog input module designed for the CENTUM VP Distributed Control System platform. As aging CENTUM CS 3000 and early CENTUM VP installations reach end-of-life, plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that eliminate costly re-engineering. The NFAI143-S50 S1 is the industry-proven answer — offering direct slot-compatible installation, identical field wiring termination, and full compatibility with existing CENTUM VP engineering databases, function blocks, and HIS operator station configurations.

Whether you are retiring a legacy NFAI143-S00 or an earlier NFAI135 analog input card, the NFAI143-S50 S1 preserves your existing 4–20 mA field wiring without modification. The module supports HART pass-through communication, enabling simultaneous process control and asset management through the same two-wire loop — a critical advantage when integrating with PRM (Plant Resource Manager) for predictive maintenance workflows. No re-termination at the KFCS or LFCS2 field control station is required, dramatically reducing scheduled maintenance window duration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP analog input migration rarely involves a single module swap. In practice, field engineers coordinate the NFAI143-S50 S1 replacement alongside several interconnected components to ensure system integrity. The NFAI143-S50 S1 installs directly into the existing ANB10D or ANB11D I/O nest, which may itself be due for inspection or replacement if corrosion or connector wear is present after years of continuous operation.

For sites running mixed analog and digital I/O, the upgrade is often paired with a NFDI141-S50 digital input module or NFDO141-S50 digital output module to standardize the entire I/O nest to the current S50 generation — simplifying spare parts inventory and reducing the number of unique module types held in the plant warehouse. Where HART device management is a priority, the NFAI143-S50 S1 works in conjunction with the Yokogawa PRM R3.x asset management server, which communicates over the existing Vnet/IP backbone without additional hardware.

Power distribution within the field control station is handled by the NFPS141-S50 power supply module, and sites upgrading multiple I/O nests simultaneously should verify that the existing KFCS2 or LFCS2 controller has sufficient I/O capacity and firmware revision to support the S50-generation modules. In many brownfield projects, a NFCP701 or NFCP702 processor card firmware update is performed concurrently to unlock enhanced diagnostics available with the S50 I/O family.

For sites where field junction boxes use Yokogawa JBSX or third-party marshalling panels, the existing multi-pair cable runs and IS barriers remain fully compatible — no changes to the intrinsic safety design are required. Engineers integrating the NFAI143-S50 S1 into a control loop that feeds a Yokogawa CENTUM VP HIS (Human Interface Station) will find that existing faceplate graphics, trend displays, and alarm configurations load without modification after the module swap and FCS restart.

Retrofit Guidance FAQ

Q: Do I need to re-download the FCS project after swapping to NFAI143-S50 S1?
A: In most cases, no. The NFAI143-S50 S1 is recognized by the CENTUM VP FCS builder as a compatible replacement for the S00 generation. A partial download of the I/O assignment section is sufficient; a full FCS re-download is not required, minimizing process interruption.

Q: Is the field wiring termination identical?
A: Yes. The NFAI143-S50 S1 uses the same terminal block connector interface as the NFAI143-S00. Existing 4–20 mA field cables connect directly without modification or re-labeling.

Q: Can I use NFAI143-S50 S1 in a CENTUM CS 3000 system?
A: The NFAI143-S50 S1 is designed and validated for CENTUM VP. For CS 3000 installations, consult the Yokogawa compatibility matrix; a system migration to CENTUM VP may be the recommended path for long-term supportability.

Q: What communication protocol does the module use internally?
A: The module communicates over Yokogawa’s proprietary Vnet/IP real-time control network, which is the standard internal bus for all CENTUM VP field control stations. No additional communication hardware is required.

Q: How much physical space does the module require?
A: The NFAI143-S50 S1 occupies a single slot in the standard CENTUM VP I/O nest (ANB10D/ANB11D). Its form factor is identical to the module it replaces, so no cabinet re-layout or additional DIN rail space is needed.

Q: What is the lead time and shipping arrangement?
A: Stock is held in Xiamen, China. Orders are typically dispatched within 1–3 business days. International express freight (DHL / FedEx) is available to minimize plant downtime. Pre-shipment functional testing is performed on every unit.

Warranty Assurance

Every Yokogawa NFAI143-S50 S1 supplied by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional inspection covering power-on self-test, channel-by-channel signal verification, and communication bus handshake confirmation. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; it does not cover physical damage caused by incorrect installation or overvoltage events.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration to support customs clearance and internal audit requirements. Bulk orders for plant-wide I/O nest standardization projects are welcome — contact us for volume pricing and staggered delivery scheduling.
