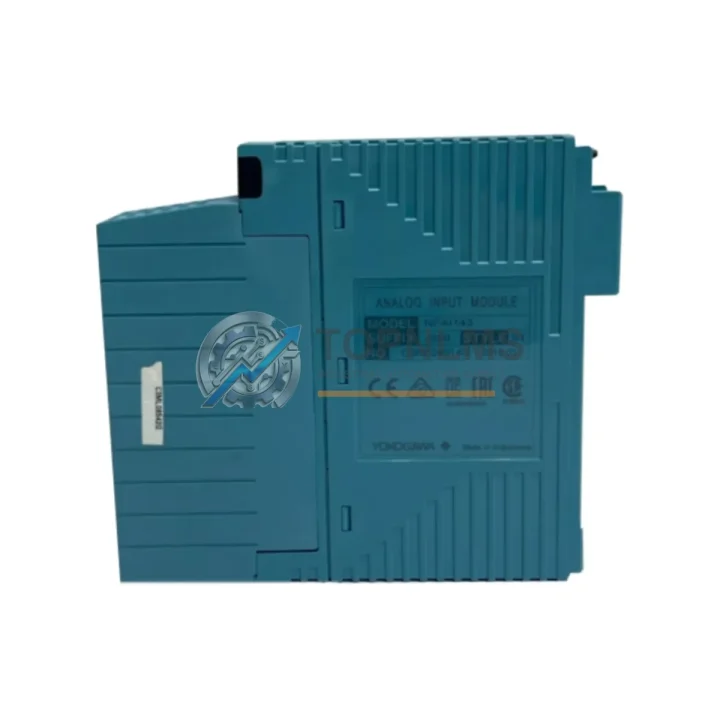

YOKOGAWA NFAI143-H50 Ruggedized Analog Input Module

Product Overview

YOKOGAWA NFAI143-H50 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The YOKOGAWA NFAI143-H50 is a 4-channel analog input module engineered for the CENTUM VP Distributed Control System (DCS) — one of the most trusted process automation platforms deployed across critical infrastructure worldwide. Designed to operate continuously in demanding industrial environments, the NFAI143-H50 delivers precise signal acquisition, exceptional electromagnetic interference (EMI) resistance, and long-term operational stability in conditions where standard instrumentation would fail.

Whether installed in a petrochemical refinery, a coal-fired power plant, a municipal water treatment facility, or a high-temperature metallurgical furnace, the NFAI143-H50 maintains measurement accuracy and system integrity without compromise. Its ruggedized design addresses the full spectrum of industrial hazards: high ambient temperatures, humidity fluctuations, airborne particulates, mechanical vibration, and high-voltage transients — making it a cornerstone component for any safety-critical control architecture.

Rugged Specifications Table

Comprehensive Protection Solutions

In a modern DCS architecture, the NFAI143-H50 does not operate in isolation — it is one node in a tightly integrated control ecosystem. At TOPNLMS, we supply the full range of CENTUM VP system components to support complete cabinet builds and field replacements. The NFAI143-H50 works in direct coordination with the YOKOGAWA NFDO522-H50 digital output module, which handles discrete actuator commands on the same backplane. For power distribution within the control cabinet, the YOKOGAWA NFPS122-H50 power supply module provides stable, redundant DC power to all I/O modules, ensuring that analog signal integrity is never compromised by voltage fluctuations.

Signal conditioning upstream of the NFAI143-H50 is typically handled by YOKOGAWA’s YTMX580 temperature transmitters or EJA110E differential pressure transmitters, both of which output 4–20 mA signals fully compatible with the NFAI143-H50’s input range. For installations requiring HART pass-through communication, the module integrates seamlessly with YOKOGAWA’s HART multiplexer infrastructure, enabling device diagnostics without interrupting process control.

In safety-instrumented systems (SIS), the NFAI143-H50 is often deployed alongside the YOKOGAWA ProSafe-RS safety controller, where it feeds validated analog measurements into the safety logic solver. The NFSV122-H50 communication module handles V-net/IP traffic management across the CENTUM VP domain, while the NFCP522-H50 field control station (FCS) processor executes the control strategy. For terminal connectivity, YOKOGAWA’s TB820V terminal board provides the physical wiring interface between field cables and the NFAI143-H50, with clearly labeled screw terminals rated for industrial cable gauges.

Where relay-based output isolation is required downstream, the YOKOGAWA NFDO532-H50 relay output module provides dry-contact switching for alarm annunciators and motor starters. All of these components share the same CENTUM VP backplane architecture, meaning that the NFAI143-H50 can be hot-swapped during live plant operation — a critical capability for continuous production environments where scheduled downtime is not an option.

Application in Critical Infrastructure

Oil & Gas Upstream and Midstream: In offshore platforms and onshore gathering stations, the NFAI143-H50 monitors pressure, temperature, and flow transmitters across wellhead control panels and pipeline SCADA systems. Its galvanic isolation prevents ground loops caused by long cable runs in electrically noisy environments, while its sealed backplane connector resists corrosive salt-air ingress. Operators rely on its 16-bit resolution to detect subtle process deviations before they escalate into safety events.

Power Generation: Coal, gas, and hydroelectric power plants deploy the NFAI143-H50 within turbine control systems and boiler management loops. The module’s compliance with IEC 61000 EMI standards is essential in generator halls where high-frequency switching transients from variable-frequency drives (VFDs) and large motor starters can corrupt analog signals in lesser-grade modules. Continuous 24/7 operation over multi-year maintenance cycles demands the kind of thermal stability that YOKOGAWA’s CENTUM VP platform is specifically engineered to deliver.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the NFAI143-H50 to monitor dissolved oxygen sensors, pH transmitters, turbidity analyzers, and chemical dosing flow meters. The module’s humidity tolerance (up to 95% RH non-condensing) makes it suitable for pump stations and wet-well environments where condensation is a persistent challenge. Its compatibility with CENTUM VP’s redundant controller architecture ensures that a single module failure does not interrupt treatment operations.

Metallurgy and Heavy Industry: In electric arc furnaces, rolling mills, and smelting operations, the NFAI143-H50 acquires thermocouple and RTD signals from high-temperature zones, feeding real-time data to the CENTUM VP FCS for closed-loop temperature control. Mechanical vibration from heavy machinery — a common cause of connector fatigue in lesser modules — is mitigated by the NFAI143-H50’s IEC 60068-2-6 vibration-rated design and robust backplane locking mechanism.

Chemical and Pharmaceutical Processing: Batch and continuous chemical reactors require precise analog measurement of pressure, level, and temperature to maintain product quality and regulatory compliance. The NFAI143-H50’s channel-to-channel isolation prevents cross-talk between signals from different process loops, ensuring that a fault in one measurement circuit does not propagate to adjacent channels — a critical requirement in multi-product facilities operating under GMP or ATEX zone classifications.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All NFAI143-H50 units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and firmware-related malfunctions. Each unit undergoes pre-shipment functional testing — including analog input accuracy verification across all 4 channels, isolation resistance measurement, and backplane communication handshake validation. A test report is available upon request. In the event of a warranty claim, TOPNLMS provides advance replacement or repair at no additional cost, with return logistics coordinated by our technical team.

Q2: How do you verify compatibility with my existing CENTUM VP system version?
The NFAI143-H50 is compatible with CENTUM VP R4.x, R5.x, and R6.x releases. Compatibility with CENTUM CS 3000 is achievable via YOKOGAWA’s published adapter kits. Before shipment, our technical team cross-references your system’s FCS firmware version and I/O bus configuration against YOKOGAWA’s official compatibility matrix. If you provide your system’s engineering data package (EDP) or FCS model number, we can confirm slot compatibility and any required firmware prerequisites at no charge.

Q3: What pre-shipment testing is performed on each unit?
Every NFAI143-H50 unit is powered on and subjected to a full functional test sequence prior to dispatch. This includes: (1) channel-by-channel analog input accuracy test at 4 mA, 12 mA, and 20 mA reference points; (2) isolation resistance test between channels and between channel and chassis ground; (3) backplane communication test confirming V-net/IP registration; and (4) visual inspection for connector pin integrity and label legibility. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained for 3 years.

Q4: Can TOPNLMS support long-term supply continuity for this module?
Yes. TOPNLMS maintains a dedicated inventory buffer for high-demand CENTUM VP I/O modules, including the NFAI143-H50, to support both emergency replacement orders and planned maintenance schedules. We work directly with authorized YOKOGAWA distribution channels and maintain relationships with certified secondary-market suppliers to ensure supply continuity even for modules that have reached end-of-active-production status. For customers with multi-year maintenance contracts or large installed bases, we offer reserved stock agreements and priority fulfillment SLAs. Contact our team to discuss your site’s specific spare-parts strategy.
