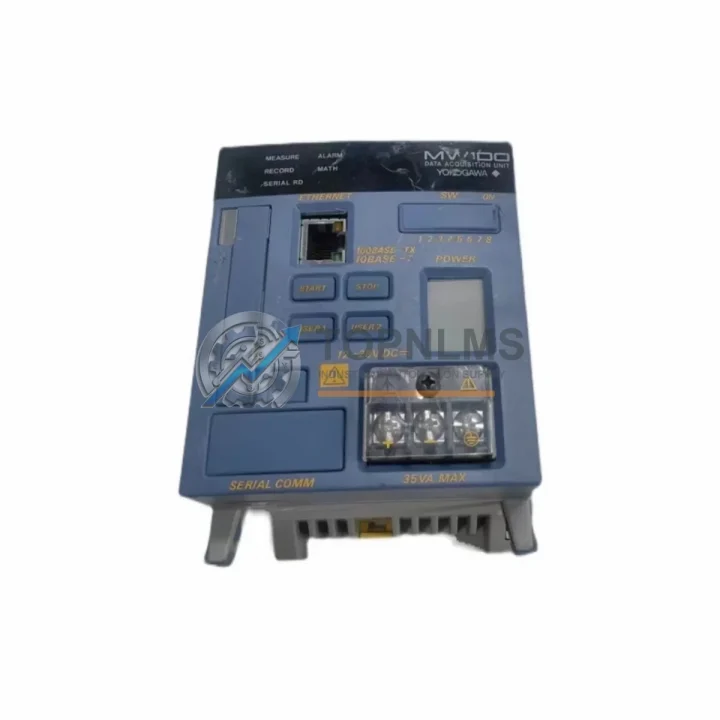

YOKOGAWA MW100-E-3W-M1/S8 Ruggedized DAQ Module for Harsh Environments

Product Overview

YOKOGAWA MW100-E-3W-M1/S8 Ruggedized DAQ Module: Industrial Resilience for Harsh Environments

The YOKOGAWA MW100-E-3W-M1/S8 is a field-proven, Ethernet-based data acquisition module engineered for uninterrupted operation in the most demanding industrial environments. As a core component of YOKOGAWA’s MW100 Series, this 8-slot DAQ module delivers exceptional signal integrity, robust EMI resistance, and stable multi-channel data logging in applications where failure carries operational, financial, and safety consequences. From high-temperature furnace monitoring and high-humidity coastal processing plants to vibration-intensive mining operations and dust-laden cement production lines, the MW100-E-3W-M1/S8 maintains measurement accuracy and communication stability without compromise.

Designed to integrate seamlessly into modern industrial control architectures, this module supports Ethernet connectivity for real-time data transmission to SCADA systems, DCS platforms, and historian servers. Its modular 8-slot chassis accepts a wide range of YOKOGAWA MW100 plug-in input modules, enabling flexible configuration for thermocouple, RTD, DC voltage, DC current, and pulse signal acquisition — all within a single compact unit. For B2B procurement teams managing critical infrastructure, the MW100-E-3W-M1/S8 represents a trusted, long-lifecycle backbone component backed by TOPNLMS’s in-stock availability, pre-shipment testing, and 12-month warranty commitment.

Rugged Specifications Table

Comprehensive Protection Solutions

The MW100-E-3W-M1/S8 is most effective when integrated into a well-engineered control system architecture. In a typical heavy industrial control cabinet, this DAQ module works in concert with the YOKOGAWA MW100-PM16 power module to ensure stable, conditioned power delivery even under fluctuating grid conditions. Signal inputs are routed through MW100-U10 universal input modules, which handle thermocouple and RTD channels with cold-junction compensation and high common-mode rejection — critical in environments with strong electromagnetic interference generated by variable frequency drives (VFDs), motor starters, and high-current bus bars.

For process control integration, the MW100-E-3W-M1/S8 communicates upstream with YOKOGAWA CENTUM VP DCS controllers or third-party PLC systems via Modbus TCP/IP, enabling seamless data handoff to the plant historian or SCADA layer. In safety-critical loops, the acquired measurement data feeds into YOKOGAWA ProSafe-RS safety controllers, where it supports SIL-rated interlock logic for emergency shutdown (ESD) and safety instrumented systems (SIS). Secure field wiring termination is achieved through YOKOGAWA TB series terminal modules, which reduce the risk of loose connections under sustained mechanical vibration.

On the power distribution side, industrial-grade 24 VDC DIN rail power supplies provide the stable auxiliary power required by the MW100 chassis and its plug-in modules. Surge protection devices (SPDs) installed at the cabinet entry point guard against transient overvoltages from lightning strikes or switching surges, protecting the MW100-E-3W-M1/S8 and connected field instrumentation. For applications requiring network segmentation, the module’s Ethernet port connects to an industrial-grade managed Ethernet switch with VLAN capability, ensuring data integrity and cybersecurity compliance across the plant network.

In multi-zone monitoring installations, the MW100-E-3W-M1/S8 is frequently paired with additional MW100 expansion units to scale channel count without adding architectural complexity. Relay output modules within the same cabinet provide alarm annunciation and interlock outputs, while YOKOGAWA YS1000 series single-loop controllers handle local PID control for critical process variables — all sharing the same Ethernet backbone for unified data visibility and centralized alarm management. The combination of these components within a single control cabinet creates a layered, redundant protection architecture that meets the reliability expectations of continuous-process industries.

Application in Critical Infrastructure

In oil and gas upstream operations, the MW100-E-3W-M1/S8 is deployed in wellhead monitoring panels and compressor station control rooms, where it continuously logs temperature, pressure transmitter signals, and flow meter outputs. Its ability to operate reliably in ambient temperatures exceeding 45°C — common in Middle Eastern and Southeast Asian field installations — makes it a preferred choice for remote monitoring applications where maintenance access is infrequent and uptime is non-negotiable. The module’s Modbus TCP/IP interface allows direct integration with existing SCADA infrastructure without requiring proprietary communication gateways.

In coal-fired and gas-fired power generation plants, this module monitors boiler flue gas temperatures, steam header pressures, and turbine bearing temperatures in real time. The acquired data is transmitted via Ethernet to the plant DCS, where it feeds combustion optimization algorithms and predictive maintenance dashboards. The MW100-E-3W-M1/S8’s high noise immunity ensures accurate readings even in the presence of high-voltage switchgear and large rotating machinery operating in close proximity.

In water and wastewater treatment facilities, the module acquires pH, dissolved oxygen, turbidity, and flow signals from field transmitters distributed across aeration basins, clarifiers, and chemical dosing stations. Its compact form factor and panel-mount design make it ideal for the space-constrained control rooms typical of municipal water infrastructure, while its Modbus TCP/IP interface enables direct integration with multi-stage SCADA systems managing the full treatment process.

In metallurgical and steel production environments, where ambient temperatures near furnaces spike dramatically and electromagnetic interference from induction heating equipment is severe, the MW100-E-3W-M1/S8 provides stable thermocouple signal acquisition for slab temperature profiling and heat treatment cycle monitoring. Its robust differential input design rejects common-mode noise, delivering clean, accurate data to the process control system even under the harshest electrical conditions found in heavy industry. In mining and mineral processing operations, the module’s resistance to dust ingress and vibration — when installed in properly sealed control enclosures — supports continuous conveyor monitoring, crusher load measurement, and flotation cell process control without signal degradation.

Security & Quality FAQ

Q1: Does the MW100-E-3W-M1/S8 come with a warranty, and what does it cover?
Yes. Every MW100-E-3W-M1/S8 unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. All units undergo functional testing and calibration verification prior to shipment. If a unit fails within the warranty period, TOPNLMS provides replacement or repair support with priority handling to minimize your facility’s downtime exposure.

Q2: How is each unit tested before shipment?
Each MW100-E-3W-M1/S8 is powered on and subjected to a full functional test, including Ethernet communication verification, channel input simulation across all 8 slots, and power supply stability checks. Units that do not pass our pre-shipment inspection protocol are quarantined and not dispatched. A test report is available upon request for critical procurement applications requiring documented quality evidence.

Q3: Is this module compatible with third-party PLC and DCS systems?
Yes. The MW100-E-3W-M1/S8 supports Modbus TCP/IP, a universally adopted industrial protocol compatible with Siemens S7 series PLCs, Rockwell Automation ControlLogix systems, Schneider Electric Modicon PLCs, ABB AC500 controllers, and most major DCS platforms. Integration requires configuring the module’s IP address and Modbus register map within the host controller’s communication settings — a standard procedure for any qualified automation engineer.

Q4: Can TOPNLMS support long-term supply and replacement needs for this model?
Absolutely. TOPNLMS maintains stock of MW100 series modules and associated plug-in input cards to support both immediate replacement needs and planned maintenance programs. We understand that industrial facilities require consistent, long-term parts availability to minimize unplanned downtime and avoid costly production interruptions. Contact our team to discuss blanket order arrangements, lead time commitments, and technical support tailored to your specific application and maintenance schedule.
