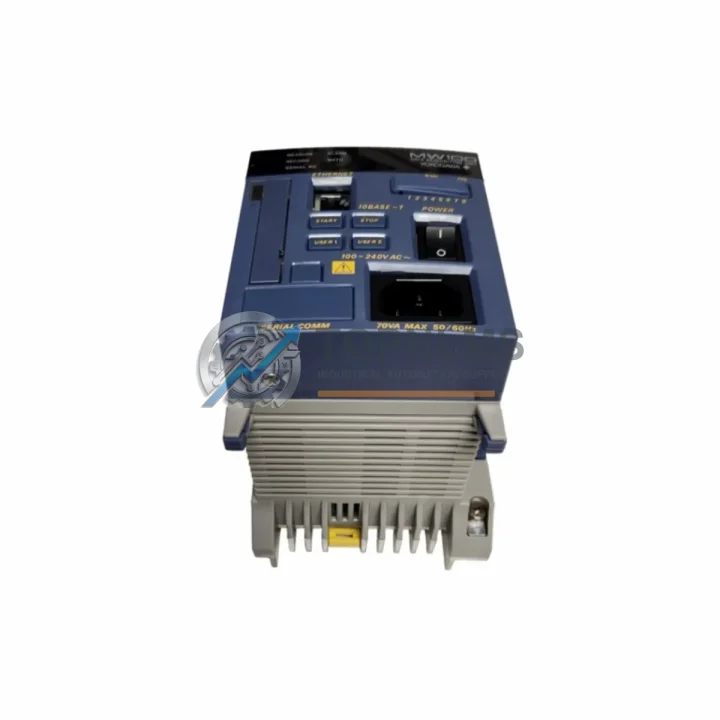

YOKOGAWA MW100-E-3W/C2 Original Industrial Spare MW100 Compatible

Product Overview

YOKOGAWA MW100-E-3W/C2 Original Industrial Spare — MW100 DAQ Series System Stability & Maintenance Value

The YOKOGAWA MW100-E-3W/C2 is an original digital output module engineered for the MW100 Data Acquisition Unit (DAQ) series — a platform widely deployed across process manufacturing, utilities, environmental monitoring, and precision industrial measurement applications. As a genuine YOKOGAWA spare part, the MW100-E-3W/C2 delivers the signal integrity, channel isolation, and output reliability that maintenance engineers depend on when uptime is non-negotiable.

In industrial facilities where MW100 DAQ systems form the backbone of data logging, process monitoring, and alarm management, the availability of a verified replacement digital output module is a critical factor in minimizing mean time to repair (MTTR). Whether you are managing a planned shutdown, responding to an unscheduled fault, or building a preventive maintenance inventory, stocking the MW100-E-3W/C2 ensures your control and monitoring infrastructure can be restored to full specification without delay.

Critical Technical Specs

Preventive Maintenance Strategy

A digital output module failure in an MW100 DAQ system rarely occurs in isolation. Output channel degradation is frequently preceded by — or concurrent with — issues in adjacent modules and shared infrastructure. A disciplined preventive maintenance approach treats the MW100-E-3W/C2 replacement as the starting point for a broader system health review.

During any scheduled inspection or corrective maintenance event involving the MW100-E-3W/C2, maintenance teams should simultaneously verify the condition of the MW100-E-3W/C1 analog input module and MW100-E-3W/V1 voltage input module, as these modules share the same backplane bus and power distribution within the MW100 mainframe. A degraded power supply rail can accelerate output module failure, making inspection of the MW100-M mainframe power supply unit an essential parallel task.

Signal wiring integrity is equally critical. The MW100 terminal block assemblies and field wiring connectors should be inspected for loose terminations, corrosion, and insulation breakdown — particularly in high-humidity or chemically aggressive environments. Where the MW100 system interfaces with field devices via relay-switched outputs, the associated intermediate relay modules (such as YOKOGAWA-compatible DIN-rail relay bases) should be tested for contact resistance and coil response time.

For facilities running MW100 DAQ systems in conjunction with YOKOGAWA DCS platforms such as the CENTUM VP or ProSafe-RS safety instrumented system, the communication link between the MW100 and the host controller deserves attention. The MW100 Ethernet communication module and associated network switches should be verified for packet loss and latency, as communication faults can mask output module errors and complicate fault diagnosis.

Facilities that operate MW100 systems alongside YOKOGAWA WT series power analyzers or DL series oscilloscopes for quality assurance measurement should also review the calibration status of those instruments during the same maintenance window, ensuring that the digital output signals from the MW100-E-3W/C2 are validated against a known reference. Additionally, where the MW100 DAQ system feeds data to a SCADA historian or DCS data server, verifying the integrity of the OPC-DA or Modbus TCP data path ensures that restored output module functionality is correctly reflected in the supervisory layer.

Stocking a minimum of one spare MW100-E-3W/C2 alongside one spare MW100-E-3W/C1 and one spare MW100-E-3W/V1 represents a cost-effective buffer inventory strategy for facilities with three or more MW100 mainframes in continuous operation.

Strategic Replacement Solutions

The MW100-E-3W/C2 is a direct plug-in replacement for failed or end-of-life digital output modules within the MW100 DAQ platform. Because the MW100 series uses a standardized module form factor and backplane interface, replacement requires no firmware reconfiguration of the mainframe — the host unit automatically recognizes the new module upon insertion, dramatically reducing restoration time compared to legacy wired I/O systems that require manual re-termination and loop testing.

For facilities managing aging MW100 installations where original modules are no longer available through standard distribution channels, sourcing a genuine YOKOGAWA MW100-E-3W/C2 from a verified industrial spare parts supplier eliminates the risk of counterfeit or non-compliant substitutes that can introduce measurement errors, communication faults, or safety hazards. Original modules maintain full compatibility with YOKOGAWA’s MW100 configuration software (MXLogger, DAQSTANDARD), preserving existing channel mapping, alarm setpoints, and data logging configurations without modification.

In brownfield modernization projects where the MW100 DAQ system is being retained as a field data concentrator while the supervisory layer is upgraded, the MW100-E-3W/C2 extends the operational life of the existing hardware investment, deferring capital expenditure on full system replacement. This approach is particularly valuable in regulated industries — pharmaceutical, food and beverage, water treatment — where revalidation of a replacement system carries significant cost and schedule risk.

Support FAQ

Q1: What is the warranty coverage for the MW100-E-3W/C2?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each module undergoes pre-shipment functional testing to verify output channel operation, backplane interface integrity, and physical condition before dispatch.

Q2: How do I verify compatibility before installation?
The MW100-E-3W/C2 is designed exclusively for the YOKOGAWA MW100 DAQ mainframe platform. Confirm your mainframe model is MW100-M and that an available expansion slot is present. No firmware update is required — the MW100 mainframe performs automatic module recognition. If you are uncertain about slot compatibility or system configuration, contact our technical team with your mainframe serial number and current module configuration for pre-purchase verification.

Q3: What is the recommended inventory strategy for MW100 digital output modules?
For facilities operating three or more MW100 mainframes in continuous or critical process applications, we recommend maintaining a minimum buffer stock of one MW100-E-3W/C2 per site. For high-criticality applications (continuous emissions monitoring, safety-related data logging), a two-unit buffer per site is advisable. Modules stored in original packaging in a controlled environment (15–25°C, <60% RH) retain full functionality for a minimum of five years.

Q4: Can the MW100-E-3W/C2 be replaced on-site without specialist tools?
Yes. The MW100 module design supports field replacement without specialist tooling. Power down the MW100 mainframe (or follow your site’s hot-swap procedure if applicable), remove the failed module, insert the replacement MW100-E-3W/C2, and restore power. The mainframe will automatically re-initialize the module. Verify output channel status via the MW100 front panel display or connected configuration software before returning the system to service. Full replacement typically takes under 15 minutes for a trained maintenance technician.
