Yokogawa MRI-214*A Replacement for CENTUM VP CS 3000 DCS: Seamless Transition & Legacy System Upgrade

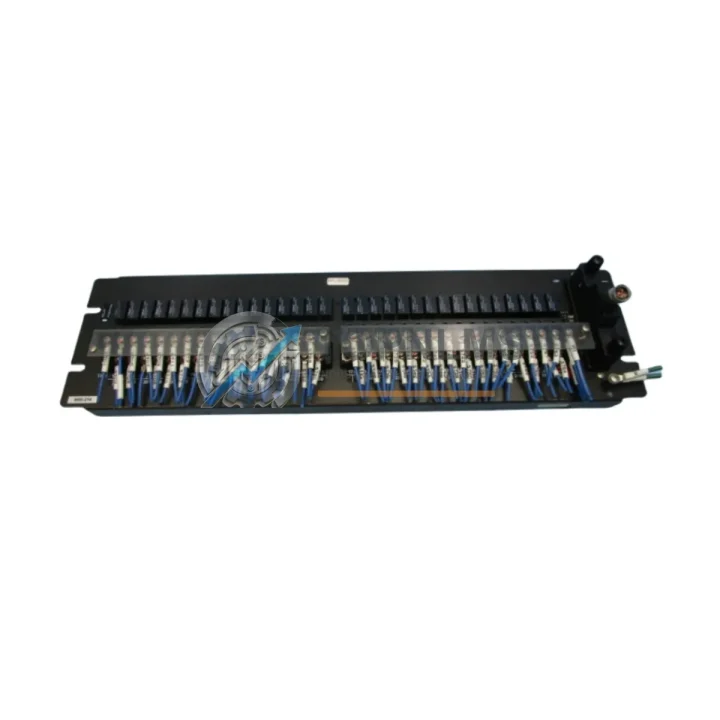

The Yokogawa MRI-214*A is a relay input board designed for use within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms — two of the most widely deployed process automation architectures in the petrochemical, power generation, pulp & paper, and pharmaceutical industries. As Yokogawa progressively phases out legacy CS 3000 hardware and transitions its installed base toward CENTUM VP and the next-generation CENTUM VP R6, many facilities are facing the challenge of sourcing reliable, tested replacement modules to maintain system continuity without committing to a full DCS migration.

TOPNLMS supplies the MRI-214*A as a direct replacement module, fully tested and verified for compatibility with existing CENTUM VP and CS 3000 field control stations (FCS). Each unit is inspected prior to dispatch and ships with a 12-month warranty, giving procurement engineers and plant maintenance teams the confidence to order with minimal risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the MRI-214*A is rarely an isolated task. In most CENTUM VP and CS 3000 installations, the relay input board operates as part of a tightly integrated field control station that includes multiple interdependent components. A successful upgrade or emergency replacement typically involves verifying the condition of adjacent modules and ensuring the broader system architecture remains stable.

In a typical CS 3000 FCS cabinet, the MRI-214*A sits alongside analog input modules such as the AAI141-S or AAI143-S, which handle 4–20 mA process signals from transmitters in the field. If the relay input board has failed due to age or environmental stress, it is prudent to inspect these analog input cards at the same time, as they share the same backplane and power distribution. Similarly, the AMM12W or AMM22W multi-point monitor modules — used for motor control and status monitoring — are frequently found in the same rack and may require attention during a planned maintenance window.

The FCS itself relies on a CP451-10 or CP461-50 field control processor to execute the control strategy. When performing a module swap, it is important to confirm that the FCS firmware version is compatible with the replacement MRI-214*A hardware revision. In most cases, no firmware update is required, but this should be verified in the Yokogawa CENTUM VP engineering environment (CAMS for HIS) before the module is inserted into the live rack.

Field wiring connects to the MRI-214*A through a dedicated field terminal assembly. The TB801 or equivalent FTA remains in place during the board swap, meaning field cables do not need to be disconnected. This is one of the key advantages of the CENTUM VP modular architecture — the FTA acts as a wiring buffer, allowing the I/O board to be replaced without disturbing field instrument loops. Maintenance teams should confirm FTA terminal labeling against the as-built loop drawings before powering the replacement module.

For facilities that are simultaneously upgrading their human interface stations, the HIS0183-50 HMI workstation or its successor running CENTUM VP R6 can be integrated without changes to the FCS I/O configuration, provided the system domain and FCS node addresses are preserved. Communication between the HIS and FCS travels over the Vnet/IP control network, which is fully compatible with both CS 3000 and CENTUM VP hardware generations — no network reconfiguration is needed when replacing individual I/O modules.

In installations where the MRI-214*A monitors motor starter feedback or valve position signals, the replacement process should be coordinated with the instrument and electrical teams to ensure that relay contact states are correctly initialized after the module is powered up. The CENTUM VP FCS will automatically re-scan the I/O map upon module insertion, and the engineering database does not require modification for a like-for-like replacement.

For sites planning a phased migration from CS 3000 to CENTUM VP, replacing aging I/O modules such as the MRI-214*A with genuine Yokogawa hardware extends the operational life of the existing FCS infrastructure by several years, deferring the capital expenditure of a full DCS migration while maintaining system reliability and vendor support continuity.

Retrofit Guidance FAQ

Q: Do I need to rewire the field terminals when replacing the MRI-214*A?
A: No. The field terminal assembly (FTA) remains connected to the field cables throughout the swap. Only the I/O board itself is removed and replaced. Confirm FTA model compatibility before ordering.

Q: Will the CENTUM VP engineering database need to be updated after replacement?
A: For a like-for-like MRI-214*A replacement, no database changes are required. The FCS will recognize the module automatically upon insertion. If the hardware revision differs, verify compatibility in the CENTUM VP system generation tool.

Q: Is the MRI-214*A compatible with both CS 3000 and CENTUM VP FCS generations?
A: Yes, the MRI-214*A is designed for use across both platforms. Confirm your FCS generation (CP451, CP461, or PFCS) and slot assignment against the Yokogawa hardware compatibility matrix before installation.

Q: Can this module be hot-swapped without shutting down the FCS?
A: Hot-swap capability depends on the FCS generation and redundancy configuration. Redundant FCS configurations (dual CP) generally support online module replacement. Simplex FCS configurations require a controlled shutdown. Consult your site safety procedures before proceeding.

Q: What communication protocol does the MRI-214*A use?
A: The module communicates via the internal FCS backplane bus — there is no external fieldbus or Ethernet interface on this board. No protocol configuration is required at the engineering station.

Q: How do I verify the module is functioning correctly after installation?
A: Use the CENTUM VP HIS diagnostic screens to confirm I/O module status. The FCS will report module health, channel status, and any hardware alarms within the system event log. Field loop checks should be performed to verify relay contact continuity.

Warranty Assurance

Every MRI-214*A unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional inspection to verify board integrity, connector condition, and basic electrical continuity. Units that do not meet our quality threshold are not shipped.

In the event of a dead-on-arrival (DOA) condition, TOPNLMS will arrange a replacement unit at no additional cost, subject to confirmation of the fault. Our after-sales response target is within 24 business hours of a warranty claim being raised. For time-critical plant situations, we recommend contacting us directly by phone or email to expedite the process.

We maintain stock of the MRI-214*A and related CENTUM VP / CS 3000 modules in our Xiamen warehouse, enabling fast dispatch to customers across Asia, the Middle East, Europe, and the Americas. Standard lead time for in-stock units is 3–7 business days depending on destination and shipping method selected at checkout.

For procurement teams requiring documentation, we can provide a packing list, commercial invoice, and certificate of conformance upon request. All units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

To place an order or request a quotation, contact our technical sales team:
📧 [email protected]
📞 +86 18359293191
